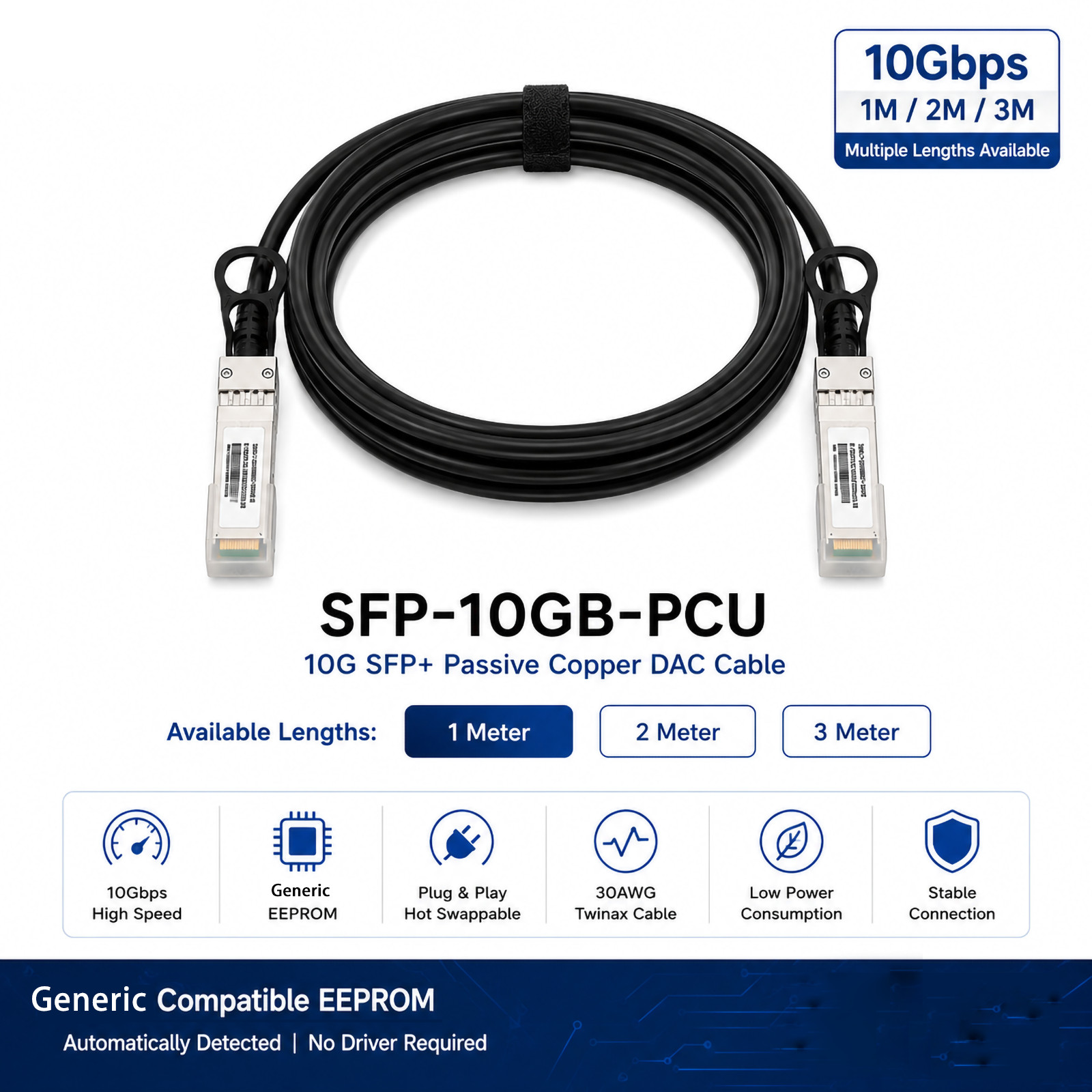

OUR OPTIONS 10G SFP+ Generic Passive DAC Twinax Cable For Intel X520 X710 1M 2M 3M ITEM DESCRIPTION

This 10G SFP+ Passive Direct Attach Copper (DAC) Twinax Cable uses Generic standard EEPROM coding on both connector ends.

It is primarily designed for white-label switches, servers, network adapters and other networking equipment that accepts standard or Generic-coded SFP+ DAC cables.

This cable is not programmed with an Intel-specific proprietary code. It may also work with selected non-encrypted Intel network adapters that accept standards-compliant Generic SFP+ DAC identification.

Ideal for short-distance connections between switches, servers, storage systems and network adapters, this passive DAC cable provides low latency, low power consumption and stable 10 Gigabit Ethernet transmission without requiring separate optical transceivers or fiber patch Generic standard EEPROM coding on both ends

• Designed for white-label and open-code networking equipment

• Supports 10 Gigabit Ethernet transmission

• SFP+ to SFP+ connector configuration

• Passive 30AWG Twinax copper cable

• Plug and Play on supported devices

• Low latency

• Low power consumption

• Stable short-distance signal transmission

• Black PVC round cable

• Metal connector housings

• Available in 1M, 2M and 3M Rate：10Gbps

Network Standard：10 Gigabit Ethernet

Connector Type：SFP+ to SFP+

Transmission Type：Passive Direct Attach Copper

EEPROM Coding：Generic Standard Code on Both Ends

Wire Gauge：30AWG

Cable Diameter：Approx. 4.2mm

Differential Impedance：100Ω ±5Ω

Minimum Bend Radius：Approx. 21mm / 5 × Cable Diameter

Typical Power Consumption：Less Than 0.5W

Operating Temperature：0°C to 70°C

Storage Temperature：-40°C to 85°C

Cable Jacket：Black PVC

Connector White-label Ethernet switches

• Generic standard-code network equipment

• Server-to-switch connections

• Server-to-storage connections

• Data center top-of-rack links

• Enterprise network infrastructure

• Storage Area Networks

• Short-distance 10Gb Ethernet connections

Fit For

For white-label switches accepting Generic SFP+ DAC cables

For servers accepting standard-coded SFP+ DAC cables

For storage systems with compatible 10G SFP+ ports

For network adapters accepting Generic EEPROM coding

For selected Intel X520 Series network adapters

For selected Intel X710 Series network adapters

For certain 10GbE-capable Intel E810 Series adapters

For other Intel adapters that accept Generic or non-encrypted SFP+ DAC Please select the required cable length before ordering.

• Both connector ends use Generic standard EEPROM coding.

• This is not an Intel-specific coded cable.

• Compatibility with Intel equipment is limited to models and firmware versions that accept Generic or non-encrypted DAC identification.

• Intel X540 and X550 adapters primarily use RJ45 copper interfaces and are not listed as SFP+ DAC-compatible devices.

• Please verify that both connected devices support passive 10G SFP+ DAC cables.

• Compatibility may depend on the exact switch, server, network adapter, firmware, driver and port configuration.

• You may send the exact equipment model through Messages before ordering for a compatibility check.

• This is a third-party Generic product and is not manufactured by Intel or any referenced equipment manufacturer.

Package Includes：1 × 10G SFP+ Generic Passive DAC Twinax Cable

SKU#：1 Meter KK.CC.548-GE-1 Net Weight：2.9 oz Shipping Weight：2.9 oz

SKU#：2 Meters KK.CC.548-GE-2 Net Weight：3.8 oz Shipping Weight：3.8 oz

SKU#：3 Meters KK.CC.548-GE-3 Net Weight：4.6 oz Shipping Weight：4.6 oz
