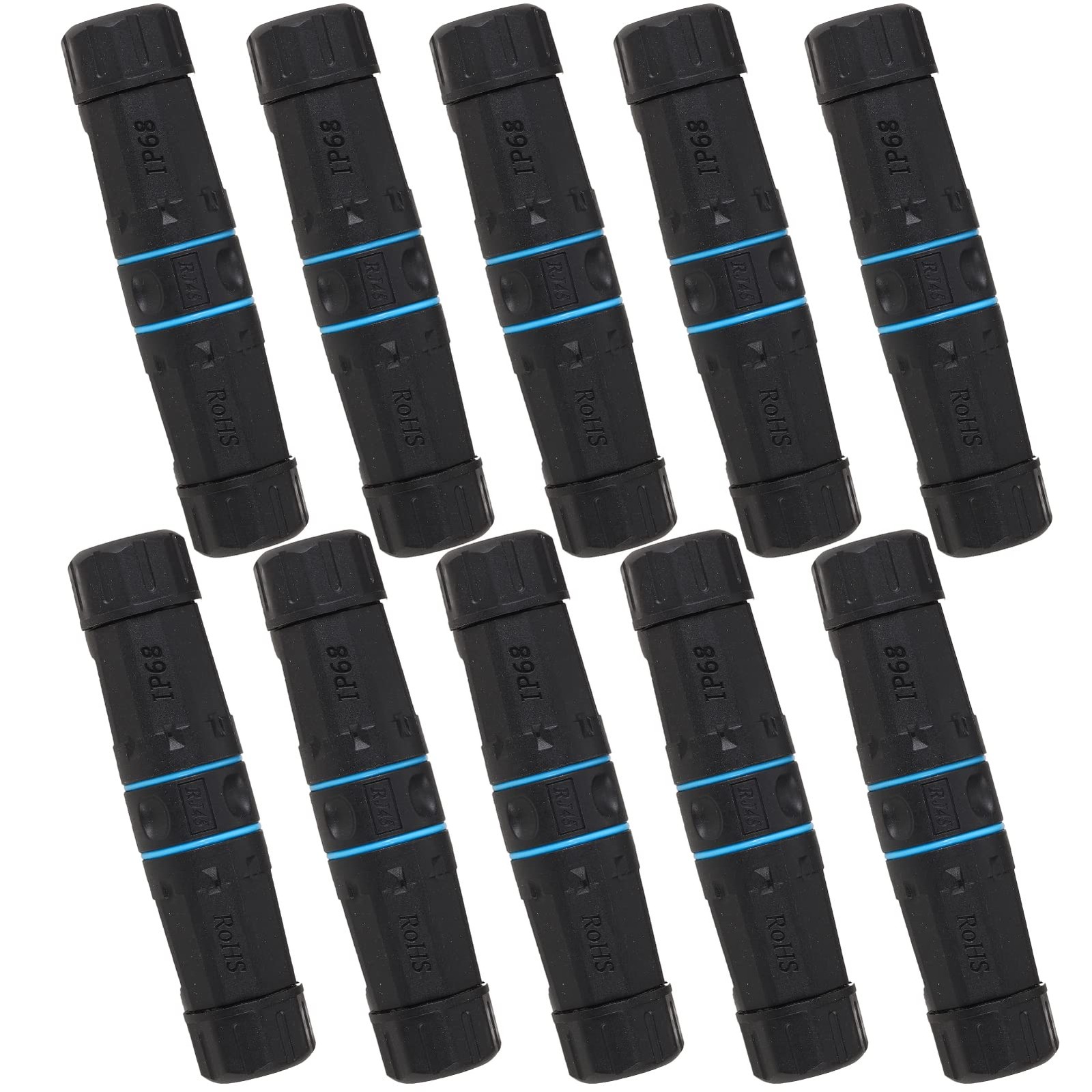

10PCS M23 Shielded RJ45 Waterproof Cat5/5e/6 8P8C Connector black
Product Details

• The Waterproof RJ45 Connector are IP 68 Compliant. Prevent the network parts from moisture, dirt and insects for quality connections. Perfect for external holiday lighting displays, IP security cameras, industrial applications.
• CAT6 standard provides performance of up to 250 MHz and backwards compatible with CAT5/CAT5E. Transfer speed up to 1Gbps (1000Mbps).
• Apply to cable size: Ø4.5-7.5mm. These RJ45 waterproof connectors can accommodate Ethernet cables as large as CAT6 CMX rated, down to standard CAT5.
• EASY INSTALLATION: It is miniaturization, and save installation space, RJ45 female to female field installable coupler, no soldering, no installation tools, just plug the standard crystal head directly for quick installation.
• Quality Assurance: Professional waterproof connector manufacturer. The product undergoes rigorous inspection before leaving the factory. If you are not satisfied with the product, please feel free to contact us.

The female to female RJ45 ethernet lan cable coupler is used to turn the standard CAT5/5e/6 patch cord into the waterproof type for the ethernet connecting in the harsh industrial or outdoor environments. A gasket seal provides optimum protection from moisture and other contaminants with an IP68 rating. Using the standards based RJ45 connection system insures compatibility with existing hardware. The shielded coupler maintains the shield continuity offering protection from EMI/RFI interference.Specifications:INGRESS PROTECTION: IP68（Waterproof and dustproof）Thread: M23Color: Black, BlueNumber of cores: 8 PINConnection type: RJ45Flame retardant rating: UL94V-0Connection method: plug type + thread pressure lockConnector wire-in range: OD (4.5～7.5) mmConnector transmission classification: CAT5, CAT5E, CAT6Transmission speed range: 10BASE-T, 100 BASE-T, 1000 BASE-T and 10000 BASE-T networkElectrical parameters:Rated current: 1.5ARated voltage: 125VAC, 75VDCInsulation resistance: ＞500MΩCompressive strength: AC1000V 50HZ or 60HZ for 1 minuteContact resistance: ＜10MΩMaterial:Shell: nylon plus fiber (UL94V-0)Socket contact pin: 0.5mm diameter phosphor copper wireContact pin gold plating thickness: 6u inchWaterproof rubber ring: siliconeEnvironmental conditions:Working temperature: -40～120CelsiusStorage temperature: -25～85CelsiusAtmospheric pressure: 86～106kPaRelative humidity: ≤90% RHPackage Included:10x M23-CAT6-A Shielded Waterproof RJ45 Connector
