The RJ45 connector design is based on industrial standard panel aperture.
According to TIA/EIA 568B and ISO/IEC 11801 standards, Compatible with CAT5/CAT5E.
RJ45 coupling connector. It can accommodate any standard RJ45 plug and can be mounted.
No signal attenuation: RJ45 socket do not need to destroy or interrupt the original wiring structure, and there is no signal attenuation and mismatch.
Technical Specifications:
Connect Port：RJ45
Cable pins：8P8C
INGRESS PROTECTION:IP67
Withstanding voltage: 500V
Current Rating :1.5A
Sealing: Silica gel
Shell: metal
Diameter Range: Φ5.5mm ~Φ7mm
Working Temperature: -25°C-80°C
Flame retardance: UL94 V-0
Cable Specification: 0.15mm2 ~ 0.2mm2 /26~24AWG
Connecting mode: Quickly bayonet connect
Package Included

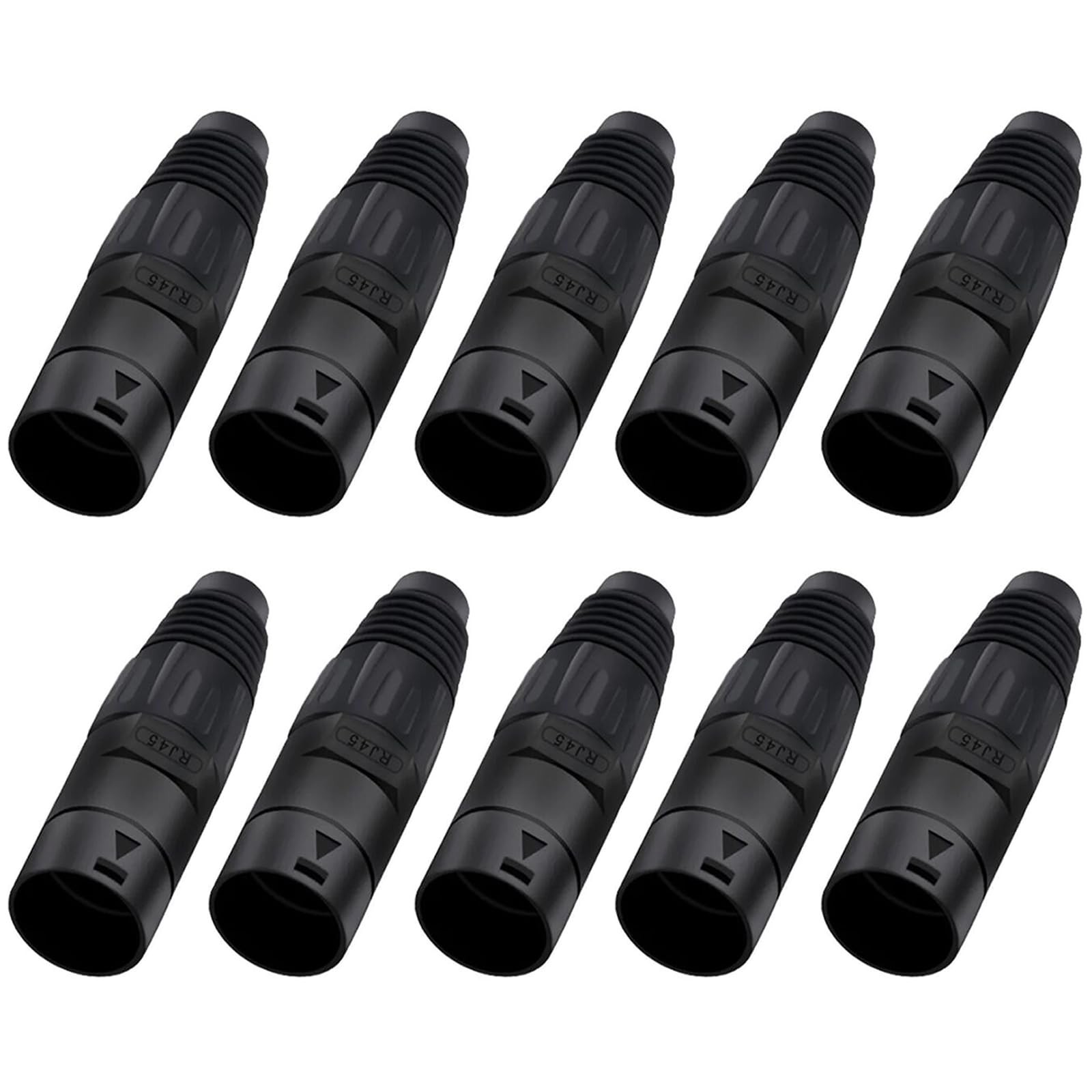

10x Round IP67 Waterproof RJ45 Connector
RJ45 Ethercon Connector is suitiable for standard RJ45 plugs, compatible with CAT5/CAT5E/CAT6 cable.
【WATERPROOF】The RJ45 Ethercon cable protector has a sturdy die-cast housing and a unique ferrule clip. Waterproof and non-waterproof design, the product meets IP67 protection level in the assembled state.
【EASY TO INSTALL】Push-pull design with secure locking system and optional installation with RJ45 panel mount adapter together. No soldering, no installation tools, just plug in standard crystal head directly for quick connection.
【STABILITY】Metal RJ45 Network cable connector is made of metal material,high strength, pressure resistance, high temperature resistance,corrosion resistance.
【ATTENTION】This connector CANNOT be used alone and should be used in conjunction with the PCB signal panel connector.
