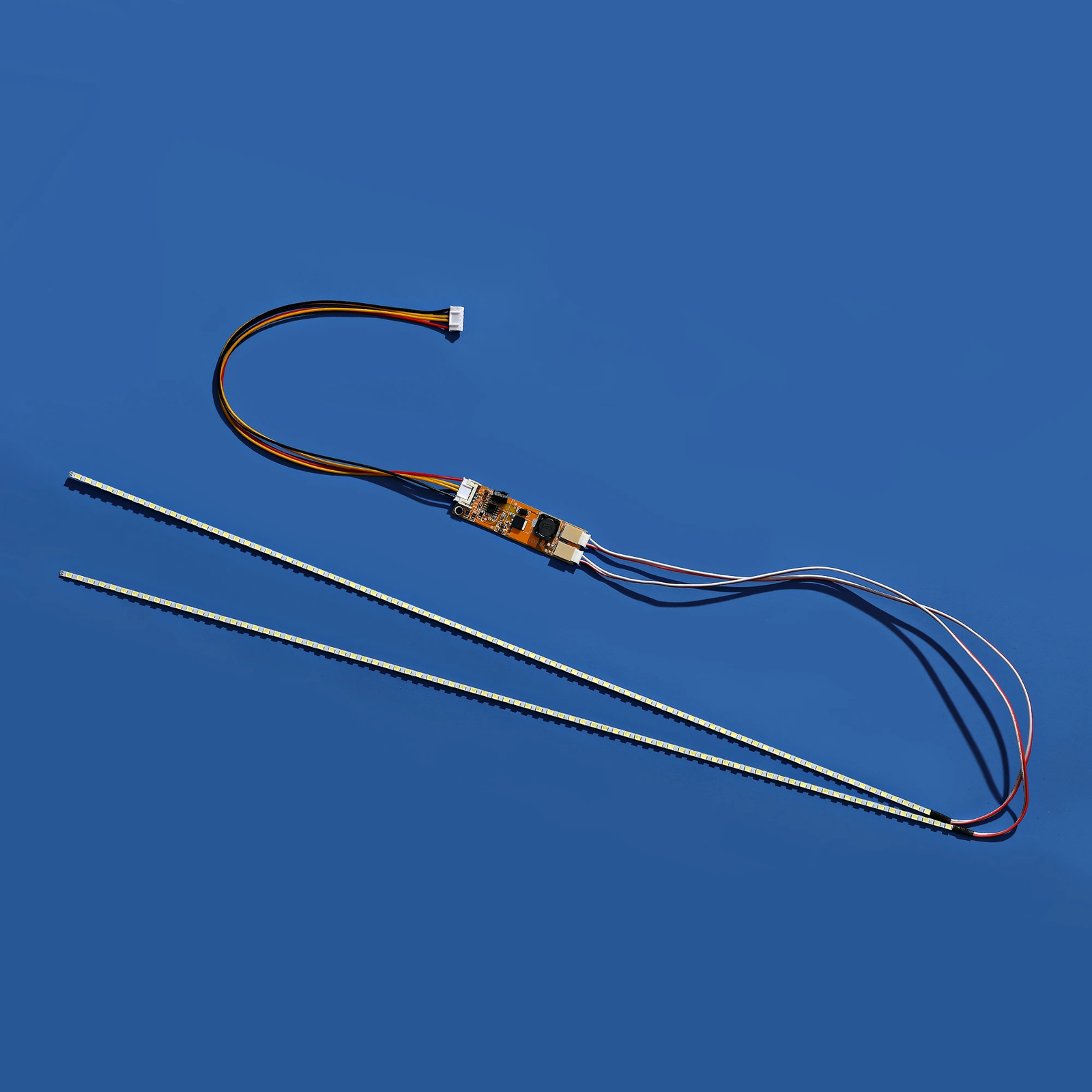

10pcs 533mm LED Backlight Strips Update 15''-24'' CCFL LCD Screen to LED
Price: CN $27.90
There are many listings for this product,but please make sure that you buy the high quality one.LED board specifications :It is dimmable. Size:7cm * 2cm (length * width) LED inverter board definition: 1-2 red cable power supply VCC 3 O/F yellow line switch signal 4 ADJ yellow line brightness control 5-6 GND black line groundLight strip specifications: Size: 533mm * 4mm * 3mm (length * width * height) Input voltage: 9V~24V wide voltage Can be cut by every 3 lamps as a group Support 15'' to 23.6'' 24'' [Why this is a universal type?]You can cut the led strip short to fit your CCFL LCD screen.(3 leds as a group according to your actual requirements.)For example, we usually use 420mm for 19 wide screens. Then we only need to follow the rules of 3leds as a group.Cut the LED strip to the right length and install it. Package includes: 10pcs led strips 5pcs led inverter boards 5pcs cables
