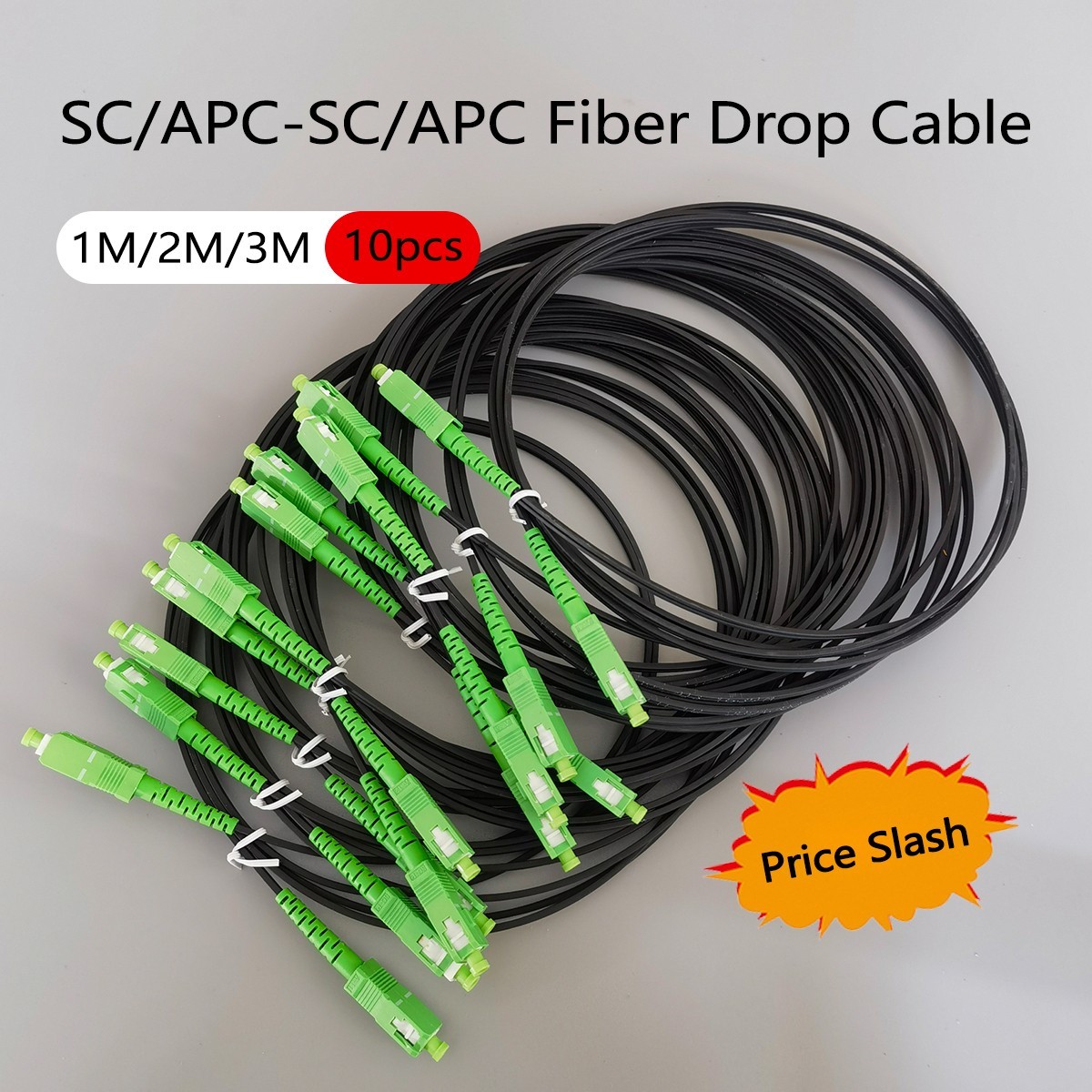

Superior Performance:Engineered with Corning® compatible premium single-mode (SMF/OS1/OS2) fiber for low attenuation and high bandwidth data transmission over long distances (1M to 3M available).

Low Back Reflection:Angled Physical Contact (APC) polish on the SC connectors minimizes return loss (< -65dB), preventing signal reflections that can disrupt source lasers and degrade network performance. Essential for analog video signals.

Durable & Flexible Construction:The 2.0mm or 3.0mm LSZH (Low Smoke Zero Halogen) drop cable jacket is robust enough to withstand crushing and bending, while remaining highly flexible for easy routing in tight spaces.

Precision Connectors:The SC connectors feature a precise ceramic ferrule (Ø2.5mm) for superior alignment, low insertion loss, and excellent repeatability. The square push-pull design allows for quick connection and disconnection in high-density panels.

Easy Identification:The distinctivegreenconnector bodies and boot are the standard color code for APC-type connectors, making them easily distinguishable from UPC polish connectors (blue).

Reliable & Stable:Perfect for connecting optical transceivers, splicing to terminal boxes, and establishing connections between optical network terminals (ONTs) and wall TypeSC/APC to SC/APCInterface PolishAngled Physical Contact (APC)Fiber TypeSingle-Mode (G.652.D)Fiber CountSimplex (1 Fiber)Cable TypeIndoor Drop Cable (2.0mm or 3.0mm)Cable JacketLSZH (Low Smoke Zero Halogen)Operating Wavelength1310nm & 1550nmInsertion Loss≤ 0.3 dBReturn Loss≥ 65 dBDurability> 500 mating cyclesOperating Temperature-20°C to +70°CStorage Temperature-40°C to +85°CAvailable Lengths1M-3MApplications

This patch cord is specifically designed for use in:

• FTTH / FTTx (Fiber to the Home / x)installations

• CATVandRF Videonetworks

• Passive Optical Networks (GPON, EPON, XG-PON)

• Telecom Central Officesand Data Centers

• Local Area Networks (LAN)andTest Equipment

• Connecting ONUs/ONTs to wall outlets

•
