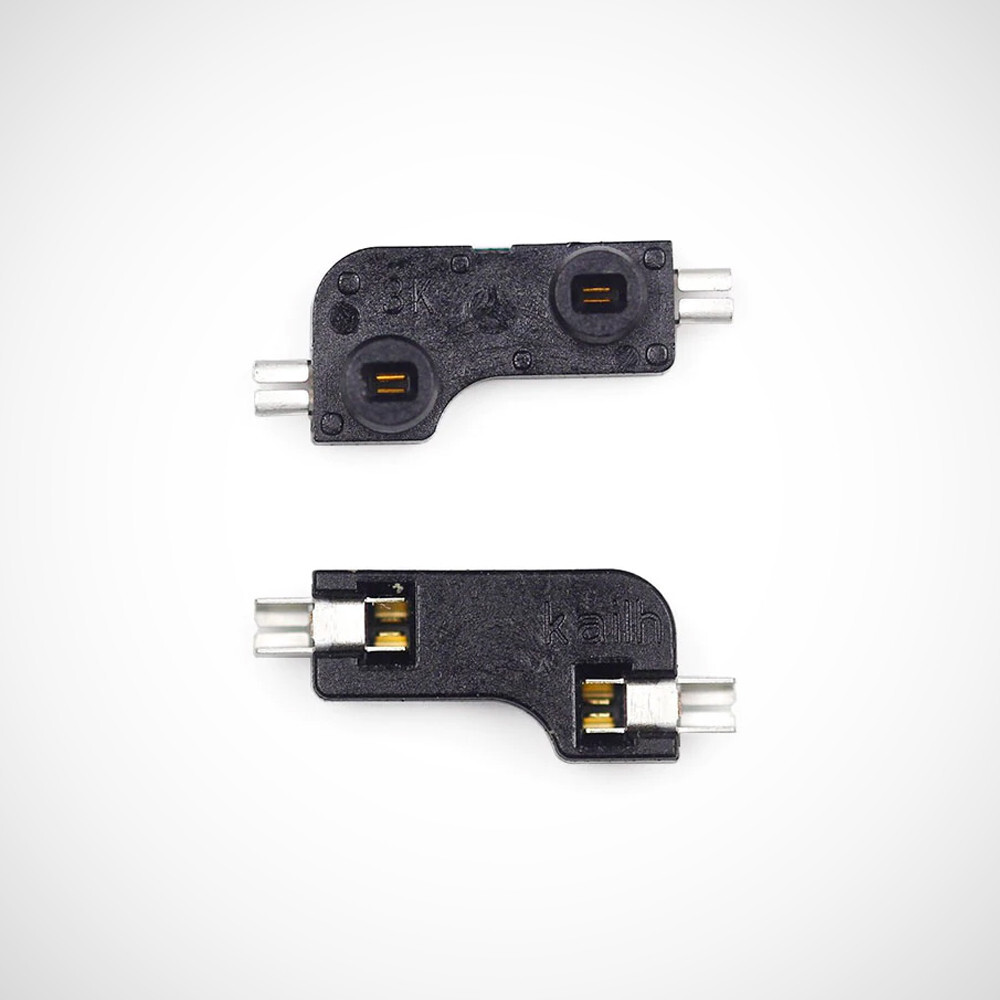

10pcs Kailh Hotswap Sockets for Custom Mechanical Split Ergo Keyboard PCB
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
10pcs Kailh Hotswap Sockets for Custom Mechanical Split Ergo Keyboard PCB
Price: US $3.99
These Kailh Hotswap PCB Sockets will allow you to quickly change switches on your keyboard.Sold in quantities of 10. One socket required per switch.Please note that these sockets require a PCB specifically designed for them. (Most PCBs do not have pads for hotswap sockets, but it's becoming more common.) They work great for hand-wired projects.Details:
  • Compatible with Cherry MX style switches, including Kailh BOX varieties
  • Rating voltage: 12V AC/DC (maximum) and 2V AC (minimum)
  • Rating current: 10mA AC/DC (maximum) and 10μA DC (minimum)
  • Contact resistance: 200mΩ (maximum)
  • Insulation resistance: 100mΩ (minimum) (100V DC)
  • Withstand Voltage: AC100V(50-60Hz)
  • Motion Force: 3.0kgf max
  • Operating Life: 100 Cycles (can replace switches 100 times)
