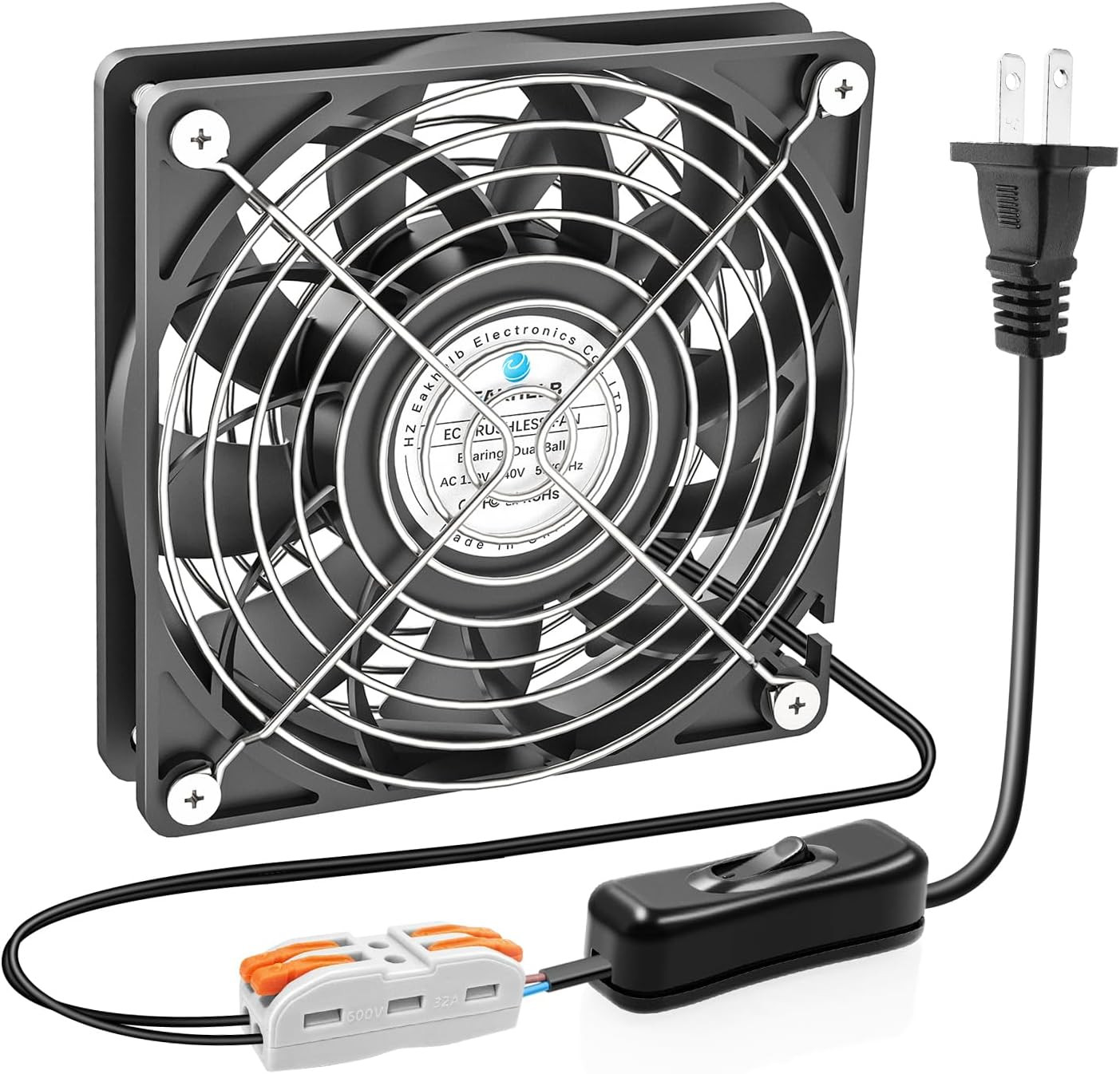

Product description 120x120x25MM EC BRSUHLESS FAN
The 120x120x25mm EC Brushless Motor Fan is equipped with an AC plug with a switch but is not connected to the fan to meet the needs of your different projects.
It can be powered on AC 90V-240V, and you can DIY to meet its use cases.
The double-sided iron mesh not only improves the safety of the fan operation but also protects the fan blades and fingers.
The EC Motor is designed to reduce energy consumption by 30% and achieve greater air volume and lighter weight than AC fans.
Durable Dual Ball Bearings
Eakhelb’s mini exhaust fan with pure copper motor and double ball bearing design for exceptional durability up to 50,000 hours of operation.
Double Sided Fan Grills
Eakhelb's muffin fan with double-sided protective iron mesh for enhanced safety, effectively safeguarding fingers and fan blades during use.
Inlet and outlet air function
Eakhelb's mini box fan with air inlet and outlet functionality can be utilized as both an exhaust fan and a supply fan based on your requirements.
AC Input Plug
Equipped with AC extension cable to meet your more efficient use in different projects.
ON/OFF Switch
The AC extension cable has a switch that gives you better control over the fan's operation.
Wire clamp
The extension cord isn't mounted directly on the fan, the cable clamp can be used as a medium to connect the AC plug extension cord to the fan.
- Package Include：
- 1*120mm/4.98Inch Cooling Fan
- 2*Fan Grills
- 1*AC plug extension Cable
- 1*Wire Clip
- 4*Nut&Screws
Parameters of Cooling Fan
Dimensions:120x120x25 mm / 4.98x 4.98x 0.98 in
Mounting Hole Distance:105mm±0.5mm/4.92"±0.02"
Bearing option: Dual Ball Bearing
Rated Voltage: AC 80V-240V
Fan Speed:2700RPM±10%
Air Flow:103CFM±10%
Noise Level：46dBA±10%
Rated input power:6.0W
Connection: 2 Wires no Terminal
- If you need to use an AC cable during use, connect the AC Plug switch cable with a cable clamp before powering it on to avoid danger.
- 【120mm/4.72 Inch computer Fan's paremters】120 x 120 x 25 mm ( 2.75"L x 2.75" W x 0.98"H) | Rated Voltage:90V to 270V | Airflow: 103 CFM | Power:6.0W | Speed: 2700 RPM |, the double ball bearing design allows the life of the fan to be up to 50000 hours, and the fan supports 24 hours of uninterrupted operation.
- 【Air Pressurized & Blade Upgrade】 Optimized blade curvature pushes air farther, perfect for long ducts or confined areas. Upgraded blade design delivers +28% higher static pressure, ideal for overcoming resistance in tight spaces (e.g., dense PC builds, ducted systems). Enhanced airflow pressure cools heat sinks and electronics faster.
- 【AC plug extension cord with ON/Switch but plug isn’t wired to the fan】 Flexible & User-Friendly of Eakhelb's 120mm small exhaust fan, It's Detachable AC Cord, Plug-and-play wiring (not pre-connected for DIY flexibility), can be used on demand to meet different engineering requirements.
- 【120mm Muffin Fan with EC Brushless Motor】Eakhelb's 120mm Muffin Fan with EC Brushless Motor realizes the application of AC power at the same time to achieve more energy saving than an AC motor, greater air volume, and optimized plastic material is lighter and more convenient.
- 【Usage of 120mm EC/AC Mini Muffin Fan & Square Vent Fan】To meet your needs for cooling and ventilation works, it can also be used as a replacement for various fans. Also, DIY is used for a computer fan, a grow tent fan, an RV fridge fan, a small box fan,pc fan, a doorway fan, a cabinet
