128MB 168-Pin PC100 SDRAM ECC — Tested Working
Used vintage computer memory. Each module is tested in compatible hardware before shipment and is guaranteed working.
Specifications
- Capacity: 128MB per module
- Form factor: 168-pin DIMM
- Memory technology: SDR SDRAM
- Speed: PC100 / 100MHz
- Voltage: 3.3V
- Organization: 16M × 72
- ECC: Yes
- Buffering: Unbuffered / non-registered
- Module construction: Double-sided
- DRAM IC count: 18 total, 9 per side
- DRAM IC organization: 64Mbit / 8M × 8 per IC
- DRAM IC speed grade: 7.5ns
- Contact plating: Gold-plated edge contacts
- Module part numbers: 69000683-F01-CSC, 69000683-H00-CSC, 69000683-H01-CSC
- DRAM IC manufacturers: Samsung, Infineon, or Micron depending on module revision
- Samsung DRAM IC: K4S640832E-TC75
- Infineon DRAM IC: HYB39S64800CT-7.5
- Micron DRAM IC: MT48LC8M8A2-75C
These modules are the same basic 128MB ECC SDRAM design, but were produced with different DRAM IC manufacturers and module revisions. The exact module part-number suffix and DRAM manufacturer supplied may vary.
Condition
Used vintage computer memory. Each module is tested in compatible hardware before shipment and is guaranteed working.
The modules are in good physical condition for their age. The PCBs, memory ICs, and gold-plated edge contacts have been visually inspected. The contacts may show minor marks from previous installation and normal handling.

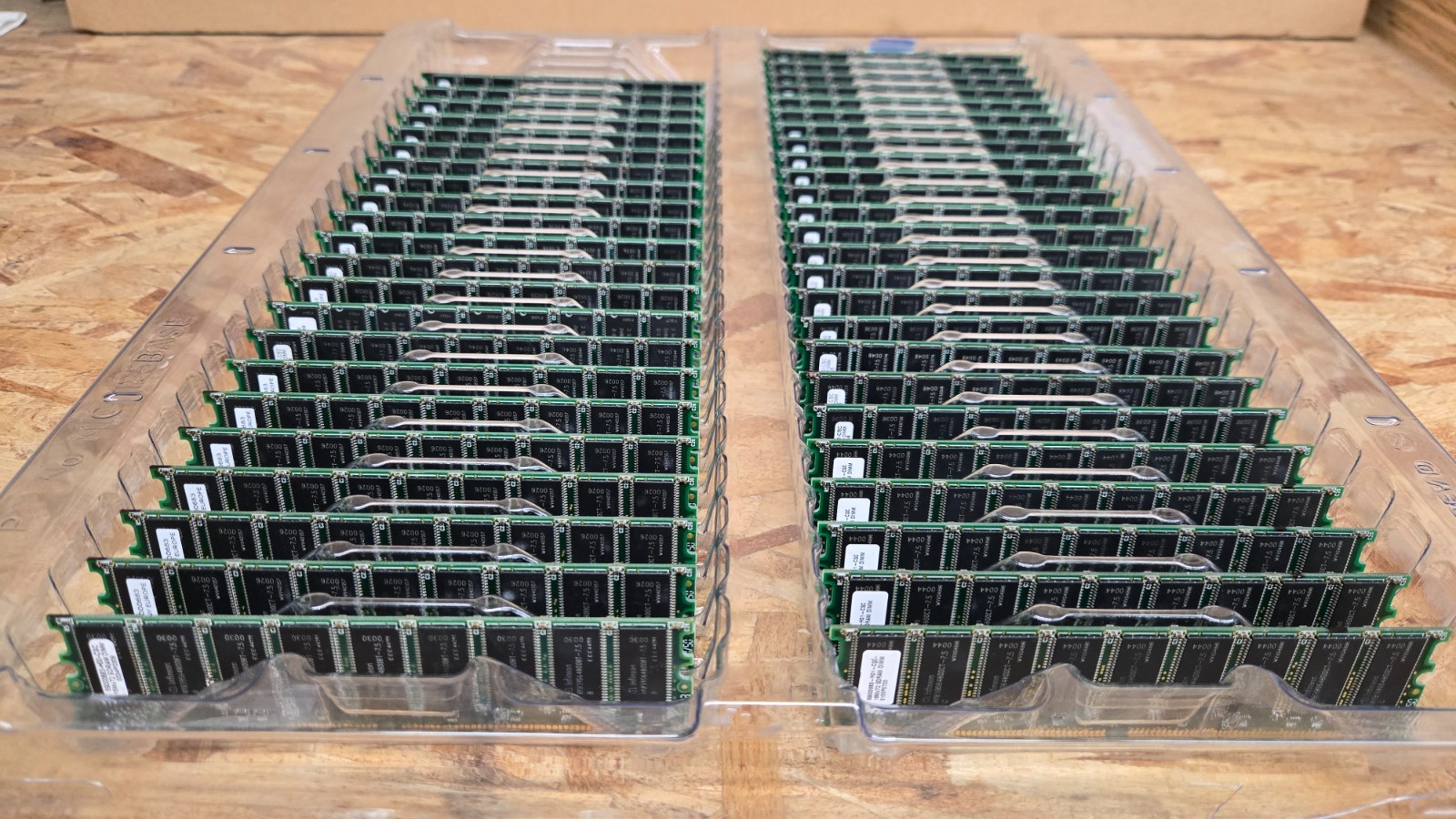

Please examine the photographs closely for the physical condition of the modules offered.
Compatibility
These are 168-pin, 3.3V, PC100 SDR SDRAM modules with a 16M × 72 ECC organization. They are unbuffered/non-registered modules and should not be confused with registered/buffered ECC SDRAM.
The individual DRAM ICs carry a 7.5ns speed grade, but these 69000683-series modules are identified as PC100 memory. Compatibility should therefore be determined from the complete module specifications rather than from the speed marking on the individual DRAM ICs alone.
The intended system must support:
- 128MB 168-pin SDR SDRAM modules
- PC100 / 100MHz SDRAM
- ECC / 72-bit memory organization
- Unbuffered / non-registered memory
- 3.3V SDRAM
Some desktop motherboards require non-ECC memory, while some servers and workstations require registered ECC memory instead of unbuffered ECC.
Please verify compatibility with your particular motherboard, workstation, server, or other equipment before purchasing.(RAM-05)
