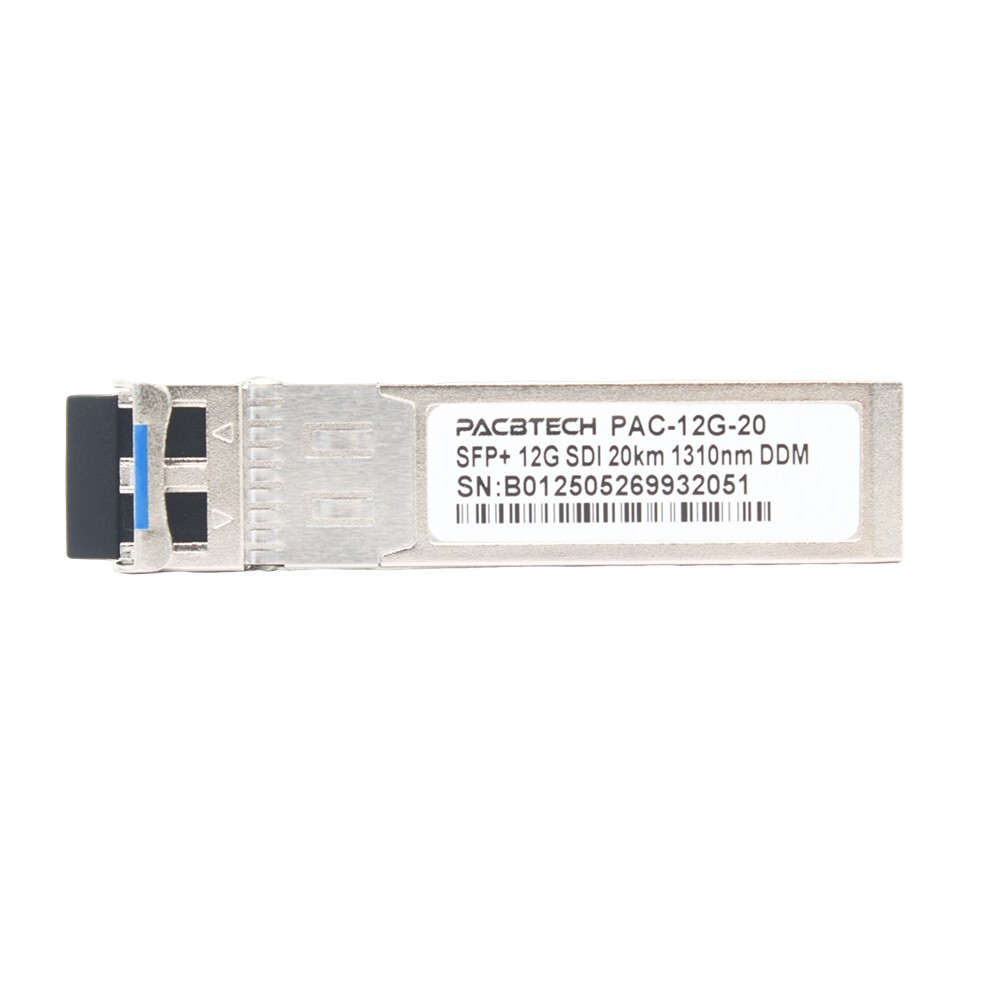

12G SDI SFP Transceiver Video Module for Blackmagic Fiber Optical Converter

12Gbps SDISFP1310nm DFB,Singlemode Fiber Duplex LC/UPC20km, -5°C ~ +70°C

The price is for one piece ,You need buy 2pcs for transmitter and receiver

This 12G SDI SFP can't use for pathological signal ,It is not an error handling optical module

Very stable, no flicker problem even long-time use

Working perfect for blackmaguc optical equipment

Talkback converter 4k

smartview 4k

fiber optocal converter mini 12G

studio camera 4k

teranex AV/teranex express/mini teranex mini optical

duplicator 4k

decklink extreme 4k 12G

Studio Fiber Converter

Features

◎Supports 12Gb/s serial optical interface

◎Up to20kmtransmission on SMF

◎1310nm DFB laser and PIN receiver

◎Hot-pluggable SFP+ footprint

◎SFI high speed electrical interface

◎Built-in digital diagnostic functions

◎Single +3.3V power supply

◎Power consumption less than 1.0 W

◎Operating case temperature: -5~+70°C

◎SFP+ MSA package with duplex LC connector

Applications

◎12GBASE-LR/LW 10G Ethernet

◎Other optical links

Standard

◎Compliant with SFF-8472 and SFP+ MSA

◎Compliant to SFF-8431 and SFF-8432

◎Compliant with IEEE 802.3ae 10GBASE-LR/LW

◎Compliant with FCC 47 CFR Part 15, Class B

◎Compliant with Telcordia GR-468-CORE

◎RoHS Compliant

Table 1. Regulatory Compliance

Feature

Standard

Performance

Electrostatic Discharge(ESD) to the Electrical Pins

MIL-STD-883

Method 3015.7

Class 1(>1000V for SFI pins, >2000V for other pins.)

Electrostatic Discharge (ESD) to the Duplex LC Receptacle

IEC 61000-4-2

GR-1089-CORE

Compatible with standards

Electromagnetic nterference (EMI)

FCC Part 15 Class B

Compatible with standards

Immunity

IEC 61000-4-3

Compatible with standards

Laser Eye Safety

FDA 21CFR 1040.10 and 1040.11

Compatible with Class I laserproduct
