1D 2D Scanning Module Embedded USB Barcode Scan Module for Ticketing Machine For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

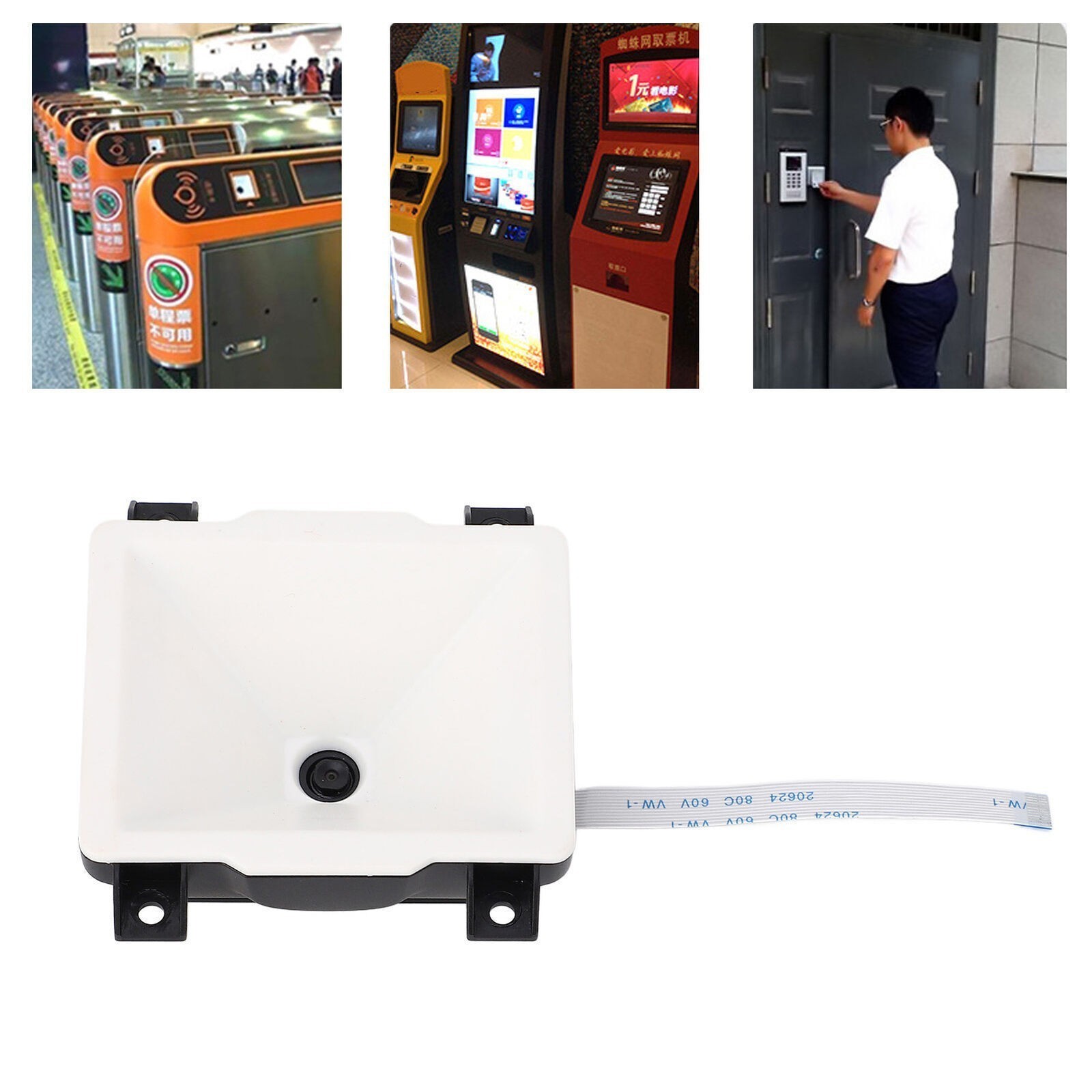

1D 2D Scanning Module Embedded USB Barcode Scan Module for Ticketing Machine

Price: CN $62.96

Feature:

1. [Auto Sensing] This scanning module features automatic sensing technology that instantly wakes up the module to read barcodes as soon as they pass through the scanning window, saving energy and time.
2. [High Speed Scanning] Independently developed core algorithm, ensuring faster decoding, supporting high speed scanning at 3.5 meters per second.
3. [Strong Decoding Capabilities] Capable of decoding various 1D barcodes such as EAN 8, EAN 13, EAN 13 2 add on, EAN 13 5 add on, and 2D barcodes including PDF417, QR code, MicroQR, Aztec, and Data.
4. [Versatile Code Recognition] This embedded barcode scan module can quickly identify paper, film 1D 2D barcodes, as well as codes on high reflectivity screens and low brightness screens.
5. [Embedded Integration] Suitable for embedding into various devices such as ticket machines, supermarket lockers, industrial assembly lines, and various self service class="wang-edit-text">

Item Type: 1D 2D Scanning Module
Material: ABS
Size: Approx. 65x62x33mm / 2.56x2.44x1.30in
Decoding Capability:
1D: EAN 8, EAN 13, EAN 13 2 add on, EAN 13 5 add on, ISSN, ISBN, UPC A, UPC E, 2, 9, Code 93, Code 128, Codabar, Industrial 2 of 5, Interleaved 2 of 5, 2 of 5, GS1 DataBar (RSS14), GS1 DataBar Limited, GS1 DataBar Expanded, ISBT 128, GS1 128, code39FULLASCII
2D: PDF417, QRcode, MicroQR, Aztec, Data
System Compatibility: for Linux, for , for XP, 7, 8, 10, for OS X
Supported Languages: English, French, Italian, German, Spanish, Finnish, Japanese, Russian
Minimum Recognition Accuracy: 9 5mil
Scannable Barcode Types: Paper, Film Type 1D 2D Barcodes; Mobile Phones, Tablets and Other Screen 1D 2D Barcodes
Motion Tolerance: 2.2m/s
Communication Interface: USB
Operating Voltage: 5VDC
Operating Current (Typical): 300mA
Operating Power: 151mA 0.755W
Scanning Mode: Automatic Induction Scanning, Command Control Scanning
Operating Temperature: -10℃~50℃
Storage Temperature: -20℃~60℃
Humidity: 5%~95% (No Condensation)
Ambient Light: 0-100,000LX
Scanning Speed: 100 Scans Per Second
Scanning Range: 10-250mm
