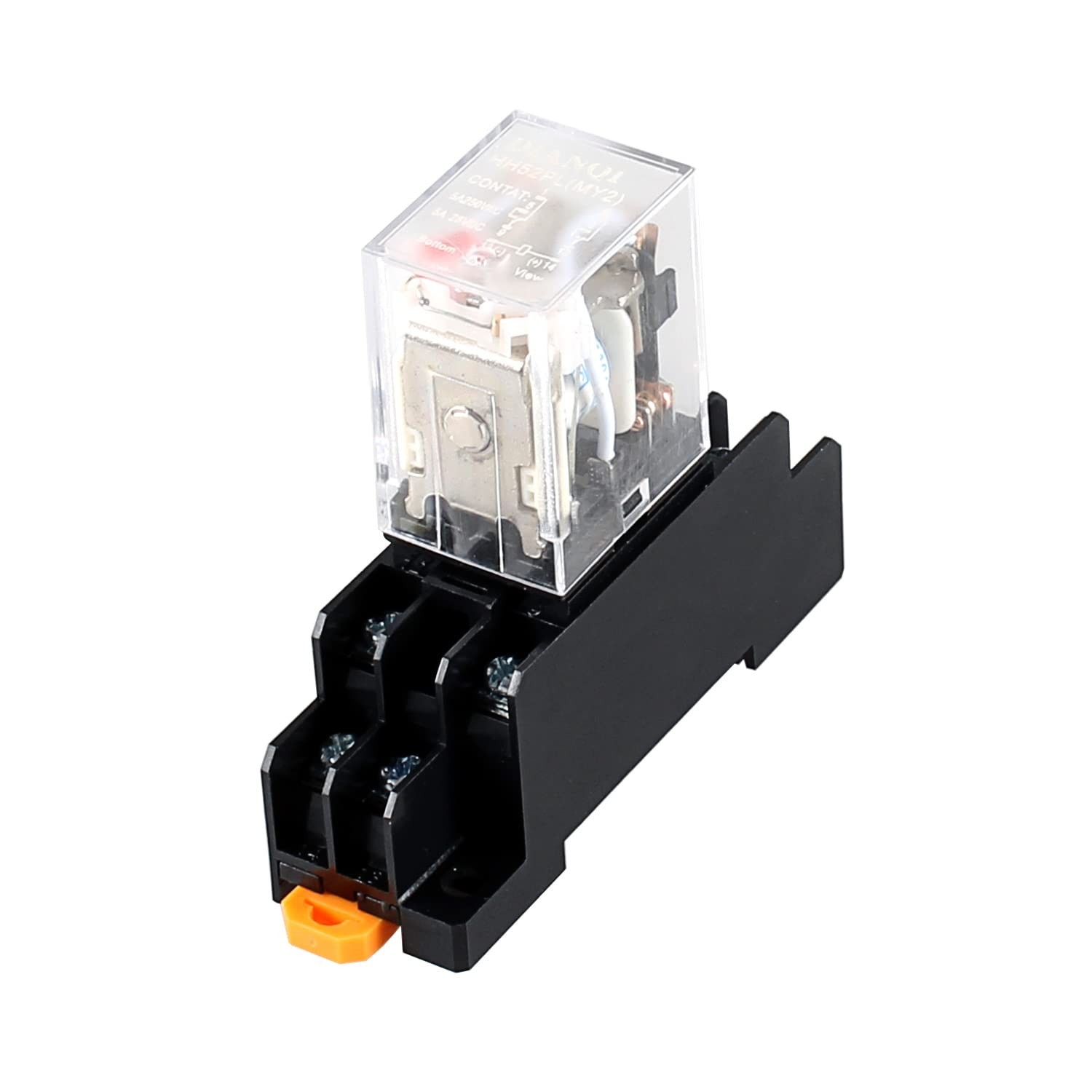

1PC AC 110V-120V 8-Pin 5Amp Electromagnetic Power Relay DPDT 2NO+2NC Relay Coil with Socket Base with LED Indicator Light
Product Details Color: 8Pins 1Pc
Size: 110V AC
Brand: DIANQI
MPN: XiaoXingJDQ-HH52P-110VAC-QX
UPC: Does not apply
EAN: Does not apply

• Connector Type: Screw
• Contact Material: Silver
• Contact Type: 2no 2nc
• Current Rating: 5 Amps
• Mounting Type: Socket Mount
• Connector Type: Screw
• Contact Type: 2no 2nc
• Current Rating: 5 Amps
• Mounting Type: Socket Mount
• Operation Mode: Automatic
• Wattage: 550 watts
• Coil Voltage: 110 Volts (AC)
• Contact Current Rating: 5 Amps
• Maximum Switching Current: 5 Amps
• Minimum Switching Voltage: 110 Volts (AC)
• Brand Name: DIANQI
• Part Number: XiaoXingJDQ-HH52P-110VAC-QX
• Manufacturer: DIANQI
• Specification Met: Electromagnetic
• Contact Material: Silver

• Product Name: Electromagnetic Relay; Coil Voltage : 110V AC; Contact Capacity: 5A 250VAC/28VDC
• Contact: Silver Alloy; Coil: Copper; Number of Terminals: 8
• With LED Indicator to judge the AC or DC coil, and judge if the coil is energized
• Wiring description: 1&4 are normally closed; 5&8 are normally open; 9&12 are common contacts; 13&14 are coil contacts
• Application: widely used in household air conditioner compressor motors, fan motors, cooling pump motors, starter relays for car starters, spur relays, motors, generator circuit breakers, industrial relays, etc.
