Welcome to here, thank you for viewing our page. We will provide you best serviceand high quality products.

Every Item will be inspect before ship it out,we ensure it qualified in orders, and everyone will be packaged carefully. You must be happy to do business with us.

we specialize in computer accessories and so on. we only sell parts with confidence.

Note：

Photo above is only for illustration purposes.

Item Including：

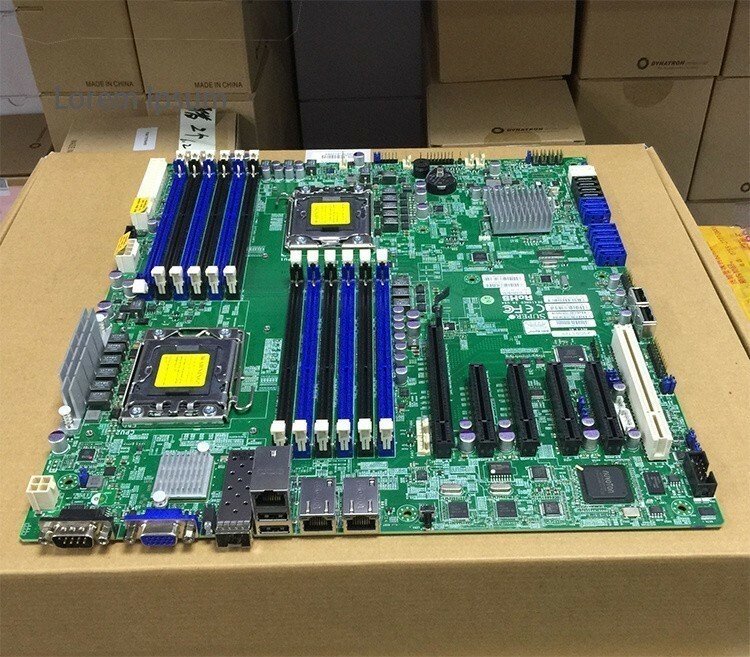

1 x motherboard
no other accessories included.ItIemintroduction

Intel® Xeon® processor E5-2400 and E5-2400 v2 (up to 95W TDP **)
Dual Socket B2 (LGA 1356)Memory Capacity
12x 240-pin DDR3 DIMM slots
Up to 768GB DDR3 ECC LRDIMM
Up to 384GB DDR3 ECC Registered memory (RDIMM)
Up to 96GB DDR3 ECC/non-ECC Un-Buffered memory (UDIMM)
Memory Type
1600/1333/1066/800MHz* ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
Support ECC and non-ECC UDIMMs
* Maximum memory speed may be capped by CPU. Please verify that the chosen CPU can support desired memory speed.
DIMM Sizes
32GB, 16GB, 8GB, 4GB, 2GB, 1GB,
64GB LRDIMM
Memory Voltage
1.5 V, 1.35 VExpansion Slots
PCI-Express
1x PCI-E 3.0 x16
2x PCI-E 3.0 x8
1x PCI-E 3.0 x4 (in x8)
1x PCI-E 2.0 x4 (in x8)
1x PCI-32 LegacyOn-Board Devices
Chipset
Intel® C606 chipset
SATA
SATA 2.0 3Gb/s with RAID 0, 1, 5, 10
SATA 3.0 6Gb/s with RAID 0, 1, 5, 10
SAS
SAS from C606
RAID 0, 1, 10 support
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Nuvoton WPCM450 BMC
Network Controllers
Intel® 82599EN Single Port 10G SFP+
Intel® i210 Dual Port Gigabit Ethernet
Virtual Machine Device Queues reduce I/O overhead
Supports 10G SFP+, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201F PHY (dedicated IPMI)
(Both CPUs need to be installed for 10Gb LAN port to be enabled)
Video
Matrox G200eWInput / Output
SATA
2x SATA 3.0 ports (6Gb/s)
4x SATA 2.0 ports (3Gb/s)
SAS
8x SAS ports (3Gb/s)
LAN
1x SFP+ 10GbE LAN port
2x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
USB
8x USB 2.0 ports total
(2x rear + 4x via header + 2x Type A)
Video
1x VGA port
Serial Port / Header
2x Fast UART 16550 ports: 1 rear, 1 header
DOM
1x DOM (Disk on Module) power connector
TPM
1x TPM HeaderBIOS
128Mb SPI Flash EEPROM with AMI BIOSDimensions
12.3" x 13" (31.24cm x 33.02cm)

• Economy shipping:Usually To all countries will be shipped via AIR MAIL ,not expedited shipping.Usually to USA,UK,EU,CA ,AU need 10-25 days arrive other country 12-35 days .

• Expedited shipping:,EU,USA, CA ,AU ,Europe Usually need 3-5 days arrive.other country 4-7 days.

• ChooseExpedited shipping, may produce be extra costs（duties taxes）Thesecharges are the buyer’s responsibility. Please check with yourcountry’s customs office to determine what these additional costs willbe prior to offerding/buying shipping fee except.

• Wecan not mark backplate as gift , since Your Country customs andinternational customs regulations prohibit such behavior, thank youfor your understanding

• Order can not be shipping to any P.O boxes. Order can only be shipped to Details address.

• Incase you haven't recieved the packet, please check with your local postoffice first, because the packet will arrive there. Duo to differentcountry, some local post office can't offer more detailed trackingstatus in time, it perhaps only show the shipment infor just left HongKong.

Service：

• PayPalis the only online payment method we accept. Please make sure youhave a valid/confirmed PayPal account prior offerding. And please makesure that your PayPal registed address is the same with your registed address.


• All items are sold with 90 days warranty unless otherwise stated in the sale.

• Refundor replacement requirements apply only to the date of the requestwithin 90 days. if the product is defective or not as described wewill replace the product or refund.

• Pleasedo not return any items without an authorization number or otherinstructions by us. Any packages that are send without our knowledge will be refused and no replacements will be issued.

• We pride ourselves in offering very high level of customer service and strive to be the best marketplace seller online.

• Pleasecontact us before leaving any negative or neutral response, so we canhelp you solve any problem whether pre-sale or after sale.

• Ifthere are any queries please do not hesitate to contact us via ’smessaging service, we will get back to ALL messages within 24 hours Monday-Friday.
