REMOTE CONTROL BUTTON FUNCTION:
12 color keys: corresponding key color light
Mode switch key: Light green key (bottom middle key), Press and hold for 3 seconds, Switch to AURA SYNC mode of the main board, Press and hold for 3 seconds to switch to remote control mode, (the factory default mode is remote control mode).
Lock key: Press and hold the purple key for 3 seconds (the bottom left key), The light flashes once, and the is locked successfully.
Note: after the lock key function is activated, The remote controller and the controller complete to lock . Other remote controllers will not be able to remotely control the controller, Please take good care of the remote control to avoid losing it.
Unlock key: Long press the white key for 3 seconds (the bottom right key), The light flashes once, and the unlocking is successful(factory default is unlock). CONTROLLER INSTALLATION：
Connect the controller power cable to the SATA interface of the PC power supply.
Connect the controller 5V ARGB control line to the main board supporting aura sync function, 5V ADD_ HEADER interface, ordinary motherboard does not need to be connected.
Connect the CPU FAN to the red CPU FAN seat of the controller.
Connect the CPU FAN PWM cable of the controller to the CPU FAN base of the motherboard.
The RGB FAN 4PIN / 3PIN cable is connected to the black RGB FAN seat of the controller.
The 5V 3-PIN control line of RGB FAN is connected to the ARGB seat of the controller.

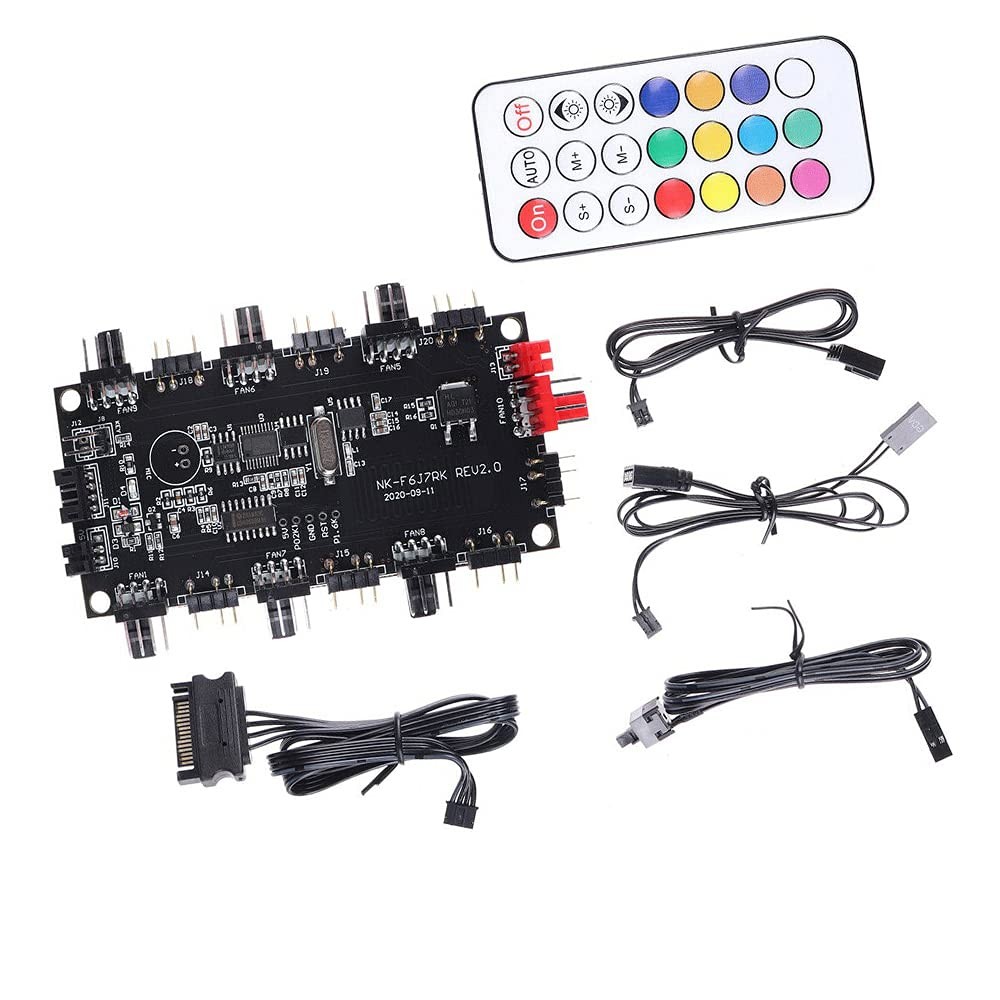

Fix the controller in a proper position in the cabinet by dipping glue or magnetic suction. Package Includes: 1Pcs board and 4Pcs connecting wires.The controller has options: AURA SYNC mode and wireless remote control mode
It can connect the motherboard supporting AURA SYNC function, and centrally control RGB fans, light bars, and other ARGB lighting devices
The motherboard does not the AURA SYNC function. It can also centrally control multiple ARGB lighting devices through the built-in mode of the controller
RGB fan port：6（4PIN/3PIN）；PWM voltage：12V；5V ARGB ight interface：7PCS（3PIN ARGB）；voltage of light：5V；Power supply port：SATA；Power supply safety current：3A；Enclosure：Instruction manual, 4 connecting wires
fixation modes: magnetic suction and adhesive are provided, can be either sucked to the iron surface of chassis or stuck to other material surfaces
