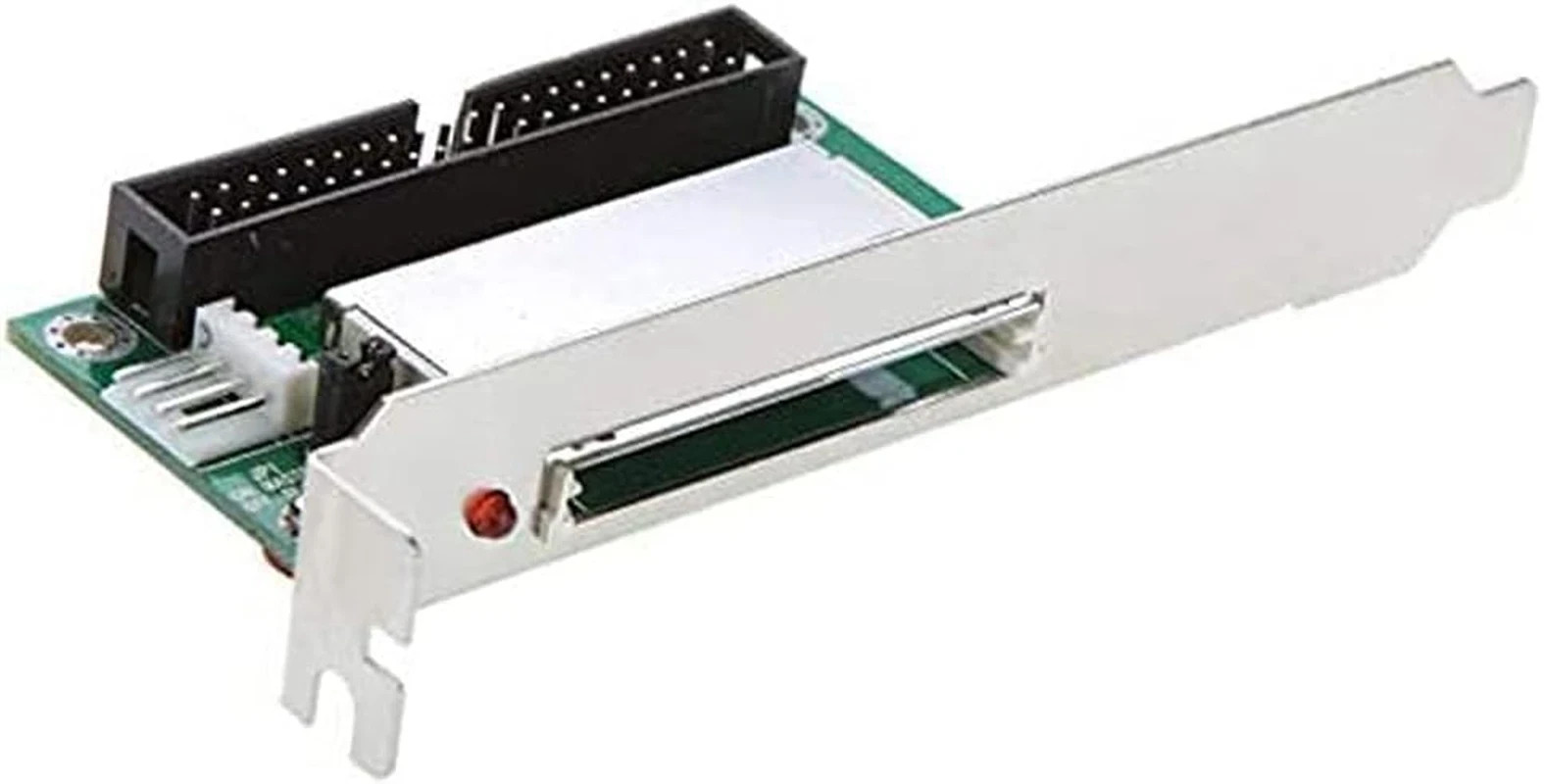

💾 1Pcs CF to IDE Adapter 40-Pin Compact Flash to 3.5" IDE Converter with PCI Bracket📌 Product Description

This CF to IDE adapter allows CompactFlash (CF) cards to be used with standard 40-pin IDE/ATA interfaces. It is a practical solution for desktop PCs, industrial computers, embedded systems, testing equipment, and other devices that require IDE storage.

The adapter uses a CF card as an IDE storage device, providing a convenient alternative to traditional mechanical hard drives in applications where frequent power cycling or compact storage is preferred.

⭐ Key Features

• 🔌 40-Pin IDE Interface: Standard 40-pin, 2.54 mm female IDE connector for connection to compatible IDE/ATA interfaces.

• 💾 CF-I & CF-II Support: Compatible with both CF Type I and Type II cards, including supported Microdrive devices with a CF-II interface.

• ⚡ Flexible Power Options: Supports 3.3V or 5V power depending on the CF card requirements.

• 🚀 True-IDE Mode: Designed for True-IDE operation and supports DMA-66 transfer mode.

• 💡 LED Indicators: Includes LEDs for power, CF activity, and card detection.

• 🔄 Master/Slave Selection: Built-in jumper allows configuration as either Master or Slave.

• 🖥️ Versatile Applications: Suitable for desktop PCs, industrial PCs, embedded systems, testing equipment, and compatible portable instruments.

• 📷 Camera Data Access: Can be used with compatible CF cards to transfer stored data to a desktop computer through an IDE interface.

• 🧰 PCI Bracket Included: Includes a PCI-style mounting bracket for convenient installation in compatible computer cases.

🔧 TypeCF to IDE AdapterQuantity1 PieceConnector Type40-Pin IDEInterfaceIDE / ATACF SupportCF-I & CF-IITransfer ModeTrue-IDE / DMA-66Power Supply3.3V / 5VLED IndicatorsPower / Activity / Card DetectConfigurationMaster / Slave JumperColorWhiteCompatible DevicesCompatible PCs, Cameras & Embedded SystemsSpecific UsesPC, Camera, Industrial & Embedded ApplicationsMountingPCI Bracket📦 Package Includes

• 1 × CF to IDE Adapter

• 1 × PCI Bracket

⚠️ Important Notes

• Please confirm that your device supports a 40-pin IDE/ATA interface before purchasing.

• Power requirements should match the specifications of your CF card.

• Please check the adapter dimensions and connector configuration before purchase.

• Due to manual measurement, slight dimensional variations may occur.

• Actual product color may vary slightly depending on monitor settings and lighting.
