1x2 1 In 2 Out DisplayPort 1.2a Splitter Video 4K 60Hz 21.6Gbps 3D MST HBR2 GTCNewAVAILABLEIN STOCKContact UsNewsletterBuy NowProduct Description

1x2 Display Port DP VideoSplitter [email removed by ]

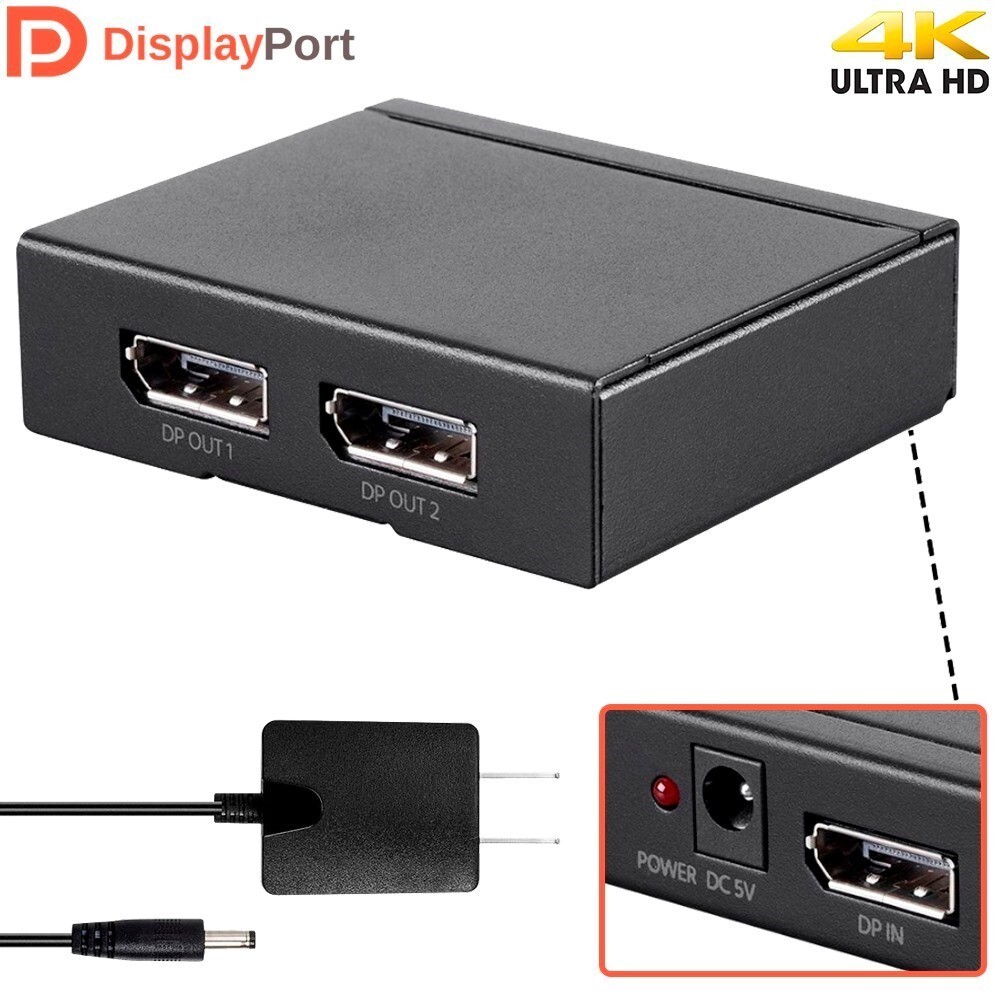

This DisplayPort splitter allowsconnecting a single DisplayPort video source on two DisplayPort displays.
DP++ compliant and supports advanced features, such as MST, HBR2, 3D formats, and GTC assist.

Features:

Fully compliant with the DisplayPort 1.2a specification
Video resolution: up to [email removed by ]
Bandwidth: up to 21.6 Gbps
Supports the RGB, YCbCr 4:4:4, and YCbCr 4:2:2 color spaces
Compliant with the VESA DisplayPort standard 1.62, 2.7, and 5.4 Gbps link rates
Support for 1, 2, or 4 differential data pairs (lanes)
Supports the multi-stream transport (MST) feature
Supports 3.2 Gbps data pair HDMI® link rate
Supports 7.1-channel audio with up to 192kHz sampling rate
Supports Deep Color up to 16-bits per channel

Package contents:

1x2 DisplayPort splitter
AC power adapter DC 5V, 1A
User Manual

Specifications:

Inputs
1x DisplayPort 1.2a
Outputs
2x DisplayPort 1.2a
MaximumVideoResolution
4K@60Hz
MaximumBandwidth
21.6 Gbps
ColorSpaces
RGB, YCbCr 4:4:4, YCbCr 4:2:2
LinkRates
1.62, 2.7, and 5.4 Gbps
DifferentialDataPairs(Lanes)
1, 2, or 4
InputPower
5 VDC, 1A
ACAdapterInputPower
100 ~ 240 VAC, 50/60 Hz
MaximumPowerConsumption
1.3 watts
OperatingTemperature
+32 ~ +104°F (0 ~ +40°C)
StorageTemperature
-4 ~ +140°F (-20 ~ +40°C)
OperatingHumidity
20 ~ 90% RH, non-condensing
Dimensions
2.8" x 2.4" x 0.8" (71 x 61 x 21 mm)
Weight
4.5 oz. (128 g)
