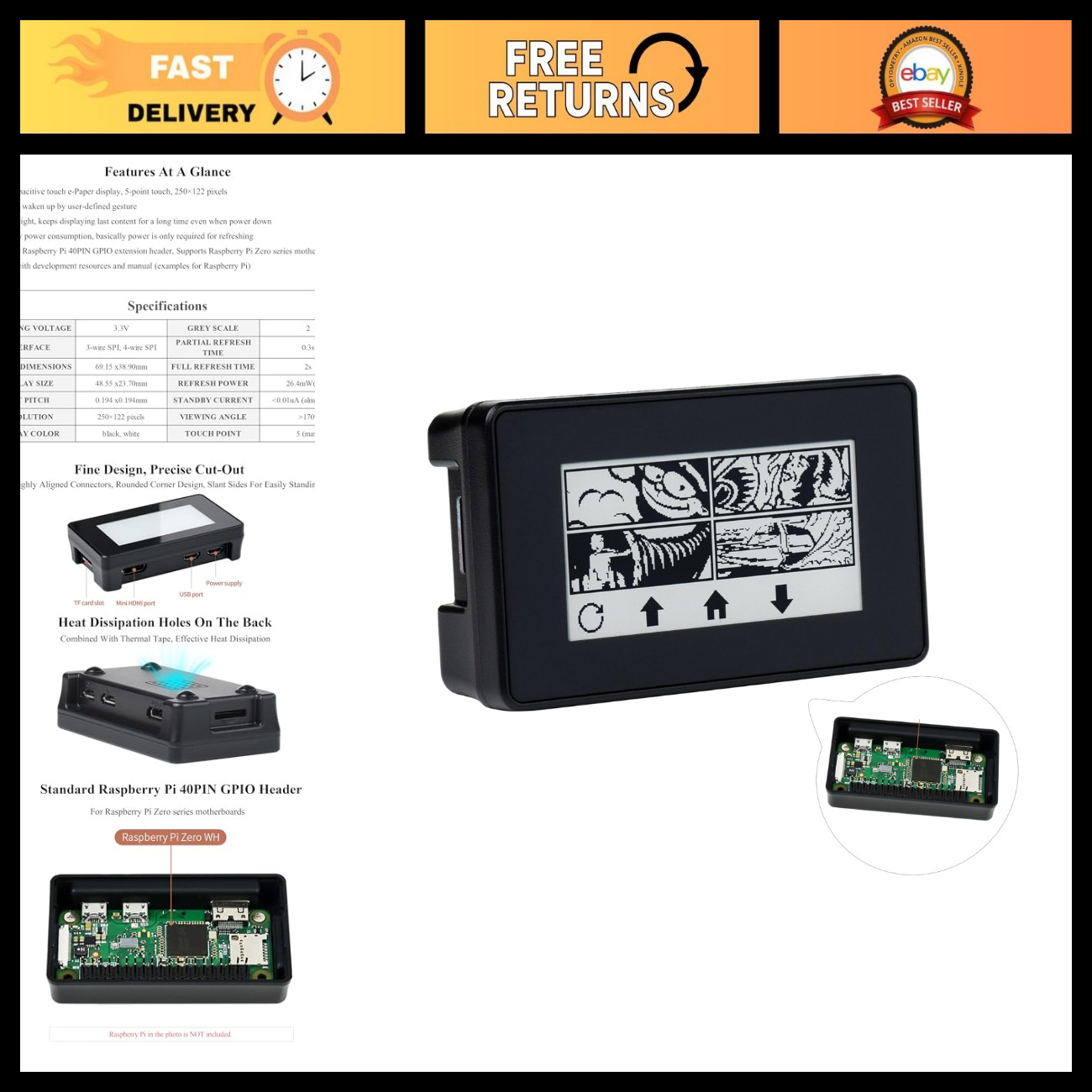

2.13" Touch E-Paper Display for Raspberry Pi Zero 2 W & Zero W, 250x122 E-Ink, A
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
2.13" Touch E-Paper Display for Raspberry Pi Zero 2 W & Zero W, 250x122 E-Ink, A
Price: US $59.84
2.13" Capacitive Touch e-Paper Display

Experience cutting-edge technology with this compact and efficient e-Paper display, designed to enhance your projects with its impressive features:

Key Features:
  • Display Size: 2.13 inches with a resolution of 250×122 pixels.
  • Color: Black and white for clear visibility.
  • Touch Capability: 5-point capacitive touch for intuitive interaction.
  • Power Efficiency: Ultra low power consumption; only requires power for refreshing the display.
  • No Backlight Needed: Retains the last displayed content for an extended period, even when powered down.
  • Customizable Wake-Up Gesture: Supports waking up the display through user-defined gestures.
  • Heat Dissipation: Features heat dissipation holes on the back, combined with thermal tape for effective cooling.
Specifications:
  • Outline Dimensions (Module): 69.15 × 38.90mm
  • Outline Dimensions (Driver Board): 59.51mm × 34.00mm
  • Display Area: 48.55mm × 23.71mm
  • Operating Voltage: 3.3V (V1.1 supports 5V)
  • Communication Interface: SPI
  • Dot Pitch: 0.194 × 0.194mm
  • Greyscale Levels: 2
  • Partial Refresh Time: 0.3 seconds
  • Full Refresh Time: 2 seconds
  • Refresh Power Consumption: 26.4
