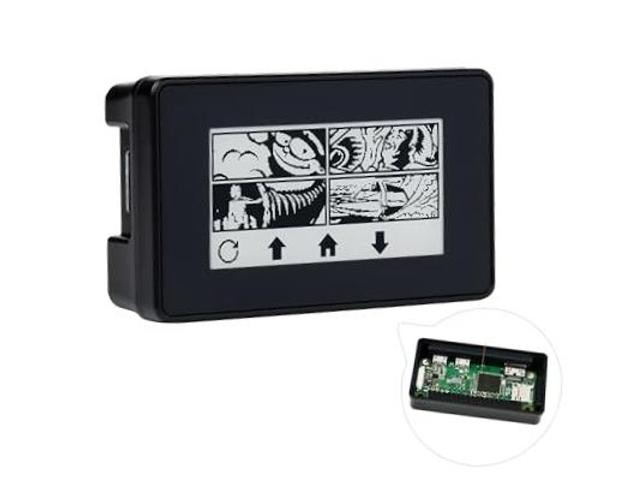

2.13inch Touch e-Paper Display with ABS Case for Raspberry Pi Zero 2 W/Raspberry Pi Zero/Pi Zero W/Pi Zero WH, 250x122 Pixels E-Ink, Paper-Like Effect Support Partial Refresh Product Description 2.13" capacitive touch e-Paper display, 5-point touch, 250×122 pixels.Display color: black, white. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi Zero / Zero W. Supports waken up by user-defined gesture.
No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing. Heat dissipation holes on the back,combined with thermal tape, effective heat dissipation.
Outline dimensions(Module): 69.15 × 38.90mm. Outline dimensions(Driver Board): 59.51mm × 34.00mm. Display area: 48.55mm × 23.71mm. Operating Voltage: 3.3V (V1.1 support 5V). Communication interface: SPI. Dot pitch: 0.194 × 0.194mm.
Greyscale: 2. Partial refresh time: 0.3s. Full refresh time: 2s. Refresh power: 26.4mW(typ.). Touchpoints: 5 (MAX). Touch type: Capacitive touch. Touch interfaced: I2C. Touch panel: Toughened Glass .
Comes with development resources and manual (examples for Raspberry Pi).
