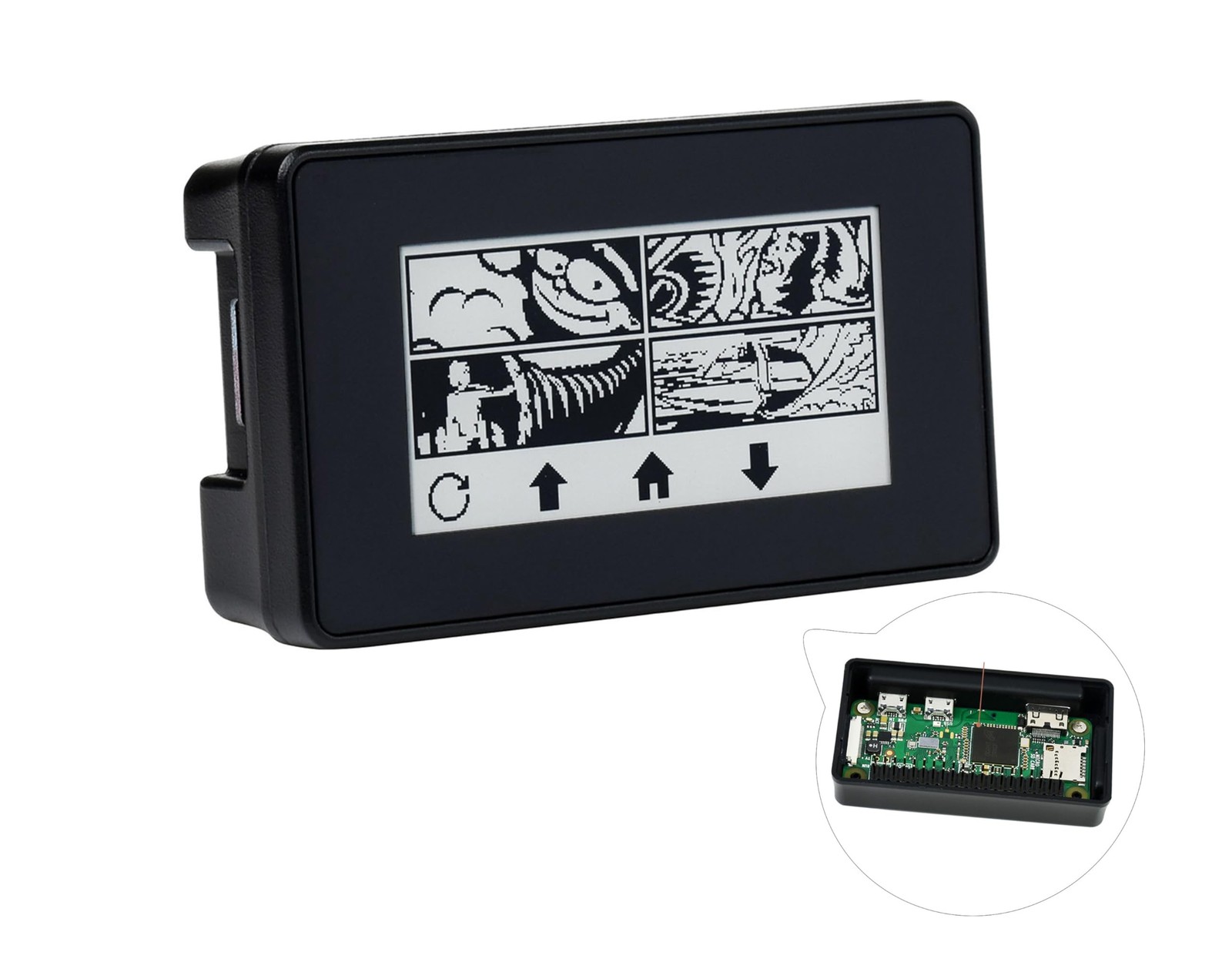

2.13inch Touch e-Paper Display with ABS Case for Raspberry Pi Zero 2 W/Raspberry Pi Zero/Pi Zero W/Pi Zero WH, 250x122 Pixels E-Ink, Paper-Like Effect Support Partial Refresh
Product Details Color: 2.13" Touch e-Paper with Case
Brand: waveshare
MPN: H-2.13"Touch e-Paper+Case-P
UPC: Does not apply
EAN: Does not apply

• Brand: waveshare
• Model Name: H-2.13"Touch e-Paper+Case-P
• CPU Model: Raspberry Pi Zero 2 W
• Connectivity Technology: GPIO
• Included Components: 2.13inch Touch e-Paper HAT, ABS case, Screwdriver, Thermal tape, rubber feet 4PCS, Screws 2PCS
• CPU Model: Raspberry Pi Zero 2 W
• Connectivity Technology: GPIO
• Operating System: Linux
• Wireless Compability: Infrared
• Compatible Devices: Raspberry Pi Zero 2 W, Raspberry Pi Zero, Pi Zero W, Pi Zero WH
• RAM Memory Technology: LPDDR2
• Item Dimensions L x W x H: 2.72"L x 2.72"W x 2.72"H
• Brand: waveshare
• Model Name: H-2.13"Touch e-Paper+Case-P
• Built-In Media: 2.13inch Touch e-Paper HAT, ABS case, Screwdriver, Thermal tape, rubber feet 4PCS, Screws 2PCS
• Number of Items: 1
• Manufacturer: Waveshare
• Model Number: H-2.13"Touch e-Paper+Case-P
• Mfr Part Number: H-2.13"Touch e-Paper+Case-P

• 2.13" capacitive touch e-Paper display, 5-point touch, 250122 pixels.Display color: black, white. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi Zero / Zero W. Supports waken up by user-defined gesture.
• No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing. Heat dissipation holes on the back,combined with thermal tape, effective heat dissipation.
• Outline dimensions(Module): 69.15 38.90mm. Outline dimensions(Driver Board): 59.51mm 34.00mm. Display area: 48.55mm 23.71mm. Operating Voltage: 3.3V (V1.1 support 5V). Communication interface: SPI. Dot pitch: 0.194 0.194mm.
• Greyscale: 2. Partial refresh time: 0.3s. Full refresh time: 2s. Refresh power: 26.4mW(typ.). Touchpoints: 5 (MAX). Touch type: Capacitive touch. Touch interfaced: I2C. Touch panel: Toughened Glass .
• Comes with development resources and manual (examples for Raspberry Pi).

Overview 2.13"capacitive touch e-Paper display, 5-point touch, 250×122pixels.Display color: black, white Standard Raspberry Pi 40PIN GPIO extensionheader, supports Raspberry Pi Zero / Zero W. Supports waken up by user-definedgesture. No backlight, keeps displaying last content for a long time even whenpower down. Ultra low power consumption, basically power is only required forrefreshing. Heat dissipation holes on the back,combined with thermal tape,effective heat dissipation. Specifications operating voltage--3.3V grey scale--2 interface--3-wire SPI, 4-wire SPI partial refresh time-- 0.3s full refreshtime --2s display size --48.55 × 23.70mm refresh power --26.4mW(typ.)resolution --250×122 pixels viewing angle -->170° display color --black, whiteTouch point --5 (max) outline dimensions-- 69.15 × 38.90mm dot pitch --0.194 ×0.194mm standby current --
