Important Notes for Using SFP Modules
Using 2.5G SFP Modules:
Compatibility Check:Before purchasing a 2.5G module, ensure your switch has a 2.5G SFP interface. lf yourswitch only has 10G SFP+ ports, a 2.5G module will not work properly when inserted into a 10G SFP+ slot.
2.5G speed setting.The 2.5G moduleoperates exclusively at 2.5G and cannot function at 10G speeds.
Installation Advice:Always insert the 2.5G module into a designated 2.5G SFP port to ensure proper functionality
By following these guidelines, you can ensure optimal performance and avoid potential issues when using SFP modules.
1.PRODUCT FEATURES
l Support 2.5Gbase-T / 1000base-T/ 100base-T on line port
l Support 2.5Gbase-X on host port
l Hot-pluggable SFP footprint
l Compact RJ-45 connector assembly
l RoHS compliant and lead-free
l Single +3.3V power supply
l 2.5 Gigabit Ethernet over Cat 5E cable
l Ambient Operating temperature: 0°C to +70°C
l Power dissipation <1.5W
2.PRODUCT DESCRIPTION

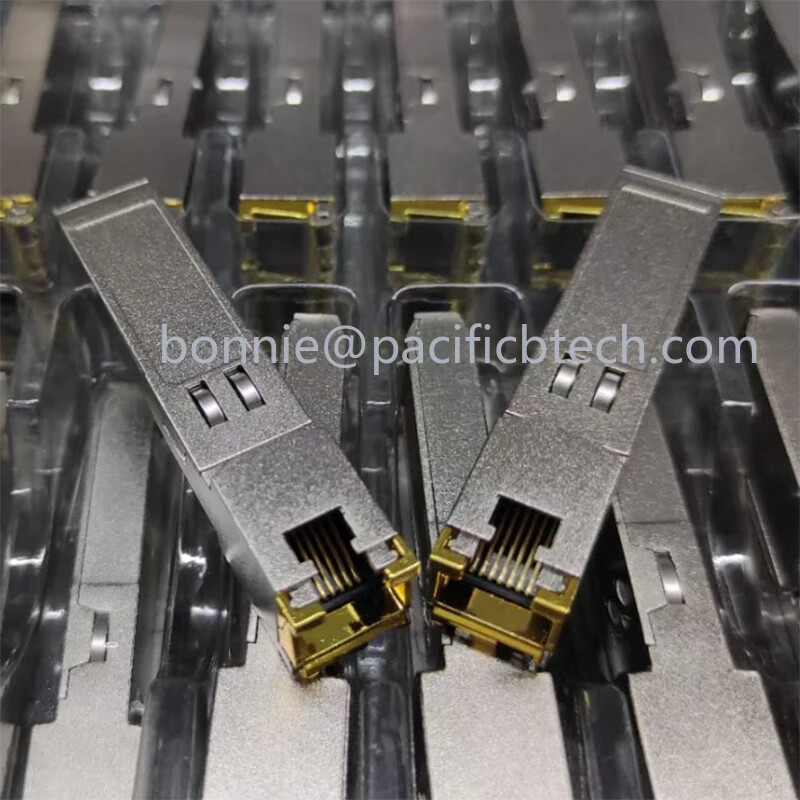

2.5G-T-R-RM Copper Small Form Pluggable (SFP) transceivers are based
on the SFP Multi Source Agreement (MSA) . They are compatible with the
2.5Gbase-T / 1000base-T/100base-T standards as specified in IEEE Std 802.3 .
2.5G-T-R-RM uses the SFP's RX_LOS(must be pulled up on host) pin for link
indication. If pull up or open SFP's TX_DISABLE pin, PHY IC be reset.
