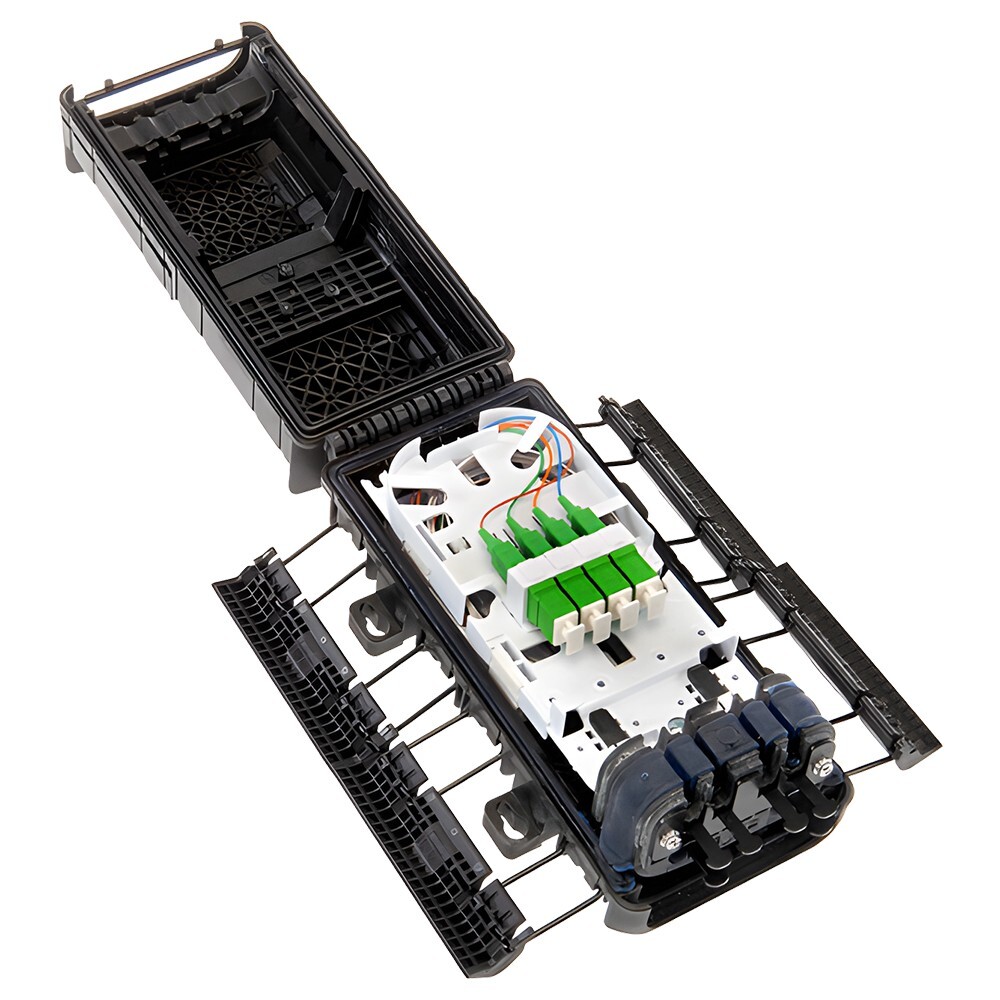

Fiber Patch and Splice Enclosure
Description
The IP68-rated patch and splicing enclosure secures and manages fiber optic connections in a variety of environments. The all-plastic housing is made from a glass-filled polypropylene blend with UV inhibitors to ensure a long service life in a variety of conditions, and a unique gel-based sealing system ensures waterproof performance in underground and aboveground installations for round and flat drop construction cables. The enclosure securely installs in pole mount, wall mount, aerial suspension and direct burial applications.Ideal for splitting a trunk or distribution cable in almost all environments
- IP68-rated for outdoor installation
- Easy-to-open design with water-tight latching
- Includes easy-to-see fiber splicing tray
- Compatible with fiber splice connections and fiber couplers
- WEIGHT: 0.55 kg (1.2 lbs)
- DIMENSIONS: 215 x 120 x 70 mm (8.46 x 4.72 x 2.76 in)
- SPLICE CAPACITY: 24 fiber
- INPUT PORTS: 2 ea, 12 mm maximum diameter
- OUTPUT PORTS: 4 ea, 8 mm maximum diameter
Included Accessories
- Internal splice tray
- Splice sleeves
- PTFE tubes
- Wall mounting screws
- Port plugs
- Insulating foam
- Cable ties
