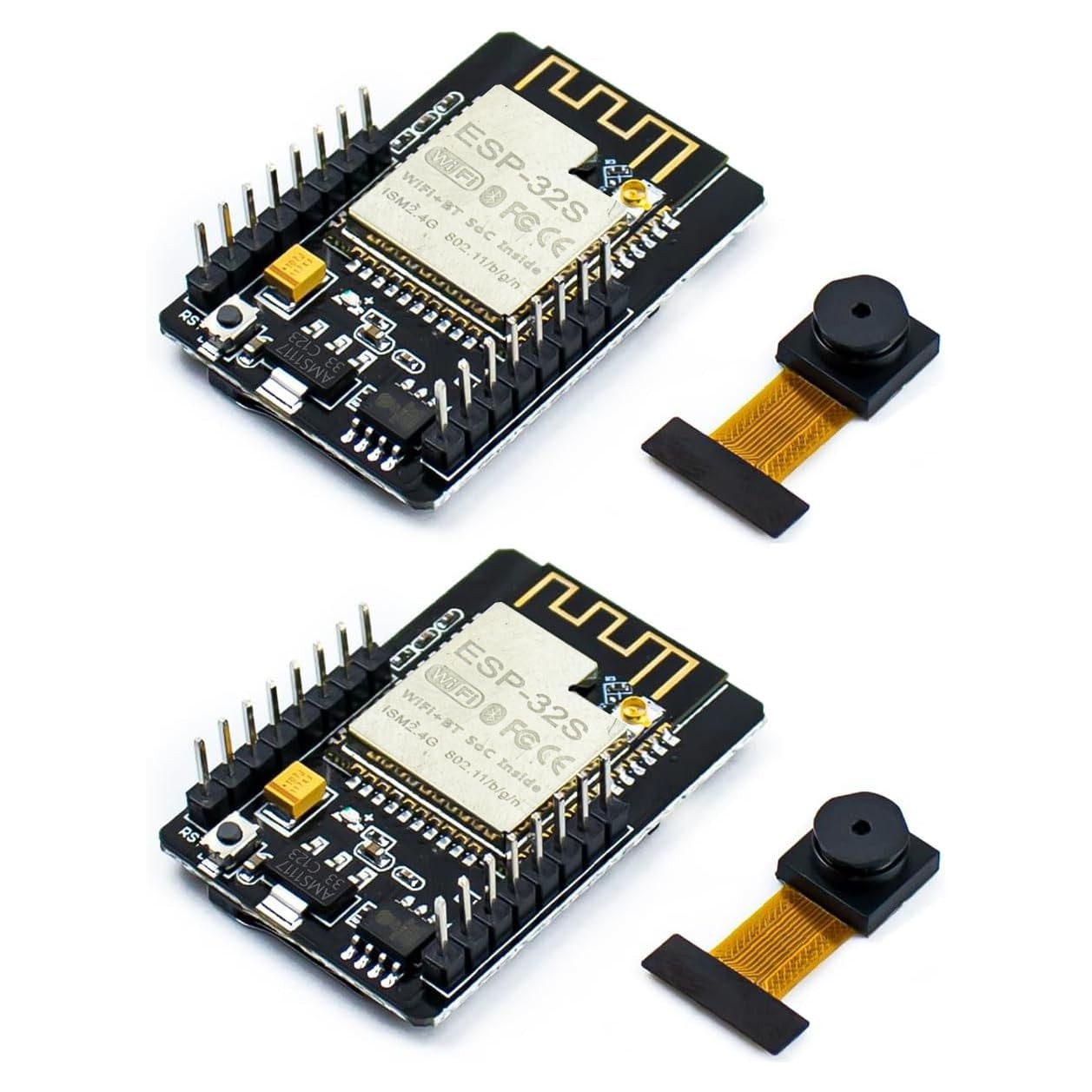

2 PCS ESP32CAM Wireless WiFi Bluetooth Development Board OV Camera Module
Price: US $28.09
Minimal Ebony Template 2Pcs ESP32-CAM Wireless WiFi+Bluetooth Development Board with OV Camera Module Compatible with Arduino
Experience confidence and convenience at every step.
Item Synopsis
Parameter： Use low-power dual-core 32-bit CPU, which can be used as an application processor The main frequency is up to 240MHz, and the computing power is up to 600 DMIPS Built-in 520 KB SRAM, external 8MB PSRAM Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces Support OV2640, OV3660 and OV7670 cameras, built-in flash Support picture wireless upload Support TF card Support multiple sleep modes Embedded Lwip and FreeRTOS Support STA/AP/STA+AP working mode Support Smart Config/AirKiss one-click network configuration Support secondary development Specifications Working voltage 4.75-5.25V SPIFlash default 32Mbit RAM internal 520KB + external 8MB PSRAM Support interface (2Mbps) UART, SPI, I2C, PWM Support TF card, maximum support 4G IO port 9 Serial port rate default 115200bpsPower consumption Turn off the flash: 180mA5V Turn on the flash and adjust the brightness to the maximum: 310mA5V Deep-sleep: The lowest power consumption can reach 6mA5V Moderm-sleep: the lowest can reach 20mA5V Light-sleep: the lowest can reach 6.7mA5V Security WPA/WPA2/WPA2-Enterprise/WPS Working temperature -20 ℃~ 70 ℃ Storage environment -40 ℃~ 125 ℃,
