Manufacturer Part Number: RFWLPCAB240PIGTS9
High gain outdoor log periodic antenna kit for the following cellular devices: Verizon Jetpack Hotspot (Netgear AC791L), AT&T Nighthawk Hotspot (Netgear ATLAS M1) -MR1100, AT&T AirCard 779S Hotspot, R50X, AT&T Unite Explore Hotspot (Netgear 815S)- AC815S, Verizon Ellipsis Jetpack (MHS815L), Verizon Jetpack MiFi 7730L, Netgear LB1111 4G LTE Modem, Nighthawk M2 MR2100 Mobile Router, Netgear Aircard 810s Mobile Hotspot -AC810S,Netgear AirCard 791S Mobile Hotspot - AC791S, LB1120, Netgear Mingle AirCard 778S 4G LTE Mobile Hotspot, Netgear DC112A AirCard Smart Cradle, AT&T USB800 4G LTE Global USB Modem, Sprint MiFi 8000 Mobile Hotspot.
Compatible with: AC791L, R50X, 779S, AC815S, MR1100, MHS815L, 7730L, LB1111, AC810S, AC791S, LB1120, 778S, MF971V, DC112A, MR2100, LB1120, LB2120, MF970, MF910, ZTE MF287 MF282 4G LTE Wireless Router.
Key Features
- Operates at all frequency bands (698-960MHz / 170-2700 MHz)for all US and Canada cellular operators.
- Offers 12 dBi gain.
- Includes pigtail with TS9 connector.

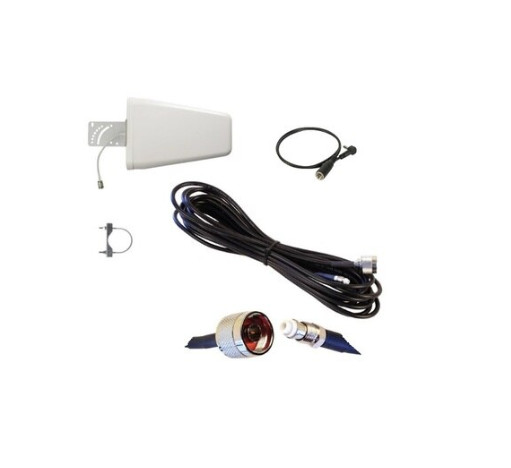

Package Contents
- 12 dBi Wide Band log periodic directional antenna (RFWLP072711DNF)
- 20 ft 240-series low loss coaxial cable with N-Male / FME-Female connectors (RFWCAB240NMFMF020)
- External antenna adapter pigtail to connect your device (RFWPIGX059)
Key Parameters Device Type 4G LTE Antenna, Wi-Fi Antenna Compatible Brands For Universal Connectivity 4G Antenna Properties Yagi Antenna Additional Features Mounting Kit Included Frequency Bands LTE Band 2, LTE Band 4, LTE Band 5, LTE Band 12, LTE Band 13, LTE Band 10, LTE Band 14, LTE Band 17, LTE Band 23, LTE Band 25, LTE Band 26, LTE Band 27, LTE Band 29, LTE Band 30, LTE Band 35, LTE Band 36, LTE Band 37, LTE Band 66, LTE Band 70, LTE Band 85, LTE Band 41, 2.4 GHz Electrical Specification Frequency 698 - 960 MHz 1710 - 2700 MHz Gain 10 dBi 12 dBi Vertical/Elevation (EL) Beam Width 45 deg Horizontal/Azimuthal (AZ) Beam Width 70 deg VSWR 1.7 : 1 Impedance 50 Ohms Polarization Vertical Max Power 50 Watts Front-to-Back Ratio (F2B) 16 dB Mechanical Specification Connector Type N-Female Cable Type RG-58 Cable Length 1 ft Mounting Pole/ Mast Mount (1.2-2 in. dia) Construction Material UV ABS Please message us for questions on the specs.
