Main Features
5.8GHz, Max. 2000mW output power;
Aluminum-alloy case by CNC, anti-interference;
Small size, Safe & Power saving;
Full kit, easy to install;
For house, office, UAV, IP cameras, RC equipment....
Specifications
Operating range : 5000~5875M hz
Channel width: 20Mhz&40Mhz&80Mhz
Supported standards: IEEE 802.11a/n
Operation mode: Bi-directional, half-duplex, time division duplex
Connector type: To radio SMA female (hole inside). To antenna RP-SMA male (pin inside)
Output power: 2000mW (33dBm)
Input power: 0 ~ 20dBm
Transmit gain: 15 -18dB
Receiver gain: 11 -14dB
Noise figure: ≤3.5dB typical
Power adapter: 12V/2A DC, 100~240V
Operating temperature: -20°C to +70°C
Operating humidity: Up to 75% relative humidity
Material: Cast aluminum
LED light: Power status LED and activity status LED
Booster weight: 110g
Booster size: 8.4 x 5.4 x 2cm
Package weight: 390g
Package size: 21.3 x 13.5 x 5cm
Package included:
1 * SH58Gi2000 WiFi Signal booster
1 * power adapter (US Plug)
1 * 20cm RG316 cable
1 * 6dBi omni antenna
1 * English user manual
Attention:
The power amplifier is not suitable for use in high power devices
Use
Step 01: Remove the Antenna from the Wireless Router (Access Point).
Step 02: Use this cable (RG316) to connect Amplifier 'input' port with router 'output' port: note that cable is in standard spec.
Step 03: Connect the antenna with 'output' port of Amplifier.
Step 04: Power the amplifier with the matching source adapter: DC 12V.
5.0-5.8Ghz frequnecy band, Max. 2000mW (33dBm) output power; Low noise, High Gain, High Performance; With Power and Signal Activity LED Indicators; Aluminum-alloy case by CNC, anti-interference; Small size, Safe & Power saving; Full kit, easy to install; For house, office, UAV, IP cameras, RC equipment, etc.
Which works together with an indoor Wireless Access Point to improve its operation range and performance. In certain conditions the unit is able to double the range of the wireless device. Full power, easy installation and operation; Strengthen radio signal to Increase the effective range and coverage area for Wi-Fi communication; Save wiring costs, easily build a wireless infrastructure for home or business use; Make broadband wireless application in possible coverage
Maximum output power of 2000mW by the Booster. The input power range for this model is 0-20dBm, around 12-15dB is the best. Too low input power, the output power of booster will be low or does not work, if too high(near to 20dBm or up), the booster just as a connection device, does not work, but will weak the signal because of signal attenuation

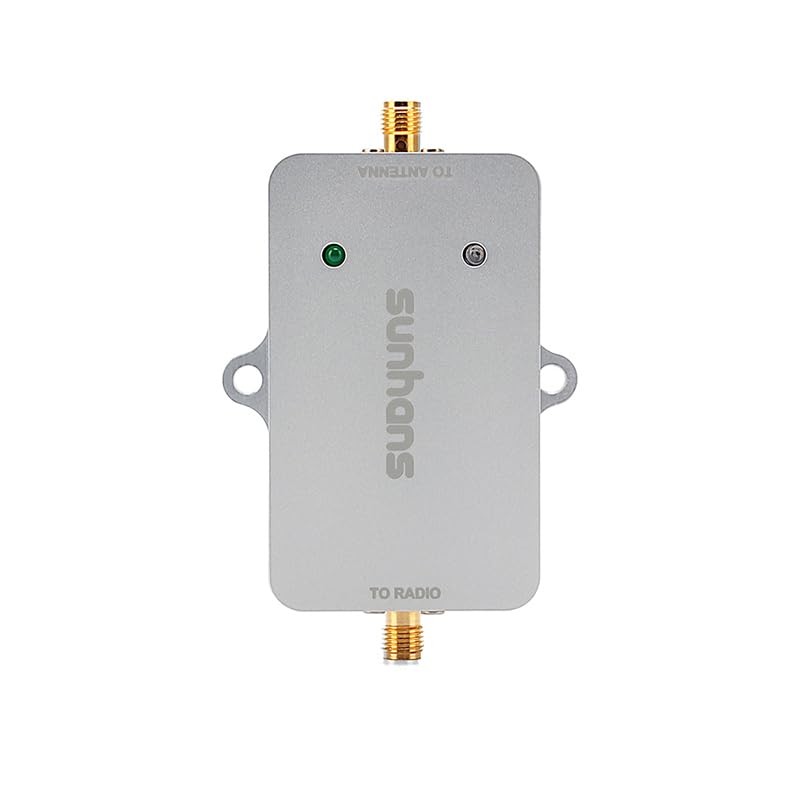

SH58Gi2000 WiFi Booster is an indoor solution 2000mW (33dBm) bi-direction Booster designed for 5.8GHz IEEE 802.11a/n wireless LANs. Transmit gain: 15 - 18dB, Receiver gain: 11-14dB, This unit comes with an easy plug-and-play installation
Package Contents: 1 x SH58Gi2000 WiFi Booster; 1 x RG316 cable with SMA connectors (20cm); 1 x 6dBi omni antenna; 1 x power supply; 1 x user manual
