2000w Mining Power Supply 8 GPU 2000W Modular PSU for Bitcoin Ethereum Miner 110V (100~264v) AC to DC Full 150A PSU GPU BTC ETH Graphics Video Card 2U
About this item
【Professional Supply】This power supply is rated 2000 watts. single fan multi-channel power supply supports 8 high-end graphics cards.(Input Voltage of 110V ; Input Voltage of 220V, 150A)
【Energy saving】The conversion rate is as high as 95% or more (while the conversion rate of passive PFC is often below 70%), which can reduce electricity bills. More energy saving! More environmentally friendly
【PFC】This power supply adopts an active PFC circuit, Compared with passive PFC, its input voltage can be from 100V to 264V, while ordinary passive PFC power supplies cannot work when the voltage is lower than 180V
【Over Voltage Protection】Perfect function for protecting Miners, when circut is malfunction or power supply has higher inside temperature, it will shut off automatically to protect antminer
【NOTICE 】Please note that because the power supply is running at high power, a high-speed cooling fan is equipped to effectively dissipate heat. The sound will be a bit loud during the power supply operation. Please don't worry, this is normal.

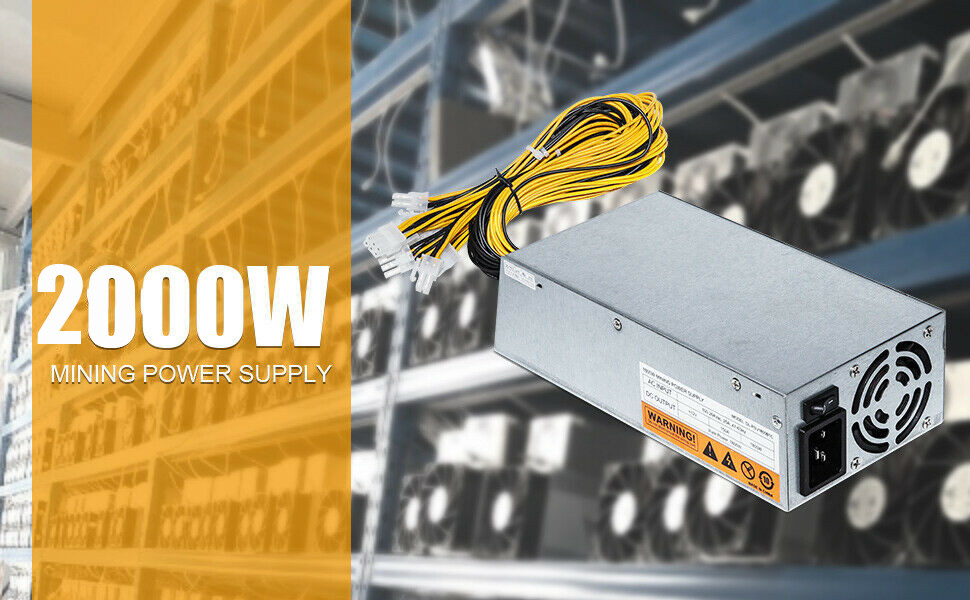

2000W Mining Power Supply
2000w Gold Mining Power Supply Bitcoin Ethereum Miner 110V (100~240v) AC to DC Full 150A PSU GPU BTC
single fan multi-channel power supply, supports 8 high-end graphics cards
Air Blast Cooling Heat Dissipation Mode
Fan Size: 60*60mm high
speed fan
Airflow: 15000±10%
Noise Level: 86 dBA 10XPCle 6Pin
Cable Length:38cm
Connectors:6 PIN
Number of Interfaces:10
High Power Supply Speclal Cable
length:4.6ft/140cm
Adapters:Thicken the pure copper power cord to avoid current overload
Overpower protection
The power supply can be used to limit the output current to no more than 10%-50% of the rated output power.
Short circuit protection
When the +12.4V output is short-circuited, it will be short-circuit
Overcurrent protection
When the output current exceeds 10%-50% of the rated output current, it will over-current protection
Rated voltage: 110/230vrms
Voltage range: 100-264vrms
Rated frequency: 50Hz
Maximum input current: 25A
Output voltage: +12.4V
Maximum load: 145.2A
Rated Output Power:2000W(Max)
Heat Dissipation Mode: Air Blast Cooling
FanSIZE: 60x60high speed Fan
Fan Speed:15000rpm(+/-10%) RPM
Sound Level:86dBA
Rated voltage 110/230vrms Voltage range 100-264vrms Rated frequency 50Hz Maximum input current 25A Output voltage +12.4V Maximum load 145.2A Rated Output Power 2000W(Max) Heat Dissipation Mode Air Blast Cooling
