Product feature

1. Keep optical transmission performance of optical fiber
2. Provide safe protection to optical fiber splicing
3. Air-proof configuration keeping the splice point's good resistance of humidity and temperature
4. Clear sleeve make it easy to detect splice before shrinkage
5. Easily use and avoid any damages to the optical fiber during installation
6. Operating temperature ranging from -45°Cto 100°C
7. Minimum fully recoverytemperature:120°C
8. Strength member is made from "Full hard" stainless steel of 304 grade and is ground at the edges before polishing to make it completely burr free to avoid rupturing during shrinking. 304 grade gives better corrosion resistance, even in coastal environment. Resistant to heat shocks, no cracking dripping or flowing
9. Hot melt adhesive tube made from polyolefin Ethyl Vinyl Acetate copolymer bonds both to the fiber and heat shrinkable outer tube to effectively encapsulate fusion splice.
10. Long term proven performance, exceeds industry standards with satisfied customer

Product Specification

1. Outer diameter after recovery: OD2.4 mm +/- 0,1mm
2. Hole diameter before recovery: OD1,5 mm
3. Pin diameter: OD 1.0 mm
4. Minimum installation temperature: 110°C
5. Max installation time: 60 seconds
6. Standard color: Clear
7. Compliant norms: UL224,MIL-I-23053, GR-1380-CORE, ZN-96 TPSA-006
8. RoHS compliant
9. Packing: 100 pcs per bag (Others for special order)

Code:GT-XX

Fiber Optic Fusion Splice Protection Sleeves

Series GT

Fiber size: 250/900

Part No.

L

Lp

D

Dp

d

Stock

GT-60A(popular)

60

54

3.0+/-0.1

1.5

1.3

√

GT-55A

55

50

3.0+/-0.1

1.5

1.3

GT-50A

50

45

3.0+/-0.1

1.5

1.3

GT-45A

45

40

3.0+/-0.1

1.5

1.3

√

GT-40A

40

35

3.0+/-0.1

1.5

1.3

√

GT-60B(popular)

60

54

2.5+/-0.1

1.2

1.5

√

GT-55B

55

50

2.5+/-0.1

1.2

1.5

GT-50B

50

45

2.5+/-0.1

1.2

1.5

GT-45B(popular)

45

40

2.5+/-0.1

1.2

1.5

√

GT-40B(popular)

40

35

2.5+/-0.1

1.2

1.5

√

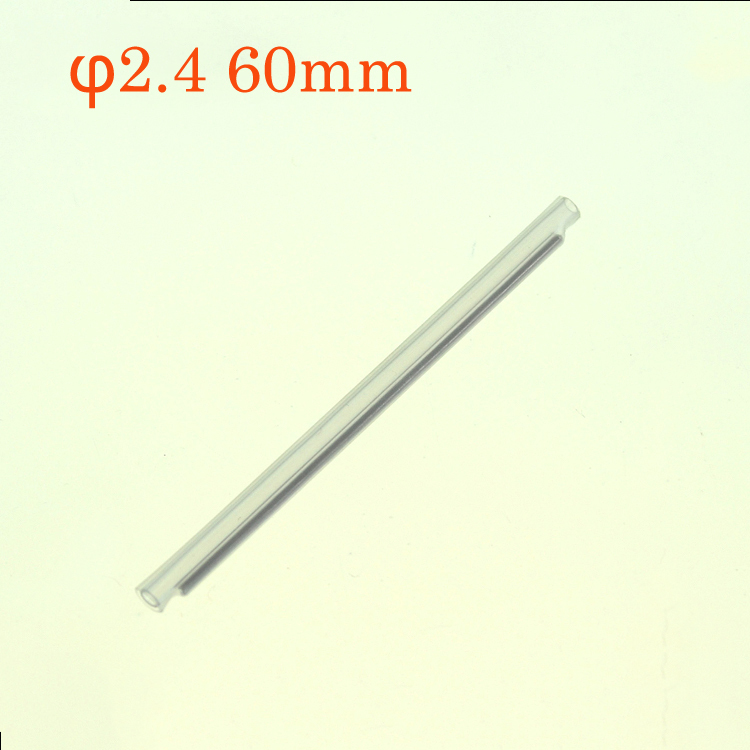

GT-60C

60

54

2.4+/-0.1

1.0

1.5

√

GT-55C

50

45

2.4+/-0.1

1.0

1.5

GT-45C

45

40

2.4+/-0.1

1.0

1.5

√

GT-40C

40

35

2.4+/-0.1

1.0

1.5

*Other size on special order. All dimensions in mm.

L - Length after recovery
Lp - Pin length
D - Outer diameter after recovery
Dp - Pin diameter
d - Hole diameter before recovery
XX - Color

√- Stock
- Production

Packing Contents

• 200 pcs x (GT-60C) Fiber fusion splice protector
