Product description 1 Compatible Devices 2 Compatible SSD Sizes 3 Compatible Types

1. Why can't the enclosure reach 20Gbps?

This M.2 enclosure can only reach up to 20Gbps transfer speeds with USB 3.2 Gen 2x2 (20Gbps) ports. Other ports including Thunderbolt 3 and Thunderbolt 4 can only run 10Gbps at max due to the limitation on data communication protocols.

2. Can this M2 enclosure support 20Gbps with MacBook?

No, the item can only reach 10Gbps on MacBooks since MacBooks generally have Thunderbolt 3 or Thunderbolt 4 ports, which do not support 20Gbps when negotiated with the enclosure.

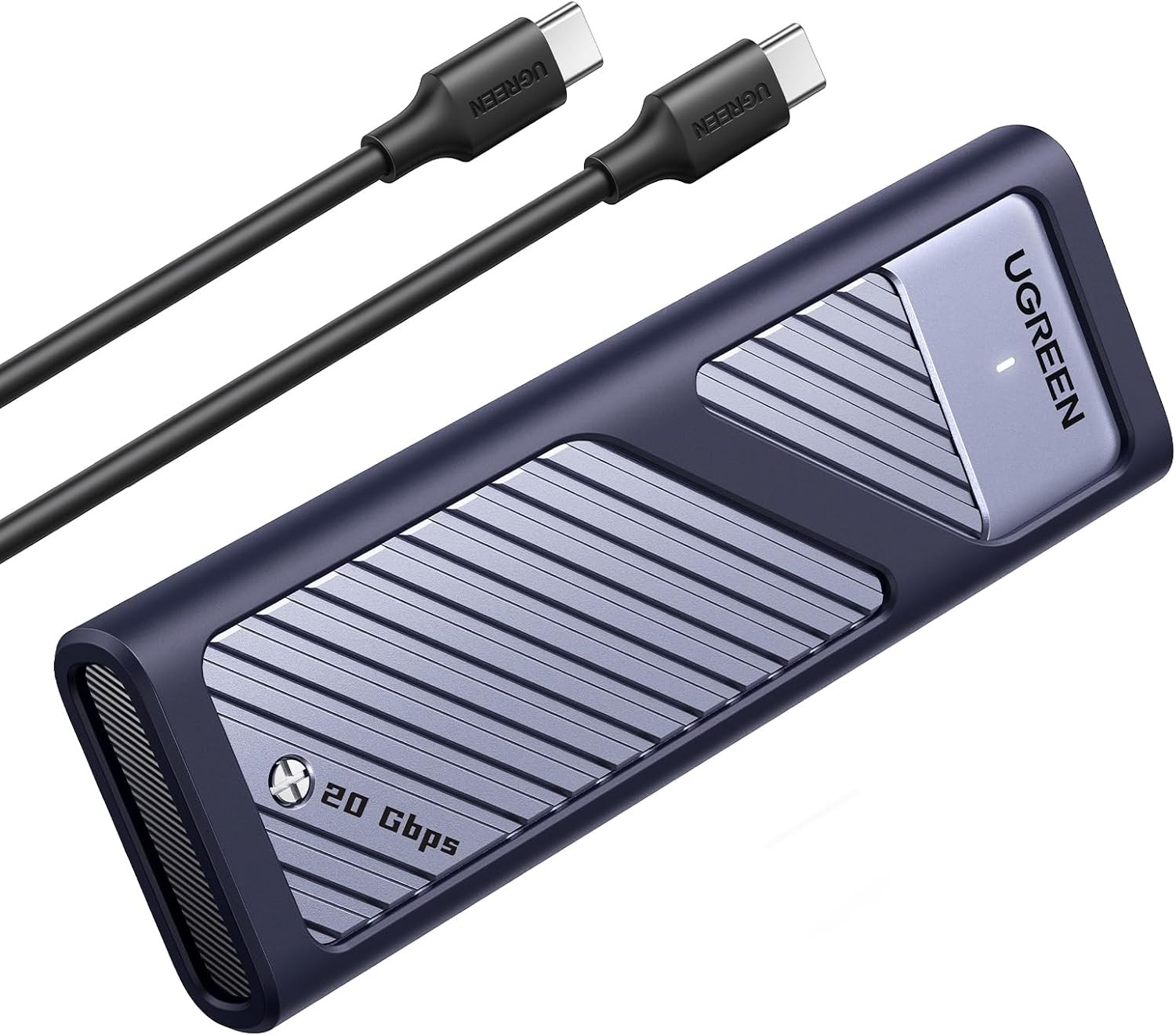

• Designed for NVMe and SATA SSD:This M.2 enclosure supports PCIe NVMe or SATA NGFF SSD up to 8TB in 2230/2242/2260/2280 size. Applicable for Windows, Mac OS, Linux, Android, IOS systems. (Note: m-SATA is not supported)
• 20Gbps Lightning-Fast Transfers: This M2 enclosure delivers up to 20Gbps transfer speeds over USB 3.2 Gen 2x2 (20Gbps) connections. Other interfaces, including Thunderbolt 4, run at 10Gbps，Note: Please make sure your usb interface protocol is USB3.2 Gen2*2 in order to reach 20G transfer speed
• Effective Heat Dissipation: This portable SSD Enclosure USB C has a cool aluminium case with a thermal pad that maintains good contact with the grooved case, keeping it cool at high speeds and protecting data from high temperature damage
• Secure & Stable Transmission: The 20Gbps nvme enclosure supports UASP and Trim, built-in advanced RTL9210B chip with short-circuit and over-current protection, which achieves the safety and stability of the data transmission. The aluminium case with surrounding silicone cover prevents damage from accidental drops
• Easy to Use: Plug and play, no additional power supply required; no driver required. Only one screw is needed to fix the M.2 SSD, which is simple and convenient (Note: SSD not included)
