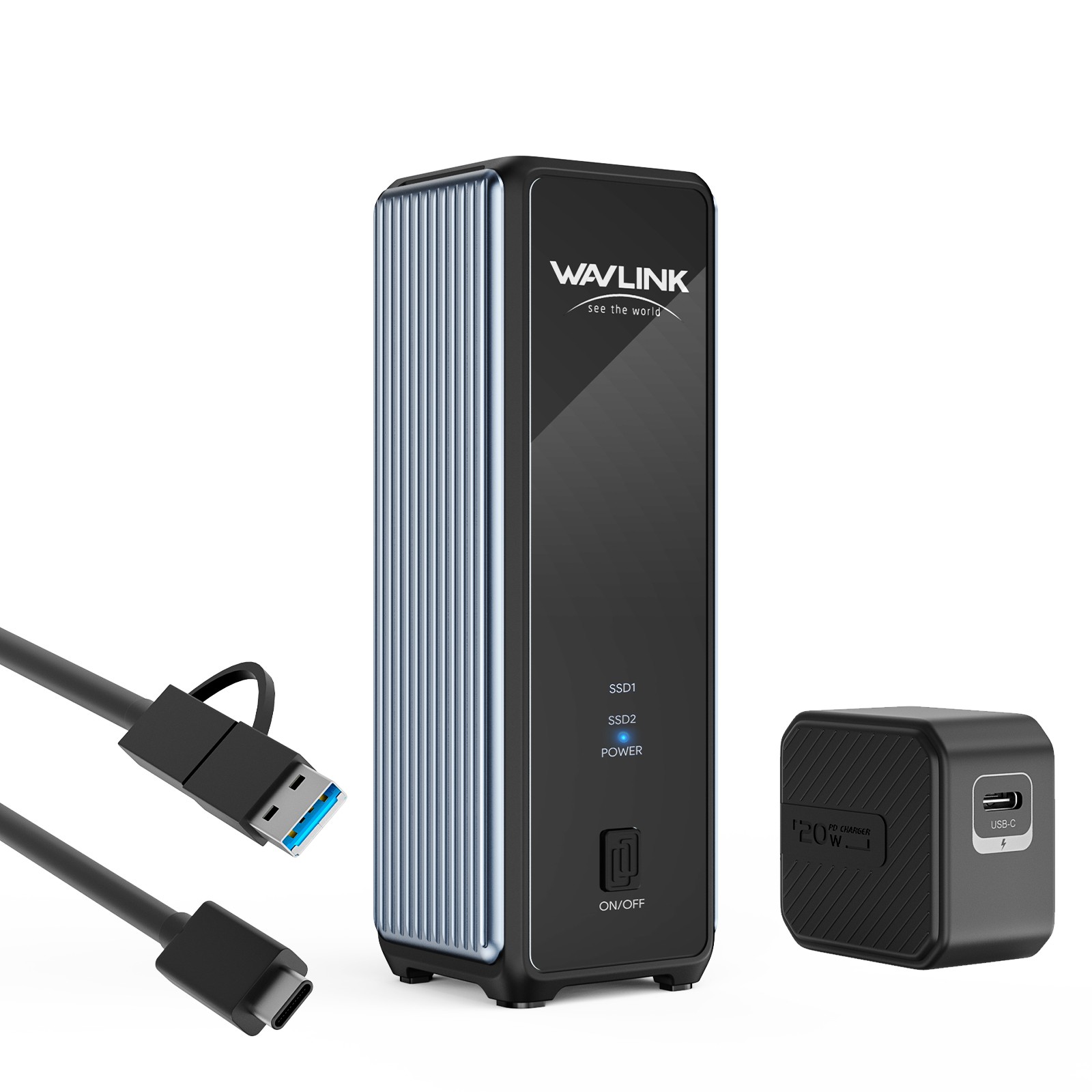

WAVLINK Dual M.2 NVMe SSD Enclosure, USB3.2 Gen 2x2 20Gbps, PCIe NVMe M Key & B+M Key,
Support UASP & Trim, RAID 0, Up to 16TB (Single 8TB), OTG Compatible
NVMe-Only Compatibility: Designed exclusively for PCIe NVMe SSDs, this dual-bay enclosure supports M-Key and B+M Key
drives in 2230/2242/2260/2280 sizes. SATA drives are not supported. Install one or two NVMe SSDs to quickly expand storage for laptops,
desktops, or mobile devices—all with plug-and-play convenience.
20Gbps USB-C Speed: The USB3.2 Gen 2x2 USB-C port delivers up to 20Gbps, allowing a single SSD to reach around 1800MB/s.
When two SSDs are installed, they share the full 20Gbps bandwidth for steady high-speed transfers. Includes a USB-C to C cable
with a detachable USB-A connector—USB-A ports support up to 10Gbps for broader compatibility.
Large 16TB Capacity: Each slot supports up to 8TB, offering a total of 16TB when using two NVMe SSDs. RAID 0 is available for
users who want faster combined performance and expanded capacity, perfect for creators handling large files or frequent backups.
Smart Cooling Control: A solid aluminum body and built-in cooling system help keep temperatures stable during long transfers.
The fan adjusts its speed automatically—quiet during light tasks and stronger when the enclosure warms up—to maintain reliable performance.
Broad Device Support: Compatible with Windows, macOS, and Android, and supports OTG for direct access from phones and tablets.
UASP and Trim help improve transfer responsiveness and maintain long-term SSD RapidFire U2DA
2.Ports: SSD1 M.2 slot; SSD1 Indicator; SSD2 Indicator; Power Indicator; Power Button; SSD2 M.2 slot; USB-C; PD-IN
3.Unit Size: 1.6 x 5.0 x 1.7 inch
4.Housing Material: Aluminum alloy with ABS plastic
Features
-Transform two M.2 NVMe SSDs into blazing-fast, ultra-reliable, and fully portable standalone drives!
-Supports mobile OTG function, enabling easy reading and writing of data from mobile devices to the hard disk.
-USB-C interface with a transfer rate of up to 20Gbps, compatible with Thunderbolt 5/4/3, USB4/3.2/2.0 computers.
-A single drive supports a maximum sequential read speed of 2000MB/s and a maximum sequential write speed of 1900MB/s.
-Compatible with M.2 M-key and M&B-Key NVMe form factor sizes:2230/2242/2260/2280.
-Plug and play, no drivers needed.
In the Box
1 x USB-C 20Gbps Dual-Bay PCIe NVMe SSD Enclosure
1 x USB-C to USB-C with USB-A cable
2 x Thumb Screw (SSD fasteners)
1 x PD Power Adapter
1 x USB-C to USB-C Charging Cable
1 x Quick Start Guide
Warm Tips:
1. NVMe Compatibility & Supported Sizes: This enclosure works with PCIe NVMe M.2 SSDs only (M-Key / B+M Key).
Supports 2230 / 2242 / 2260 / 2280 sizes. SATA M.2 drives are not supported.
2. Speed Limits by Port: The USB-C port supports up to 20Gbps. When using the included USB-A connector, the maximum speed is 10Gbps.
3. Bandwidth & Speed: A single SSD can reach top speeds around 1800MB/s or higher. With two SSDs installed,
both drives share the same 20Gbps bandwidth, so speed is split during simultaneous use.
4. Supports RAID 0, which combines two SSDs into one larger and faster drive.For example, two 8TB SSDs can be merged into a single 16TB volume.
5. Drive Initialization: New SSDs may need to be initialized or formatted in Windows or macOS before use.
