⚙️ Comprehensive Technical Specifications

• Target Retail Line: Acer KA242 / Nitro VG240Y / CB242Y Series
• Acer Official SKU / P/N: KL.23806.006

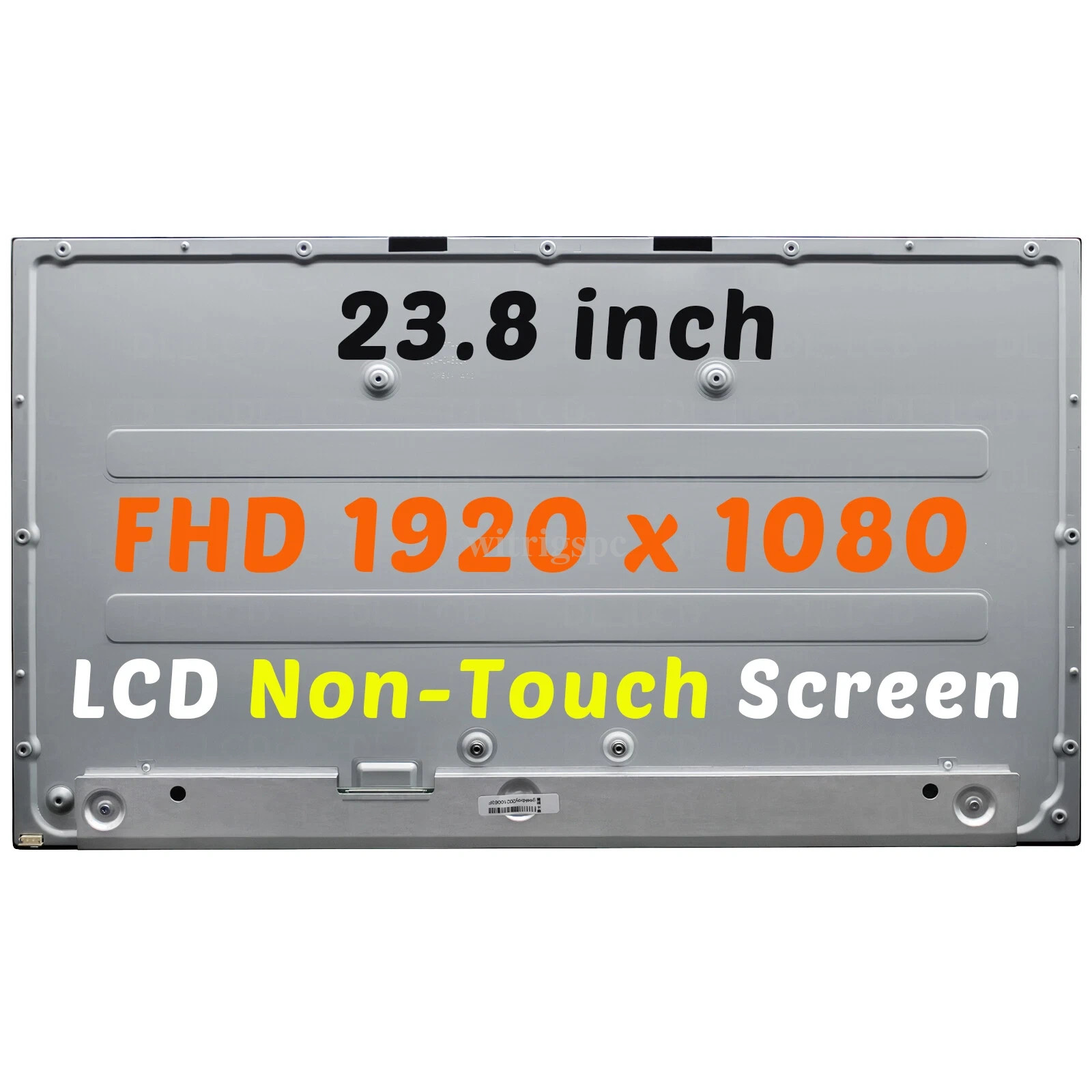

• Internal Manufacturer Model: LTM238HL06 / LTM238HL06-M04 (Samsung OEM)
• Screen Diagonal Size: 23.8 Inches
• Display Technology: IPS / PLS (Plane-to-Line Switching, 178°/178° Ultra-Wide Viewing Angle)
• Native Resolution: 1920 × 1080 Pixels (Full HD / 1080P)
• Supported Refresh Rates: 60Hz - 75Hz (Depends on your monitor's main logic board AD revision)
• Signal Interface: 30 Pins eDP Connector (Standard high-speed bandwidth port)
• Aspect Ratio: 16:9 Widescreen
• Static Contrast Ratio: 1000:1 (Typical Static)
• Luminance (Peak Brightness): 250 cd/m² (Typical)
• Response Time: 14ms (Typical Base / GtoG via Overdrive can reach lower)
• Physical Trait: Three-Side Borderless / Frameless Flat Glass
• Surface Treatment: Anti-Glare / Matte (None-Glare Hard Coating)

🖥️ Absolute Compatibility MatrixThis screen module is strictly molded to restore display performance for the following retail sub-models:

• Acer KA242 Series: KA242, KA242Y, KA242YQ, KA242YV, KA242Yb
• Acer Nitro VG240Y Series: VG240Y, VG240Yq, VG240Yv (Nitro Gaming Entry Model)
• Acer Professional Series: B247Yq, CB242Yq, K243Yq
• Cross-Brand Note: Due to the versatility of the Samsung LTM238HL06 cell, this panel is also natively compatible with various HP EliteOne 800 G3 and Lenovo AIO 520 series non-touch versions.

⚠️ Anti-Fraud Policy & Return Shield (Read Before Buying!)By placing an order, the buyer acknowledges and agrees to the following statutory terms:

1. The "Visual Verification" Mandate: Monitor brands use different internal screen vendors (e.g., BOE, Innolux, Samsung) even for the exact same monitor model across different production years. Do NOT purchase based on the monitor model number alone. You MUST dismantle your monitor shell and match the white barcode label on the back to KL.23806.006 or LTM238HL06.
2. Touch vs. Non-Touch Warning: This is a Non-Touch Version screen panel. If your original monitor or All-in-One PC has a touchscreen digitization layer embedded, this screen will NOT fit or function.
3. The Ribbon Connection Check: This panel utilizes a standard 30-Pin eDP interface. It will not adapt to older 40-pin or 20-pin legacy LVDS internal controller cables.
4. No Installer Liability: LCD glass is exceptionally sensitive to localized pressure. Uneven hand force during front bezel snapping will rupture the inner TFT matrix layers, causing localized black bleeding spots or vertical lines. We highly recommend professional technician installation. We hold ZERO liability for any installation-induced physical breakage or glass fractures.
