24/20-Pin ATX DC Power Supply Diagnostic/Breakout Board ModuleProduct Description

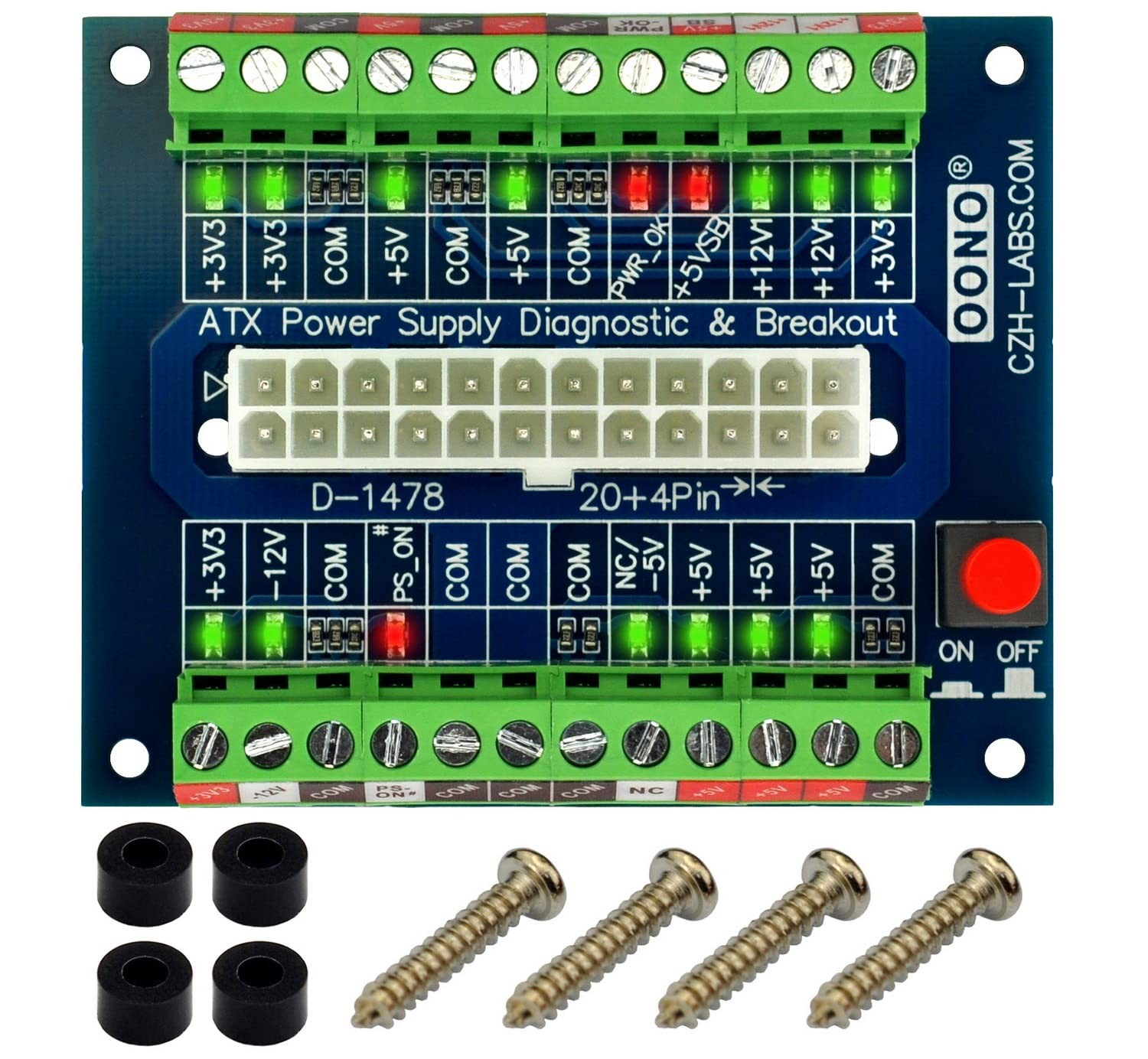

24/20-Pin ATX DC Power Supply Diagnostic/Breakout Board Module. 1, 24-pins Standard ATX Connector, support 20 / 20+4 / 24 pins wire header. With latching button switch to control ATX power supply output ON/OFF. 2, Total 16 LEDs, it is convenient for you to diagnose the functions of all pins except COM/GND, therefore, if the output of any one wire of your ATX power supply is faulty, it can be seen at a glance. 3, High quality screw terminal blocks. Each terminal position support current output maximum 10 Amp. Pitch 5.0mm/0.197 inch, Wire range 26AWG to 12AWG / 2.5mm square. 4, Packing list: 1x Diagnostic breakout board, 4x Screws, 4x Nylon spacers. 5, Special Note: The PS_ON LED lights up when the output is OFF and goes out when the output is ON, this is just the opposite of the indication status of other LEDs. Since many new ATX power supplies no longer provide output -5V, the NC/-V LED will not light up when connected to this type ATX power supply.
Main Features
- 24-pins Standard ATX Connector, support 20 / 20+4 / 24 pins wire header. With latching button switch to control ATX power supply output ON/OFF.
- Total 16 LEDs, it is convenient for you to diagnose the functions of all pins except COM/GND, therefore, if the output of any one wire of your ATX power supply is faulty, it can be seen at a glance.
- High quality screw terminal blocks. Each terminal position support current output maximum 10 Amp. Pitch 5.0mm/0.197 inch, Wire range 26AWG to 12AWG / 2.5mm square.
- Packing list: 1x Diagnostic breakout board, 4x Screws, 4x Nylon spacers.
- Special Note: The PS_ON LED lights up when the output is OFF and goes out when the output is ON, this is just the opposite of the indication status of other LEDs. Since many new ATX power supplies no longer provide output -5V, the NC/-V LED will not light up when connected to this type ATX power supply.
