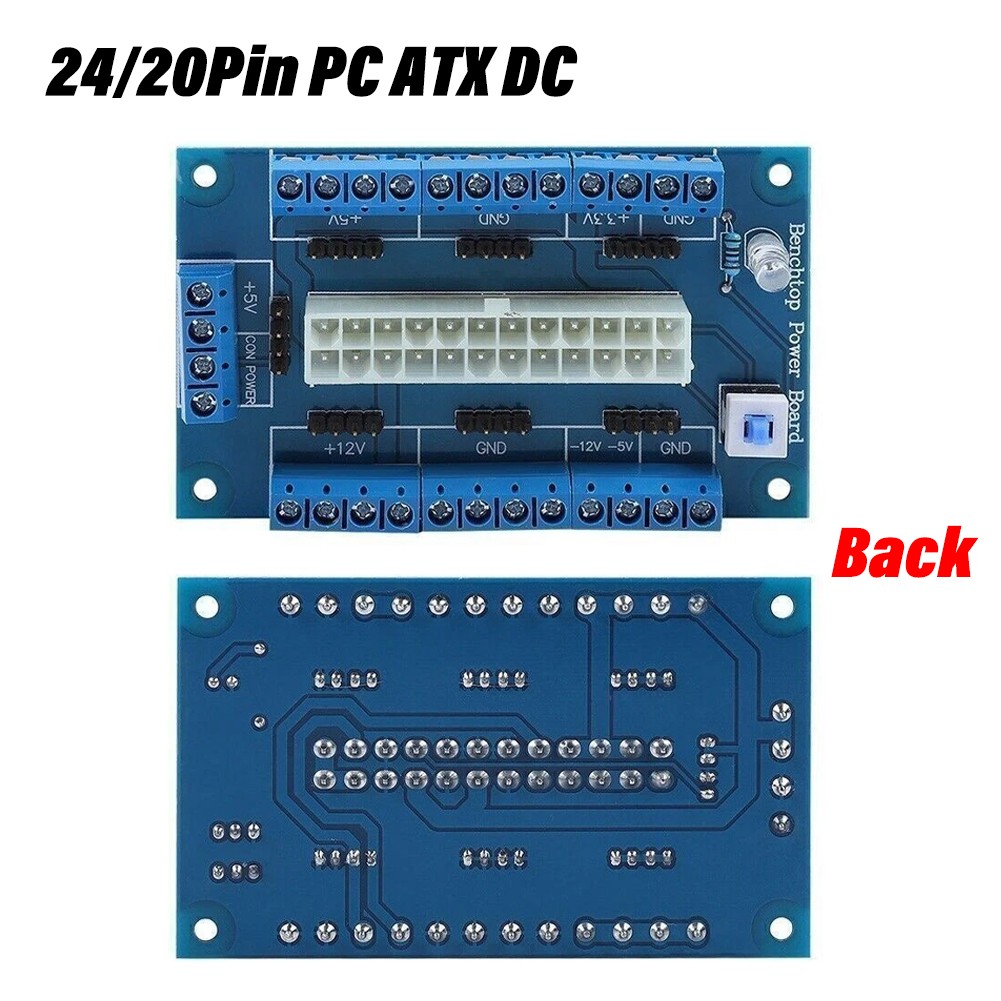

Product DetailsSpecification:
Type: ATX Power Supply Module
Material: Circuit Board
Size: Approx. 52 * 87mm / 2 * 3.4inFeatures:
24-pin standard ATX connector - Compatible with 20 / 20 + 4 / 24 pin headers.
With the lock button switch to easily control power ON / OFF.
High quality - 24Amp (per position) screw terminal block.
Easy and convenient to use.
Indicator to clearly show the status of the module.
1. Made of high quality materials, quality guaranteed
2. Beautiful appearance of the product
3. Electronic 24/20 pin ATX DC power adapter module, 24-pin standard ATX connector, supports 20/20+4/24 pin header, with power indicator and on/off switch, immediately converts the old ATX power supply to high power DC power supply
4. Multiple output methods, in addition to the terminal cable, there is also a row of pin output
5. With a latching push button switch to control the power on and off
Product parameters：
On/off button
6 +5V / 16A connectors
10 GND / 16A connectors
1 -5V / 16A connector (-5V does not exist on every PC power supply and tends to disappear, if you do not provide this output, this output will not provide anything)
1 x -12V / 16A connector
4 x +12V / 16A connectors
3 x +3.3V / 16A connectors
2 connectors "power connector" in case you want to remotely turn on/off the buttons (then just connect the two external buttons to the connection), so that the power button can be accessed even if the adapter is in the arcade panel
1 X 24 pin ATX connector backwards compatible with ATX 20 pin
Package list:
Module *1
