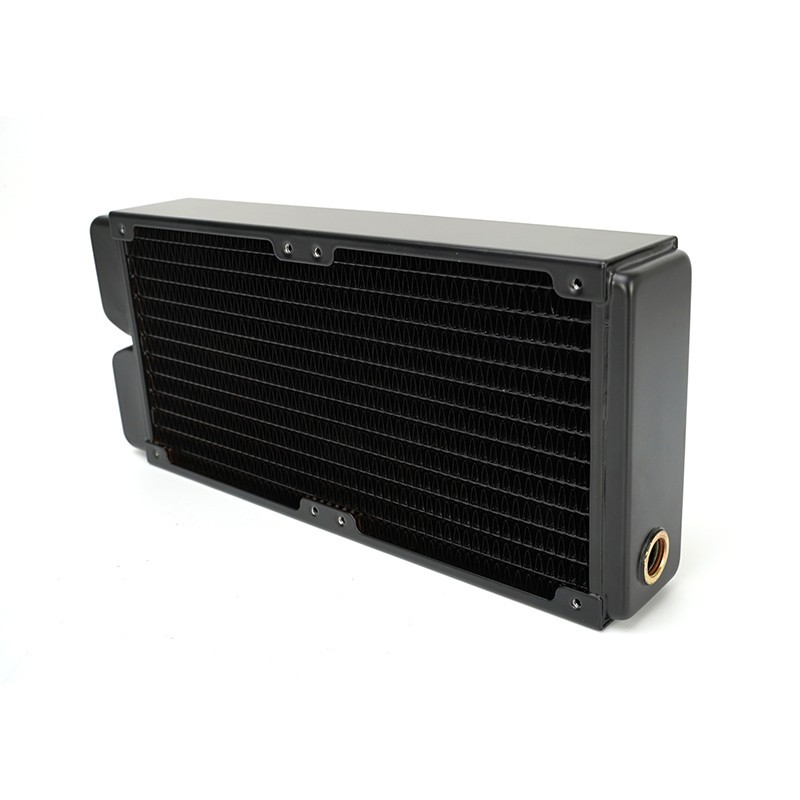

OCOCOO CRD24H5-45R
240mm 5-Port Lead-Free Copper Radiator — 45mm Thick
79.37 dm² Cooling Power — The Ultimate Dual-Fan Performance in79.37 dm²
Cooling Area864g
1.90 lbs5 Ports
Multi-Direction G1/42x120mm
Push-Pull ReadyKey Features📐79.37 dm² Massive Cooling — Near 360mm-Class Performance
45mm thick 240mm rad with 79.37 dm² cooling area rivals many 360mm slim radiators. Handles CPU+GPU loops with thermal headroom to spare — the ultimate 240mm performance radiator.
🔀5-Port Multi-Direction Routing — Your Loop, Your Layout
5 x G1/4 threaded ports give you complete freedom — top x2 for standard routing, side x2 for front-mount chassis, front x1 for drain/fill. No more awkward tube bends.
🌬Push-Pull Ready — 4 Fans Maximum Cooling
At 45mm thickness, push-pull with four 120mm fans (2 push + 2 pull) extracts maximum performance. The dense fin stack rewards airflow — single-side is fine, but dual fans unlock its true potential.
♻Lead-Free Copper + Brass — Medical Grade Materials
Pure red copper high-density fins + anti-corrosion brass chambers. Zero lead, RoHS certified, 100% environmentally friendly. Safe for the most demanding medical, lab, and industrial cooling systems.
🔩All-Copper One-Piece Welded — Zero Leak Construction
High-temperature integrated welding creates a single solid copper structure. No mechanical joints to fail — pure metal-to-metal integrity tested to 0.2 MPa, designed to last a decade or more.
Technical (LxWxH)274 x 120 x 44.5 mm (10.79 x 4.72 x 1.75 in)Weight863.9 g (1.90 lbs)MaterialRed copper fins + brass chambers + steel framePorts5 x G1/4 thread (3 sealing plugs included)Waterways12 channelsHeat Dissipation Area~79.37 dm²Fan Support2 x 120mm (push-pull compatible — 4 fans max)Max Pressure0.2 MPa (factory test) | less than 1 bar recommended long-termColor / FinishBlack / baked paintCertificationRoHS — Lead-Free5-Port Configuration GuidePort LocationRecommended UseTop x2Inlet / Outlet — standard top-mount orientation in most casesSide x2Inlet / Outlet — front-mounted chassis or side-panel routingFront x1Drain / Fill port — quick loop maintenance accessPro Tip:With a 240mm dual-port layout, use top ports for CPU block and side ports for GPU block — clean parallel routing with zero crossover tubing.What's in the Box
- 1x CRD24H5-45R Copper Water Cooling Radiator
- 3x G1/4 Sealing Plugs
- 1x M3 Mounting Screw Set for 120mm fans
Please Note:Only 3 plugs supplied. Additional plugs or fittings for unused ports are sold separately. Fittings, fans, tubing, and coolant are NOT included.⚠ Important Installation Warnings
- Screw Length Limit:Screws must NOT protrude more than5mmpast the fan mounting surface. Exceeding this willpuncture copper tubes— NOT covered by warranty.
- Port Sealing:ALL unused G1/4 ports MUST be sealed before filling. Leaks from open ports are not covered.
- Pressure Limit:Recommended long-term operating pressure is under 1 bar.
- Flush Before Use:Rinse thoroughly with distilled water before first use to remove manufacturing residue.
Thick Rad Family — CRD SeriesModelSizeFansPortsCooling AreaBest ForCRD12H5-45R120mm1x120mm538.55 dm²Compact dm²CPU+GPU Max Cooling
Dispatch TimeWithin 48 hours after payment clearedReturns30-day return. Buyer pays return shipping. Plugs must not have been removed.
Questions? Need advice on your loop configuration?
Message us anytime — we respond within 24 hours!
