CRD28

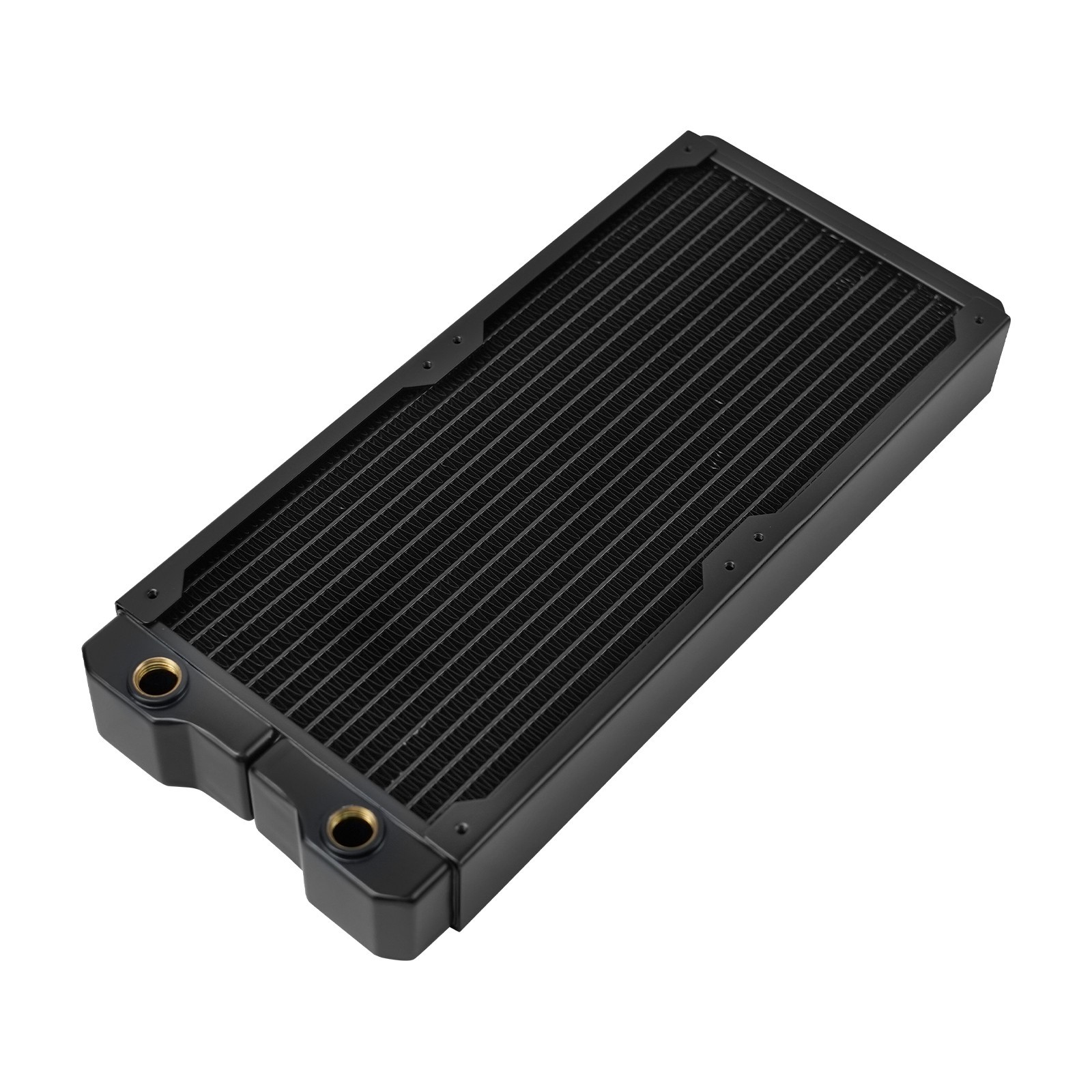

280mm Copper Water Cooling Radiator — 40mm Thick, 2x140mm Fan
137.22 dm² + 16 Waterways — 140mm Fan Performance in a Compact 280mm in137.22 dm²
Cooling Area1,077g
2.37 lbs of Copper2x140mm
140mm Fan Support16 Waterways
vs 12 on 120mm SeriesKey Features📐137.22 dm² — 280mm That Outperforms 360mm Slim Rads
The wider 140mm body + 40mm thickness packs 137.22 dm² into a 280mm frame — that's 63% more cooling than a standard 360mm slim radiator (84 dm²). Fits cases that support 280mm but not 360mm.
💧16 Waterways — Wider Body, More Channels
Unlike the 12-channel 120mm series, the 140mm-class CRD28 packs 16 precision water channels. The extra width allows more channels — lower flow resistance, more even coolant distribution, better thermal efficiency.
🌬140mm Fan Optimized — Quieter Cooling
Two 140mm fans move more air at lower RPM than two 120mm fans. The wider 140mm body fully captures the larger fan sweep. At 1000 RPM, you get ~140 CFM total airflow vs ~100 CFM from 120mm pairs.
🔩40mm Steel Frame — Compact but Tough
Reinforced 40mm steel frame provides rigidity for the wider body. Copper fins + brass water chambers, high-temperature integrated welding. Built to the same factory standards as the 420mm CRD42.
🛠Complete Screw Kit — Push-Pull Ready
Includes 8x M3x30 long fan screws + 8x M3x6 short radiator mounting screws — enough for push-pull dual 140mm fans plus case mounting right out of the box.
Technical (LxWxH)313 x 140 x 40 mm (12.32 x 5.51 x 1.57 in)Weight~1,076.6 g (2.37 lbs)MaterialCopper fins + brass chambers + steel frameConnectorG1/4 thread x 2 portsWaterways16 channelsHeat Dissipation Area~137.22 dm²Fan Support2 x 140mm fans (push-pull compatible)Color / FinishBlack / baked paintScrew Kit — What's IncludedScrew TypeQtyUseM3 x 30mm (long, silver)8 pcsFan mounting (push-pull: 4 fans x 2 screws)M3 x 6mm (short, black)8 pcsRadiator mounting to casePlease Note:Fittings, fans, tubing, and coolant are NOT included.⚠ Important Installation Warnings
- Screw Length:Must NOT exceed5mmpast fan surface. Use included M3x30mm screws. Punctured tubes NOT covered by warranty.
- Case Compatibility:Requires case with native 280mm radiator support (2x140mm layout). Standard 240mm/120mm cases are NOT compatible.
- Fan Compatibility:Designed for 140mm fans only. 120mm fans will NOT align with mounting holes.
- Flush Before Use:Rinse with distilled water before first use.
140mm Fan Radiator Family — CRD28 vs CRD42CRD28 (280mm)CRD42 (420mm)Fans2 x 140mm3 x 140mmDimensions313 x 140 x 40mm455 x 140.5 x 40mmCooling Area137.22 dm²205.34 dm²Best ForMid-tower 280mm cases / CPU+GPUFull-tower / Dual GPU+CPU
Dispatch TimeWithin 48 hours after paymentReturns30-day return. Buyer pays return shipping.
Looking for 140mm fan cooling in a compact form factor?
The CRD28 fits where 360mm can't — and cools better. Message us!
