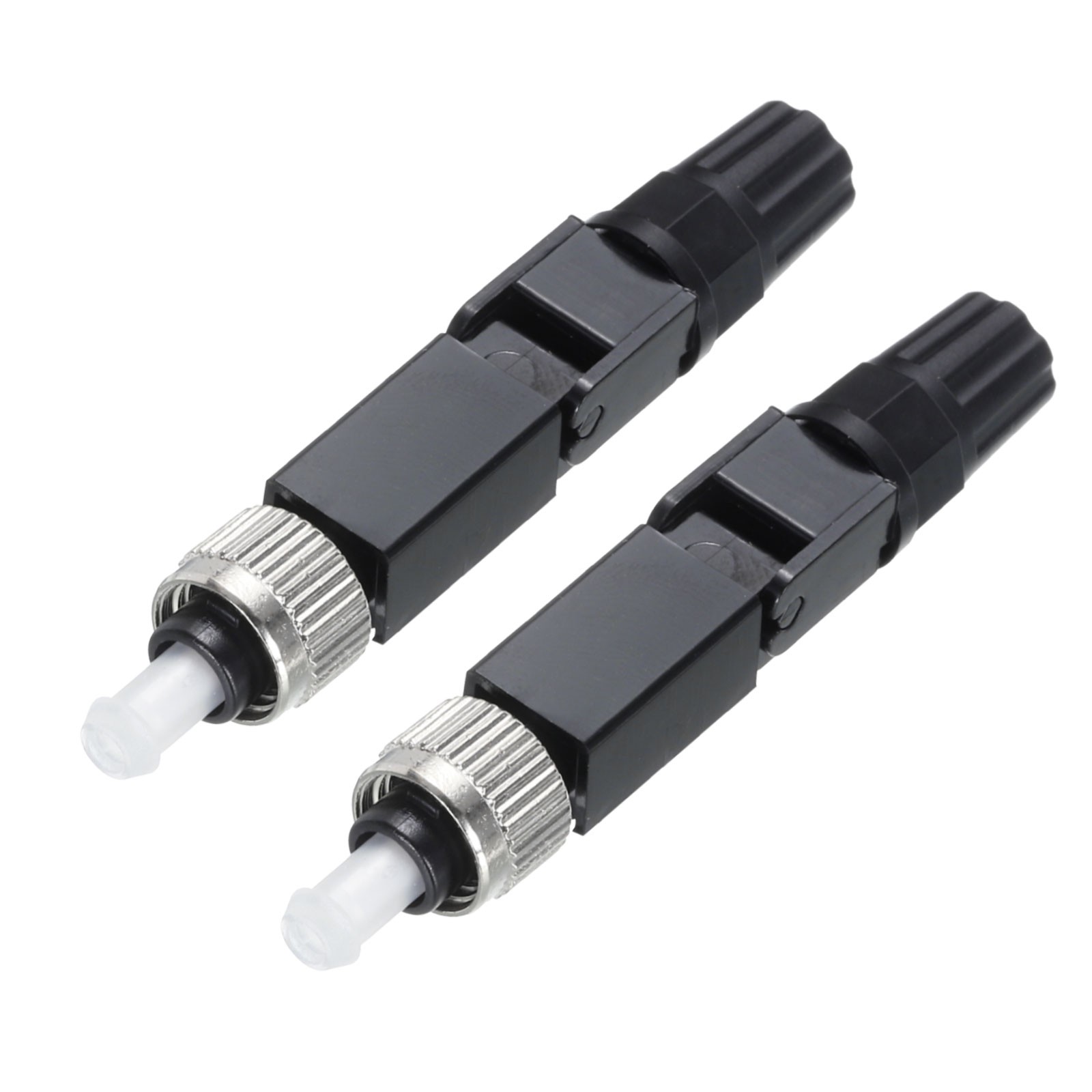

2PCS FC UPC Fiber Optic Quick Connector, FC SM Fiber Fast Connectors Adapter What is this?
Fiber optic quick connectors are used to connect optical fibers to optical fibers or optical fiber pigtails, which are equivalent to making joints widely used in optical fiber transmission systems, CATV networks, telecommunications networks, LAN, etc.What will I get?
The FC fiber quick connector adapter is in size: 57.5x8.5mm/2.26x0.33inch; Style: Fiber Fast Connector; Connector Polish: FC/UPC, Insertion Loss: AVG≤0.3dB, MAX0.5dB; Return Loss: ≥50dB; Fiber Type: Single-Mode; Operation Temperature: -40℃~85℃; Applicable Optical Fiber: 2.0x3.0 Butterfly optical cable; In the package: 2 Pack Fiber Optic Fast Connector.Are there any advantages of the product?
The fiber fast connector adapter has the characteristics of high reusability, good inter-pluggability, low insertion loss, large return loss, high-temperature resistance, tensile strength, and stable and reliable transmission.How to use it?
Usage steps: 1. Thread in the optical cable and open the outer sheath of the optical cable; 2. Peel off the PVC layer with a stripper; 3. Use alcohol cotton to remove fiber coating; 4. Put in the guide rail line and cut 9 to reserve 10 mm; 5. Pass the optical fiber from the end of the connector until the optical fiber is docked; 6. Move the top of the switch casing upward and lock it to tighten the bare fiber.What should I notice?
When using a fiber quick cable connector, you need to pay attention to the following points: 1. During the entire connector installation process, all links must be kept clean; 2. Ensure the quality of the fiber-cutting end face; 3. Insert the fiber slowly to prevent the optical fiber is damaged, do not remove the dust cover after installation; 4. Ensure the optical fiber end face and the embedded optical fiber are closely matched.Hot Item

Payment

• 1.We accept payment .
• 2.Payment must be received within 7 business days of sale closing.

Shipping

• 1.We ship to your or Paypal address. Please make sure your and Paypal address is correct before you pay.
• 2.Items will be shipped within 1-3 business day when we received payment.
• 3.Delivery time depends on destination and other FC UPC Fiber Optic Quick Connector, FC SM Fiber Fast Connectors Adapter What is this?
  Fiber optic quick connectors are used to connect optical fibers to optical fibers or optical fiber pigtails, which are equivalent to making joints widely used in optical fiber transmission systems, CATV networks, telecommunications networks, LAN, etc.What will I get?
  The FC fiber quick connector adapter is in size: 57.5x8.5mm/2.26x0.33inch; Style: Fiber Fast Connector; Connector Polish: FC/UPC, Insertion Loss: AVG≤0.3dB, MAX0.5dB; Return Loss: ≥50dB; Fiber Type: Single-Mode; Operation Temperature: -40℃~85℃; Applicable Optical Fiber: 2.0x3.0 Butterfly optical cable; In the package: 2 Pack Fiber Optic Fast Connector.Are there any advantages of the product?
  The fiber fast connector adapter has the characteristics of high reusability, good inter-pluggability, low insertion loss, large return loss, high-temperature resistance, tensile strength, and stable and reliable transmission.How to use it?
  Usage steps: 1. Thread in the optical cable and open the outer sheath of the optical cable; 2. Peel off the PVC layer with a stripper; 3. Use alcohol cotton to remove fiber coating; 4. Put in the guide rail line and cut 9 to reserve 10 mm; 5. Pass the optical fiber from the end of the connector until the optical fiber is docked; 6. Move the top of the switch casing upward and lock it to tighten the bare fiber.What should I notice?
  When using a fiber quick cable connector, you need to pay attention to the following points: 1. During the entire connector installation process, all links must be kept clean; 2. Ensure the quality of the fiber-cutting end face; 3. Insert the fiber slowly to prevent the optical fiber is damaged, do not remove the dust cover after installation; 4. Ensure the optical fiber end face and the embedded optical fiber are closely matched.
