Specification:
Chip: ST L298N dual H-bridge driver chip
Logic voltage: 5V
Logic current: 0mA-36mA
Storage Temperature: -20 ¡æ to +135 ¡æ
Operating mode: H-bridge driver (dual)
Drive voltage: 5V-35V
Drive current: 2A (MAX single bridge)
Maximum power: 25W
Package Included:

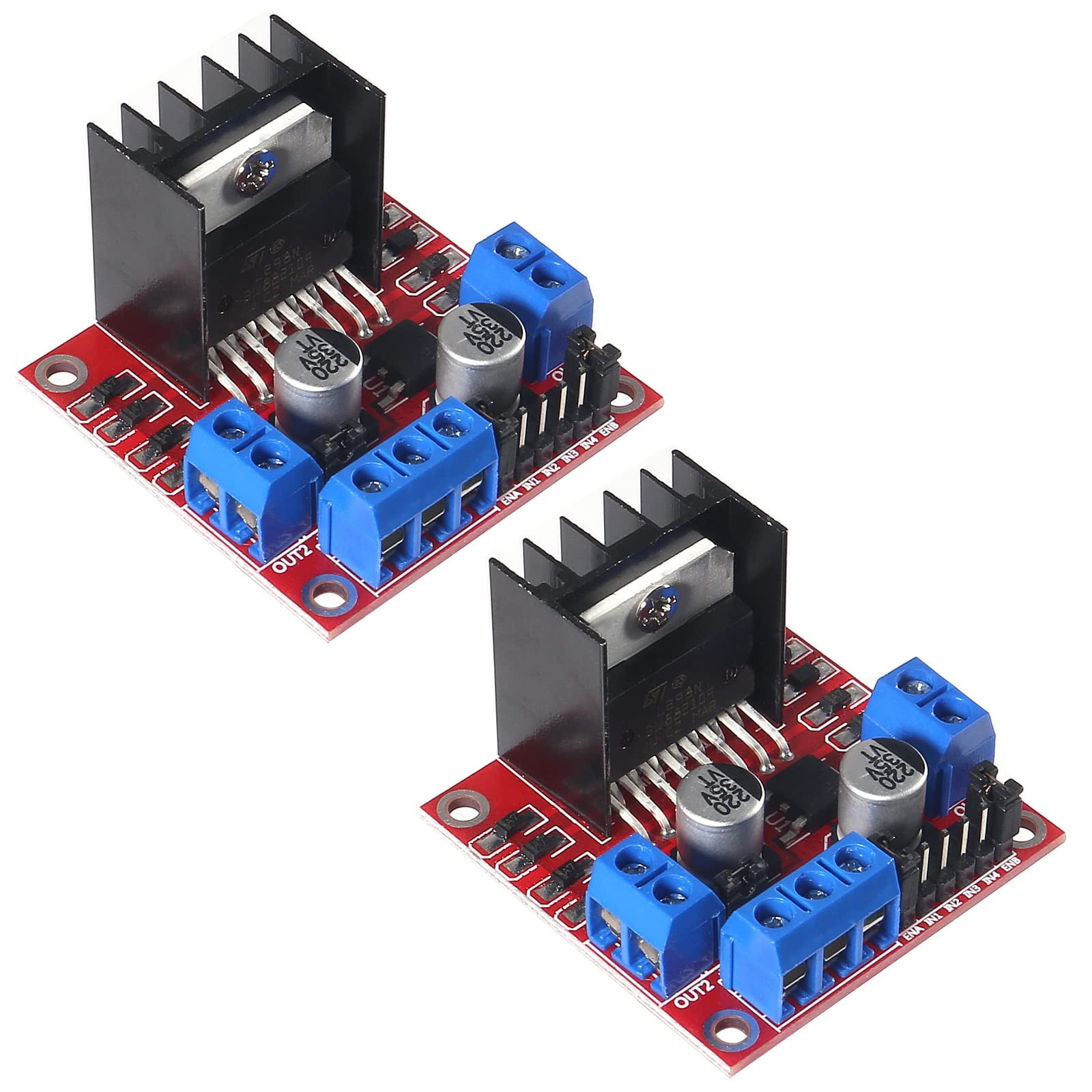

2 X L298N motor driver controller board module
Notes:
When your driver is 7V-12V, you can enable the on-board 5V logic supply.
When using the on-board 5V power supply, the + 5V power supply in the interface does not input voltage, but it can draw 5V voltage for external use.
Unconventional application of high-voltage drive: When the driving voltage is higher than 12V, less than or equal to 24V, for example, to drive a motor with rated voltage of 18V, the jumper cap with 5V output enabled on-board voltage must be pulled out and then outside the 5V output port Connect 5V voltage to L298N internal logic voltage supply. L298N motor voltage 5 V-35 V, drive current 2 A (maximum), external dimensions 43 x 43 x 27 mm/1.69 * 1.49 * 1.06in.
The main driver chip L298N has strong driving ability, strong anti-interference ability, low heat generation, over-current diode protection, stable and reliable.
Dual-channel H-bridge drive working mode, which can drive 2-phase stepper motors, 4-phase stepper motors or two DC motors, with high efficiency.
When the driving voltage is greater than 12V, please use an external 5V logic power supply.
No assembly required. This L298N board is ready to use.
