Product description Specifications:

• Material: Plastic & Metal
• Connectors 1: RJ11 6P6C Male Plug
• Connectors 2: 6Pin Screw Terminals
• Wire range: AWG26～18
• Pin: 6way/pin
• Size: 25mm*28mm*12mm
• Length: 30cm/1FT

RJ11-6P6C

RJ11 is generally used as a generic term for this 9.5mm series, using RJ11-6P2C, RJ11-6P4C and RJ11-6P6C respectively to distinguish the number of contacts.

Easy to Use

No soldering required. Just use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten.

Wildly Application

This is a 6P6C connector (six-position six-conductor), most typically installed on telephone handsets and their cordage. 6P indicates a six-position modular plug or jack.

Pin Definition

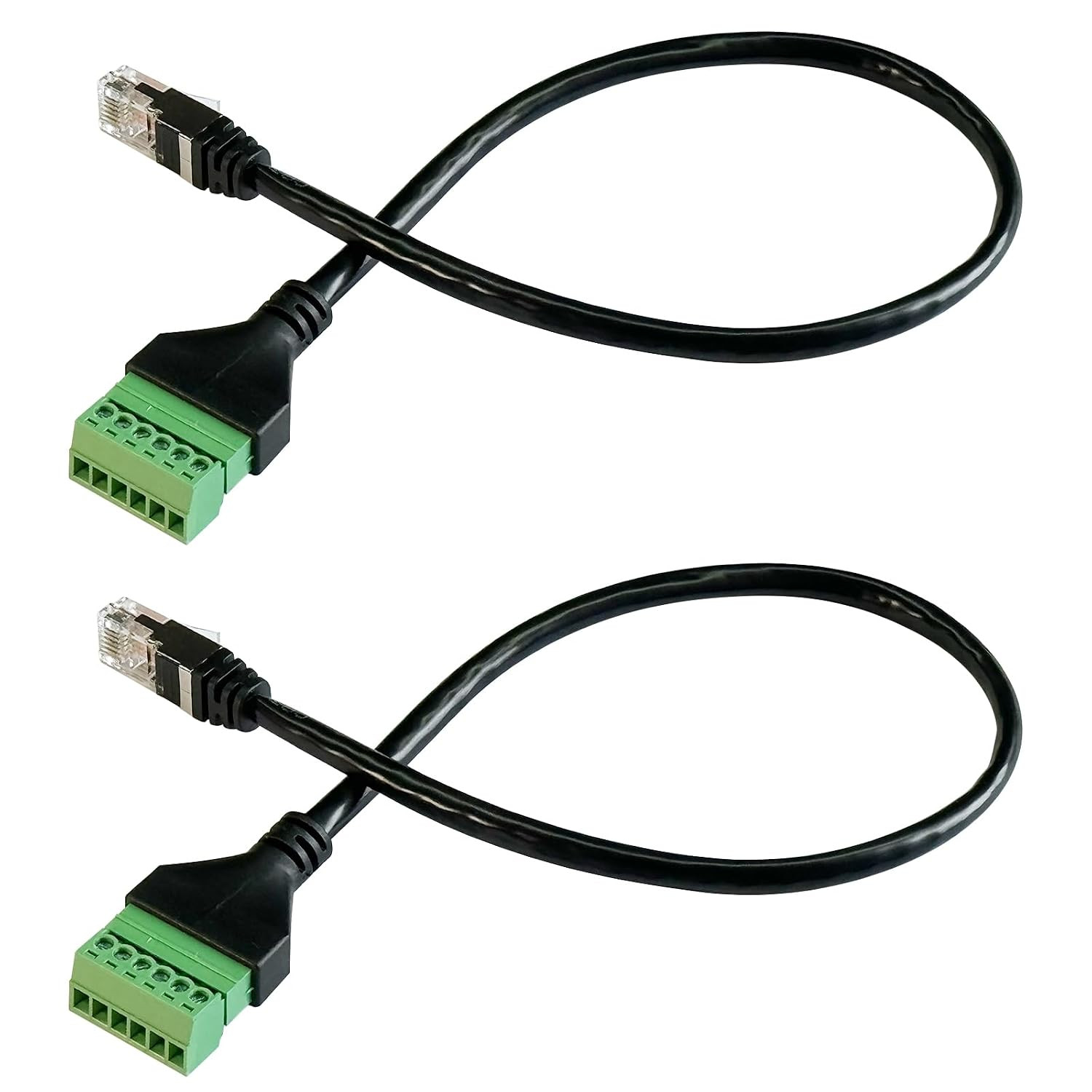

• Connectors 1:RJ11 6P6C Male plug , Connectors 2: 6 Pin/Way Female Bolt Screw Shield terminals Pluggable Type jack. Cable Length:30cm/1ft.
• Stability: Reliable connection, made of pure copper wire, strong signal stability and reliability. Establishes a bridged connection for one telephone line with key telephone system control ahead of line circuit.
• This is a 6P6C connector (six-position six-conductor), most typically installed on telephone handsets and their cordage. 6P indicates a six-position modular plug or jack. A six-position modular plug with conductors in only the middle two positions is designated 6P2C; 6P4C has four conductors in the middle positions, and 6P6C has all six equipped.
• RJ11 is generally used as a generic term for this 9.5mm series, using RJ11-6P2C, RJ11-6P4C and RJ11-6P6C respectively to distinguish the number of contacts.
• Easy to use: No soldering required. Just use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten.
