ESP32-S3 Expansion Board Description：
PCB thickness: 1.6mm
Model: ESP32-S3
Applicable: Suitable for N8R2 N16R8 development board
Depending on the batch, the printed words on the product be different, which does not affect use
Colour:Black+Green
Material:Plastic
Type: B: ESP32-S3 Expansion Board
Package Contents:
2x Expansion Board
2x Pre-Soldered ESP32-S3-DevKitC-1-N8R2 Development Board

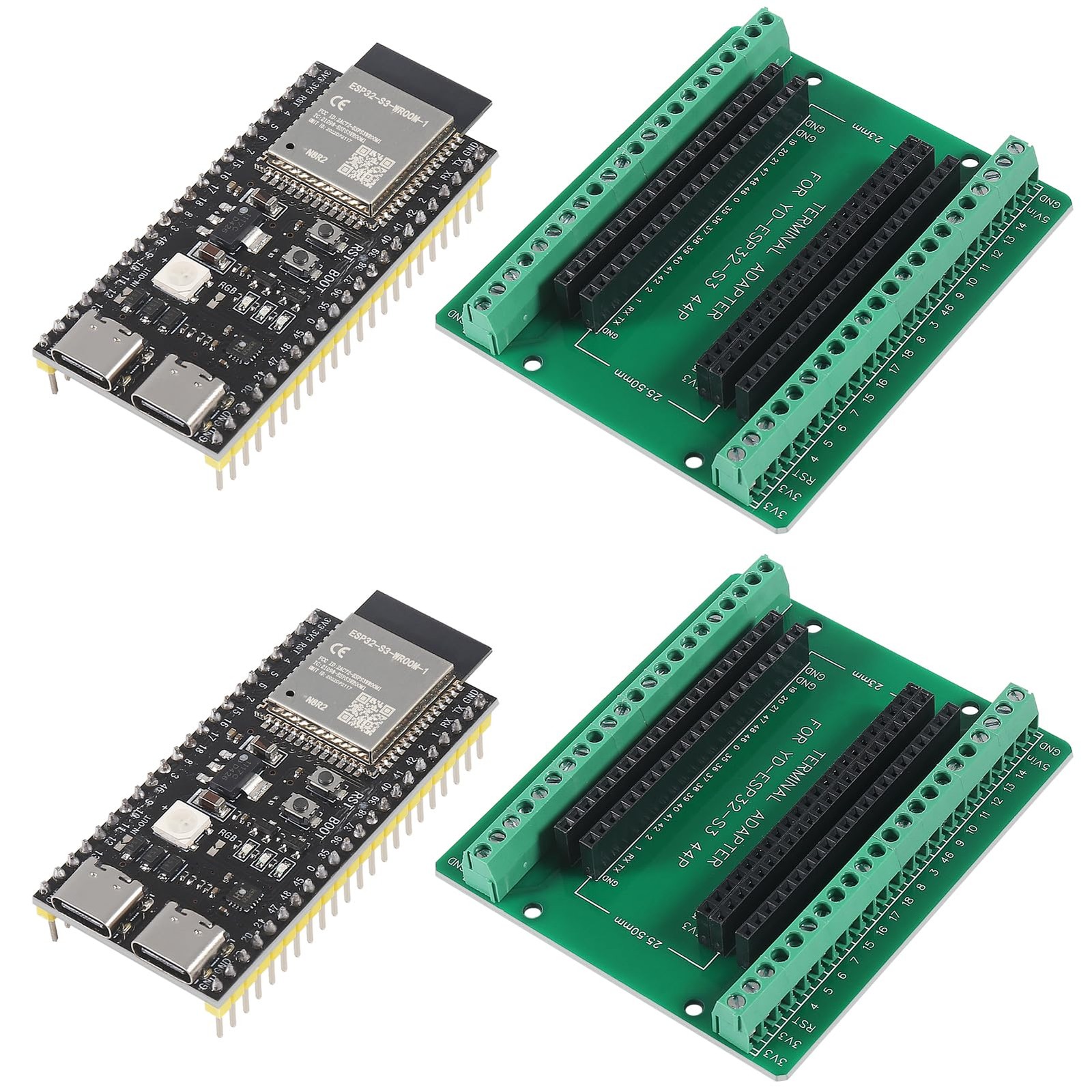

ESP32-S3 Expansion Board GPIO 1 Into 2 Breakout Board Double-Layers Expansion Board with N8R2 Development Board
This breakout board can expand the 1 GPI0 pin of the ESP32-S3 board to 2, perfect to reuse all pins and a great tool for your projects
Pre-Soldered ESP32-S3-DevKitC-1-N8R2:ESP32-S3 is an MCU chip integrating 2.4GHz WiFi and Bluetooth 5 (LE). It is equipped with LX7 dual-core processor, main frequency up to 240MHz, built-in 512 KB SRAM (TCM), 36 programmable GPIOs. pins and rich communication interfaces. Supports larger capacity high-speed Octal SPI Flash and off-chip RAM, and supports user configuration data cache and instruction cache
USB-to-UART Port and ESP32-S3 USB Port (either or both), default power supply (recommended);8MB Flash; 2MB PSRAM
Long Range Communications: ESP32-S3 integrates 2.4GHz WiFi (802.11 b/g/n), supporting 40MHz bandwidth; its low-power Bluetooth sub-system supports Bluetooth 5(LE) and Bluetooth Mesh, which can realize long-distance communication with broadcasting extension through Coded PHY. It also supports 2Mbps PHY to increase transmission speed and data throughput. ESP32-S3 has excellent WiFi and Bluetooth LE RF performance, and can work stably under high temperature
