Specially designed by technical team.
Only compatible with
38 pins Narrow and No Mounting Hole Version esp32 development board,
ref asin: B07QCP2451. Not applicable to other versions.
Expand 1 GPIO pin to 2, which greatly facilitates users to reuse pins for large-scale smart home projects.
Nice breadboard alternative. Specifications:
PCB material: high quality FR-4 material
PCB layers: 2 layers
PCB thickness: 1.6mm
Pads: tin plated
Size: 7.8 * 6.3 * 1cm Product list:

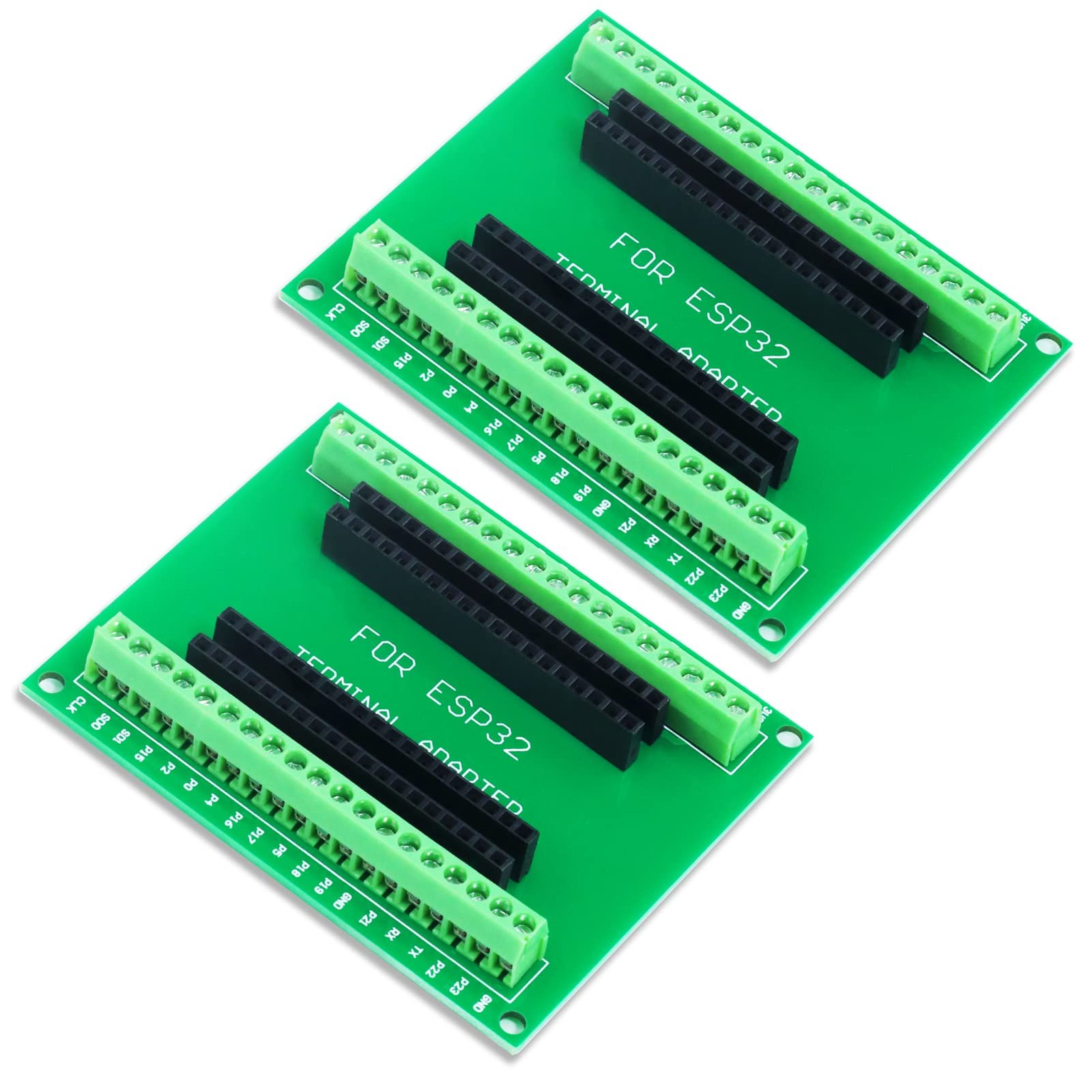

2 x ESP32 Breakout Board : Best choice in various Electronic Modules & Components, DIY Parts and Tools to
support your work and design challenges from Home, School to Industrial applications!
IMPORTANT: Only compatible with 38 pins Narrow and No Mounting Hole Version esp32 development board, ref asin: B07QCP2451. Not applicable to other versions.
GPIO 1 INTO 2: This breakout board can expand one GPIO pin of esp32 development board to two, which is convenient for users to reuse all pins in smart home projects. Nice breadboard alternative.
2 TYPE CONNECTIONS: Pin Header & Screw Terminal. Just select them according to your purpose.
DOUBLE-LAYER PCB: The expansion board is a double-layer board. One pin is wired on both sides. Therefore, the circuit is stable and highly reliable, and there will be no poor circuit contact and unstable signal transmission.
UPDATED VERSION: Compared with the previous version, the board of this version has been soldered completely. No need to solder parts by yourself, which is very convenient to use.
