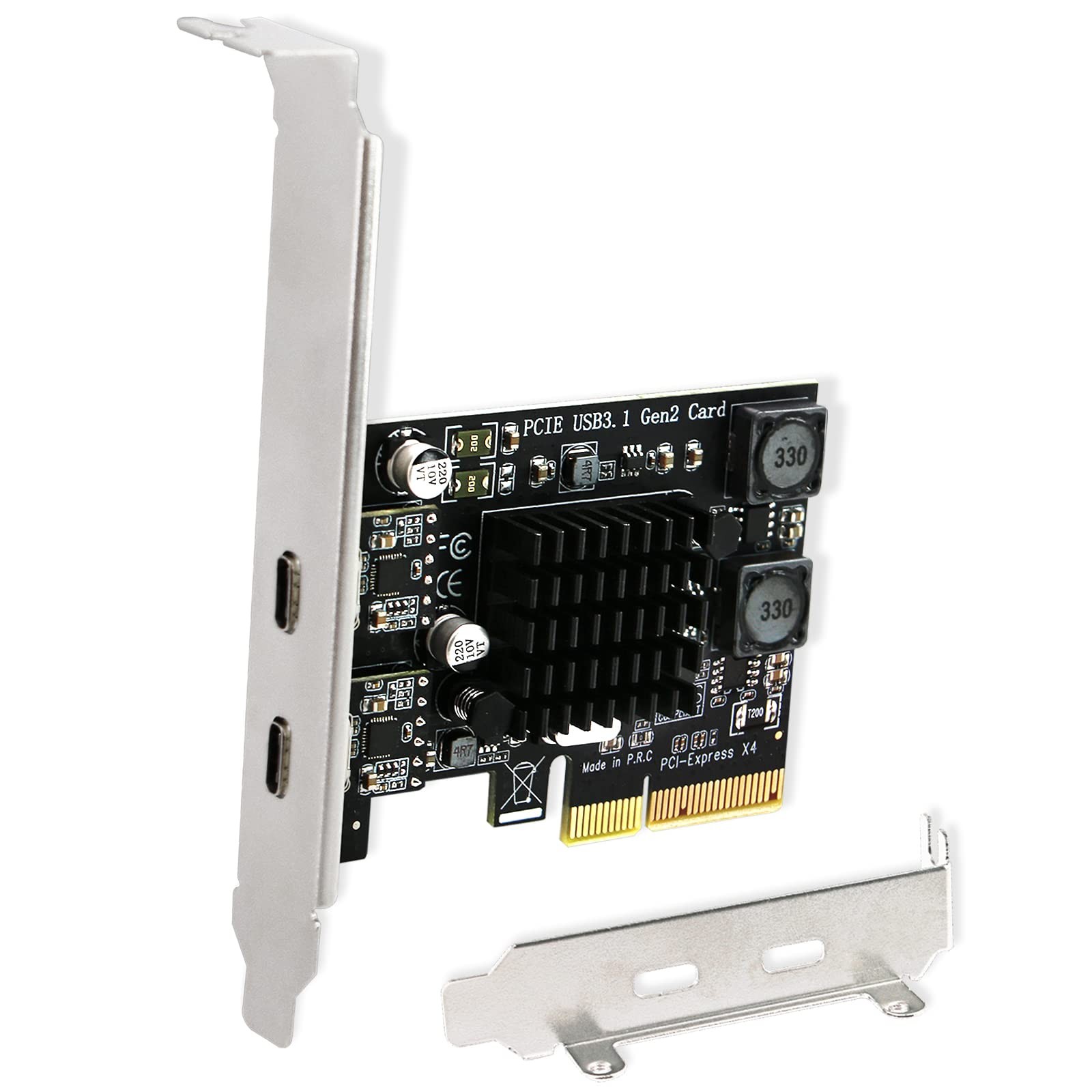

FS-C2-Pro is a PCI Express 3.0 X4 interface to 2X 10Gbps USB 3.1 GEN2 Type C ports expansion card. It will provide 2X USB 3.1 GEN2 Type C 10Gbps ports on Desktop PCs for USB-C devices large data transfer and live sorage. It was built in Self-Powered Technology, users no need to plug any additional power supply form PCs PSU, but each USB 3.1 GEN2 port get 5V/3A (5V/6A in total) max power supply. Allow all connected high-power consumption USB 3.1GEN2 devices get a superspeed 10Gbps (16Gbps in total) max speed. It is a cost-affective way add 2X 10Gbps USB-C ports on Desktop PCs, Working Stations, and MAC Pros for high power consumption USB 3.1 GEN2 Type C peripheral devices connection, which including NVME SSD enclosures, SATA SSD/HDD enclosures, VR-Systems, 10Gbps USB hubs and 4K USB-C video adapter. The 2X added on 10Gbps USB-C ports will not occupy mother board USB Main Lan speed, just an extra bandwidth by PCI Express X4 on Desktop PCs.
Compatible System:
1. Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022.
2. Need to install driver on Windows 7 (32/64bit) and Windows Server 2008, 2008R2(32/64bit).
3. Driver Free on MAC OS 10.9.x, 10.10.x, 10.12.x, 10.13.x, 10.14.x, 10.15.x and later system. NOT works on MAC OS 10.11. x.
4. Supports most main stream Linux kernels.
Package:
1X FS-C2-Pro 1X User Manual 1X Mount-screw 1X Low Profile Bracket
1. FS-C2-Pro allow users add 2X 10Gbps USB 3.1 GEN2 Type C port on Desktop PCs, Working Stations, and MAC Pros. The 2X USB 3.1 GEN2 Type C Ports can provide superspeed plus 10Gbps max (16Gbps in total) data tramsfer rate for high power consumption USB 3.1 GEN2 peripheral devices, such as NVME SSD enclosures, SATA SSD/HDD enclosures, VR-Systems, 10Gbps USB hubs and USB-C video adapters.
2. Built in Self-Powered Technology. No need to plug any power cables from PCs PSU, but each USB 3.1 GEN2 port will get 5V/3A (5V/6A in total, NOT for fast charging) max power supply. Ensure connected USB 3.1 GEN2 devices running superspeed plus 10Gbps max. Enjoy super easy installation with Plug & Play use on most Desktop PCs.
3. Based on ASMedia ASM3142 the 3rd generation USB 3.1 GEN2 host controller. Supports USB 3.1 GEN2 Mutiple INs function, will auto-coordinate each USB 3.1 GEN2 port banwidth. The added-on Heat-Sink will help PCIE USB 3.1 GEN2 card core components stay away from overheat, make sure USB 3.1GEN2 devices always stay at peak speed 10Gbps max.
4. Compatible System: 1. Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022. 2. Need to install driver on Windows 7 (32/64bit) and Windows Server 2008, 2008R2(32/64bit). 3. Driver Free on MAC OS 10.9.x, 10.10.x, 10.12.x, 10.13.x, 10.14.x, 10.15.x and later system. NOT works on MAC OS 10.11. x. 4. Supports most main stream Linux kernels.
5. ATTENTION: 1. PCIE X4 interface design, will compatible with PCIE X4, X8, X16 slot, NOT works on PCIE X1, X2 slot. 2. Please use this PCIE USB card on PCIE 3.0 slot and works with USB 3.1 GEN2 devices or can not get 10Gbps peak speed. 3. Users must make sure PCs have one PCIE X16 slot, before purchase. 4. This is not thunderbolt expansion card, have USB 3.1 GEN2 features only, the USB-C not support ALT+DP function.
