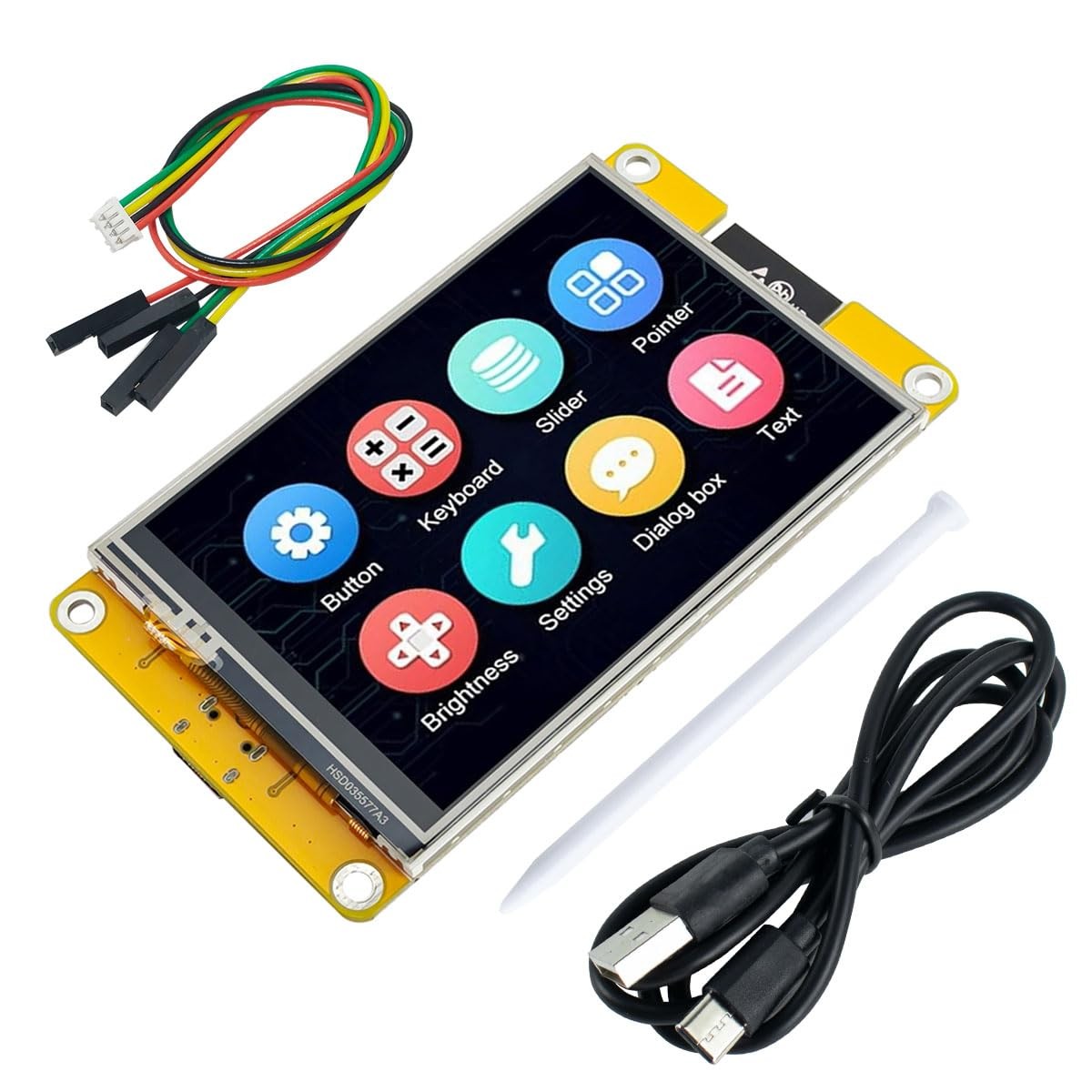

We offer Free Shipping on all order!!Wel come to my stores, The Smart of your choice and satisfaction guarantee.3.5'' 320x480 Touch Screen ESP32 Display with WiFi+BT, ST7796U Driver LCD TFT Screen Module for Arduino IoTGalleryProduct Description
Features: ●3. 5-inch color screen, support 16 BIT RGB 65K color display, display rich colors ●320X480 resolution ●The sample program has been programmed in the factory and can be plugged in ●With TF card slot for easy expansion storage ●Provide arduino library functions and sample programs to facilitate rapid secondary development ●Support one-click download program ●Military-grade process standards, long-term stable work ●Supports lithium battery power supply, supports both charging and discharging, and has over charging and over discharging protection Product Parameters: Display color: RGB 65K color Size: 3.5 inch Type: TFT Driver chip: ST7796 Resolution: 320*480(Pixel) Effective display area: 55.2*85(mm) Module size: 55.34*101.5(mm) View: >60° Operating temperature: -20℃~70℃ storage temperature: -30℃~80℃ Operating Voltage: 5V Power consumption: About 115mA Product weight: About 50g Package includes: 1 x 3.5'' ESP32 Dispaly Module 1 x USB Cable 1 x Touch Pen 1 x 4Pin Connector Cable 1 x Packaging box for display
Features
- Controller: Adopts ESP32-32E module, dual-core MCU, integrated Wi-Fi and Bluetooth, main frequency up to 240MHz, memory of 520KB SRAM and 448KB ROM, 4MB flash memory.
- Touch Screen: 3.5-inch LCD color screen, resolution of 320x480, supports 16-bit RGB 65K color display, rich colors, with resistive touch function.
- Rich Expansion Interface: Equipped with TF card slot, serial port interface, temperature and humidity sensor interface (DHT11 interface) and reserved IO interface.
- Multi-function: Contains LCD display, backlight control circuit, touch screen control circuit, speaker drive circuit, photosensitive circuit and RGB-LED control circuit.
- Convenient development: Provides compatible Arduino library functions and sample programs, supports one-click download of programs, and supports Arduino IDE, ESP IDE, Micropython and Mixly development.
