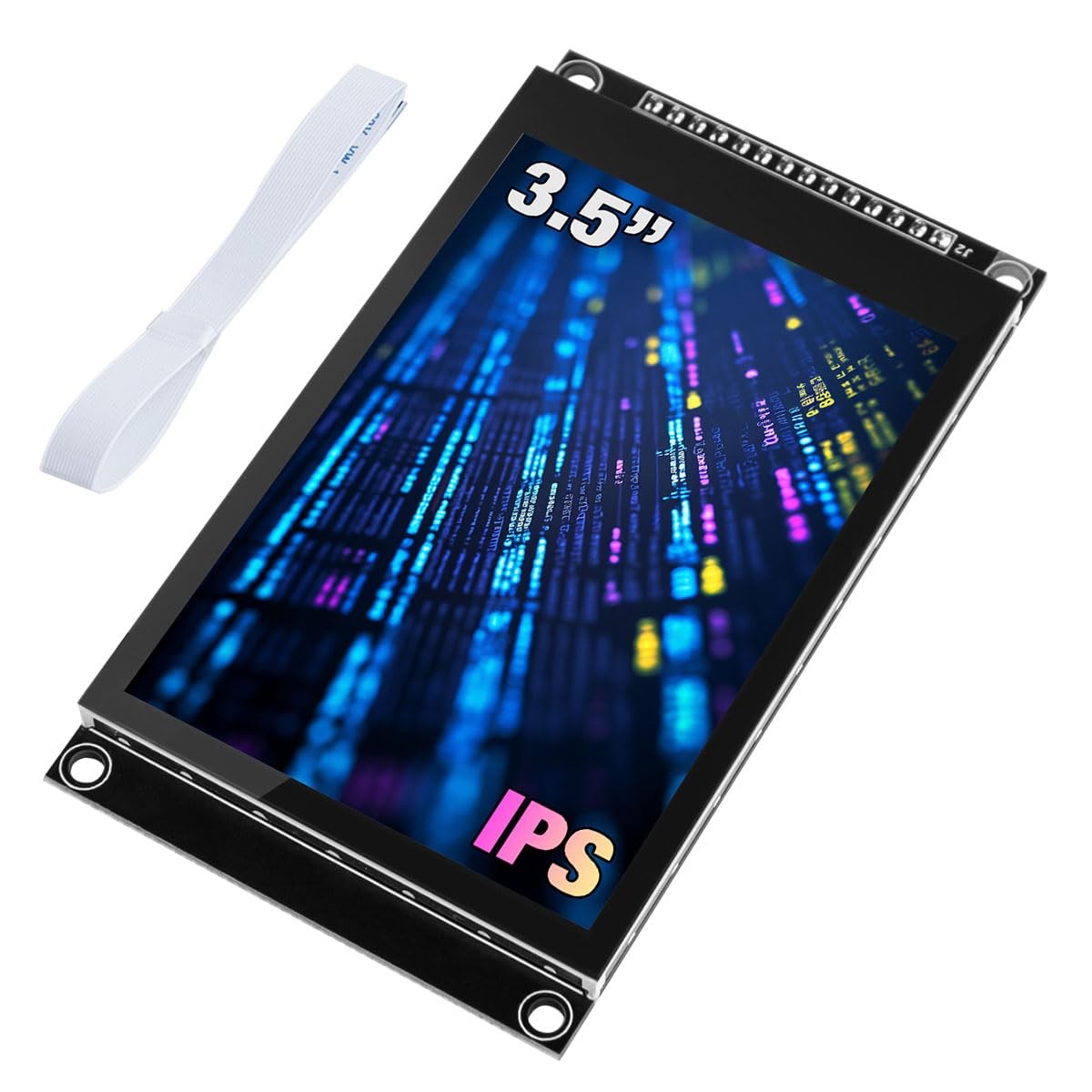

Screen Size：3.5 inch
Screen ：IPS
Resolution：320xRGBx480 (pixels)
Active Area (AA area)：48.96(W)x73.44(H)(mm)
Number of Colors(Max)：16.7M
Driver IC：ST7796U
Display Interface：4-Line SPI
Pixel Size：0.153(H)x0.153(mm)
View Angle：ALL 0’CLOCK
Brightness(TYP)：300(cd/m2)
Backlight ：White *6
Operation Temperature：-10~50(℃)
Storage Temperature：-20~60(℃)

Touch Screen Parameters
Touch Active Area：3.5 inch
Touch Screen ：Capacitive Touch Screen
Touch Screen Resolution：320x480(pixels)
Driver IC：FT6336U
Touch Screen Visual Area：49.56(w)x74.04(H)(mm)
Communication Interface：IIC
Operation Temperature：-20~70(℃)
Storage Temperature：-30~80(℃)

Electrical Parameters
Working Voltage：5.0 V
Backlight Current：95 mA
Power：0.5 W

Interface：4P 2.54mm spacing Header and 0.5mm spacing FPC seat
Size Pin Header)
Weight(including package)：82g
Package include：
1 x 3.5” touch screen
1 x FPC cables
1 x Plastic protective

3.5-inch color screen, upgraded to use IPS full-viewing panel, 320x480 resolution, 300cd/m2 brightness and up to 16.7M RGB colors to ensure excellent display effects.
Newly upgraded to a capacitive touch panel, the touch is more sensitive and precise compared to the resistive screen.
On-board level conversion circuit, with 5V and 3.3V MCUs. Adopt 4-wire SPI serial bus to save I/O pins.
The input supports 2.54 pin header interface and FPC extension interface, and comes with a micro TF card slot for easy storage expansion.
Provide rich sample learning programs (ESP32/STM32/Arduino R3&Mega2560/C51/CH32), provide underlying driver technical , and update the information online.
