LCD Controller Board:

HD-mini LCD Board Work for 50Pin TTL LCD Screen

Input Power Adapter:DP 5V-9V dc More than20W.

Come In Standby Model When Not Input Signal

Video Input: HD-mini

OSD: Brightness Contrast Auto Language And So On

Language:English French German Spanish Italian And So On

Board Size:52mm x 46mm x 6mm

3.5" VS035T-001A 640X480 LCD Screen:

Display Mode TN, Normally White, Transmissive

Resolution 640(RGB)×480

Outline Size 76.9 × 63.9×3.46 (H×V×D)

Display Area 70.08 × 52.56 (H×V)

Brightness 300 cd/m² (Typ.)

Contrast Ratio 400:1 (Typ.) (TM)

Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface Digital RGB (8/24-bit) + SPI, CCIR601/656 , 54 pins , FPC

Backlight WLED

Input Voltage 3.3V (Typ.)

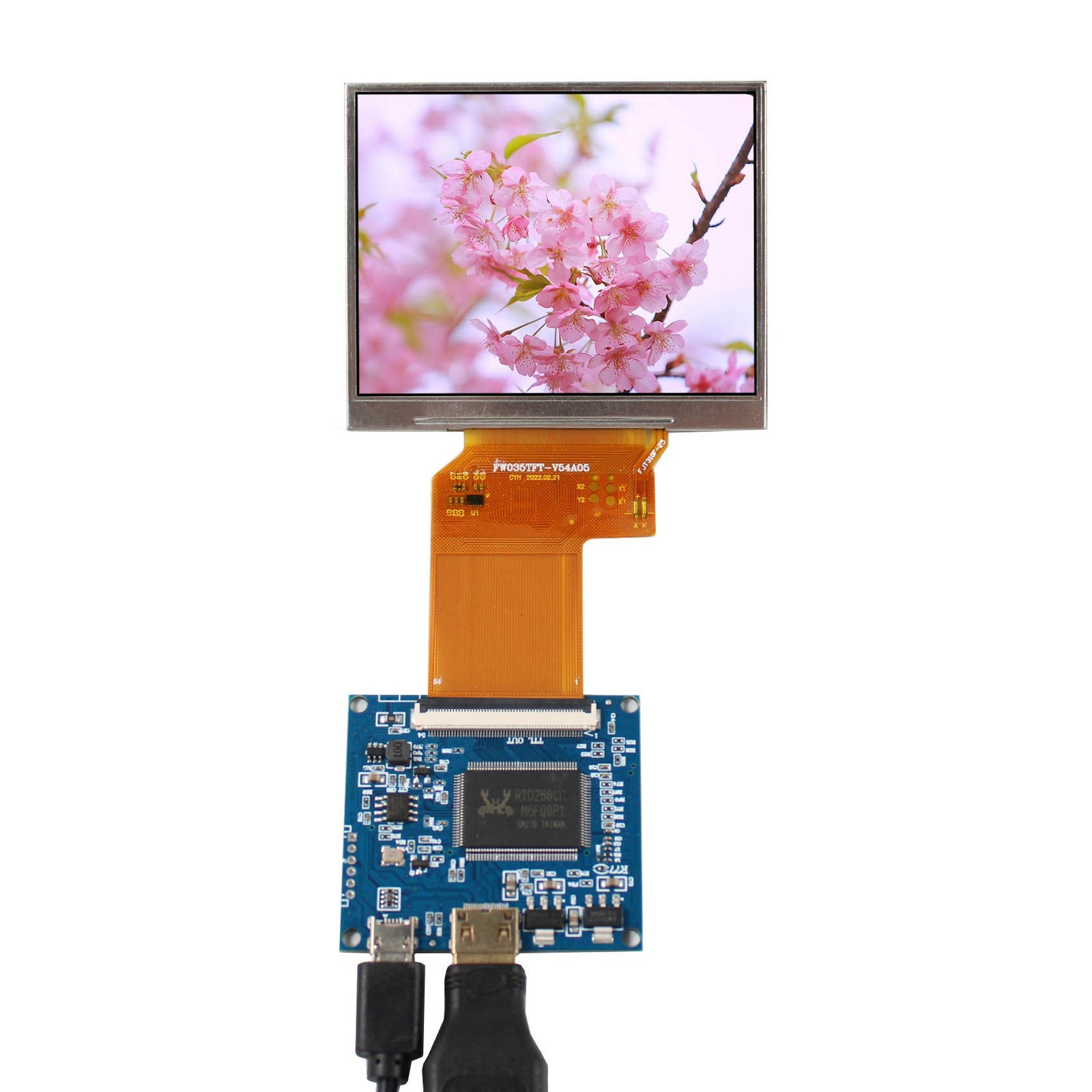

Packing list :

1×miniHDLCD Controller Board VS-TY2660H-V850

1× 3.5inch VS035T-001A 640x480 LCD Screen
