3-Lead Acc Hardwire Kit Type-C USB Port for M550 M01Pro PG17 Gs63Hpro Dashcam, 1 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

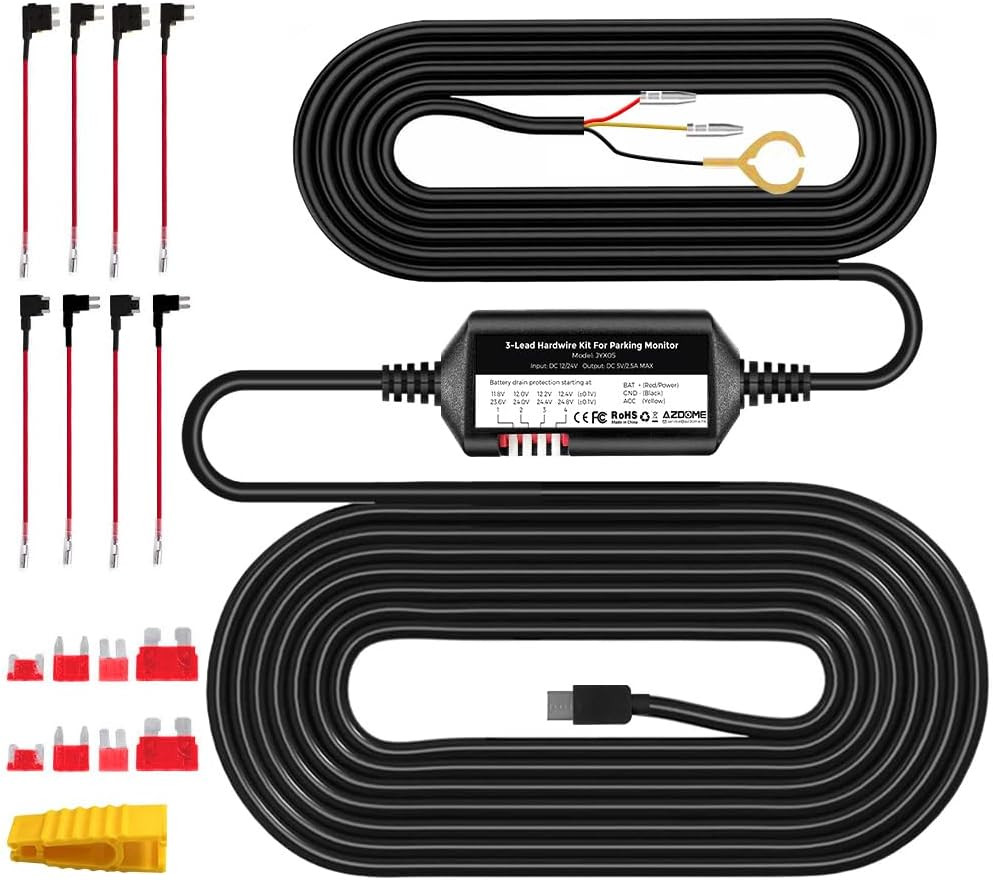

3-Lead Acc Hardwire Kit Type-C USB Port for M550 M01Pro PG17 Gs63Hpro Dashcam, 1

Price: US $42.72

3-Lead Acc Hardwire Kit Type-C USB Port for M550 M01Pro PG17 Gs63Hpro Dashcam, 12Ft with Fuse Kit, Dash Camera Convert 12V-24V to Output 5V/2.5A Max, 24H Parking Mode, Low Voltage ProtectionDescription Connector Type USB Type C Compatible Devices Car, Truck, Bus Special Features Compact Design Input Voltage 12 volts_of_direct_current Amperage 2.5 A Total Usb Ports 3 Wattage 12.5 watts Output Current 2.5 A Output Voltage 5 volts_of_direct_current Power Source Corded Electric Current Rating 2.5 A Power Plug No Plug Current DC Wired Charging Connector Type USB Type C Connectivity Technology USB Mounting Type Adhesive Mount Built-In Media Hardwire Kit Model Number M550 Pro-3CH Model Name RM Mfr Part Number JYX05 Item Type Name hardwire kit Warranty Description 1 year manufacturer Number of Items 5 Item Weight 100 g Color Black Included Components Hardwire Kit Special Feature Compact Design Total USB Ports 3

Product description

The AZDOME 3-Lead Hardwire Kit is a power management device that provides power to your dashcam from your car's battery via fuse box to keep your dashcam continuously running even after your engine is turned off to utilize the 24-hour Parking Monitor feature. Automatically detects voltage input whether your vehicle is running DC 12V or 24V. It is compatible with most dash cameras available in the market with a Type-C USB power connector.

The Hardwire Kit will monitor your voltage status and cut-off the power to the dashcam if the voltage drops below the conﬁgured value more than 8 seconds. And reserves enough power so you can start your car for the next time. You have four different conﬁguration choices that you can select when you want the power to be disconnected to the dash cam when the battery’s voltage reaches a certain level.

Make sure to test and identify the minimum necessary battery voltage you will need to start your car for the next time before you set to the lowest setting. We recommend that you start with the highest setting, and then test and press only one voltage option in sequence to ﬁnd the suitable battery voltage that will give you enough battery power left over to start your car for the next time.

Four Options of Low Voltage Protection:

For 12V Battery: 11.8V 12.0V 12.2V 12.4V
For 24V Battery: 23.6V 24.0V 24.4V 24.8V

Note: If you press at the same time to select 2 or more options, or do not select the voltage option, this default voltage cut-off is 11.8VDC for a 12VDC battery and 23.6VDC for a 24VDC battery. 12.2V or 24.4V recommended for most users in general driving conditions.

Reverse connect protection
Short circuit protection
Overload protection
Overtemperature protection (protection circuit over 130℃, return to normal when it drops to 90℃).
Total Cable Length: 3.5 Meters (input 0.8 meter, output 2.7 meters)
Output Connector: Type-C USB plug, DC 5V, 2.5A
Working temperature: -20℃ to 90℃

Hard-wire kits, there are 3 wires that need to be connected:

A RED wire (BAT+), needs to connect with constant fuse, which can provide power to dash cam even when the vehicle is off.
A YELLOW wire (ACC), needs to connect with Fuse Box ACC, which can make the dash cam auto power on&off when the vehicle is on&off.
A BLACK wire (GND), needs to connect with metal bolt or screw, which can prevent electric shock.

NOTE:

1. The Parking Mode only works on dash cam that have the function of detecting ACC, this will make your camera record based on your camera’s parking mode setting.

2. Always refer to the vehicle owner’s manual to avoid fuse slots that could pertain to important safety features within your vehicle. For example, avoid fuses that controls airbags, stability control programs, etc.

Fuses that control certain elements such as the radio, garage door opener, sunroof, etc. are usually safe to use.

3. Fuse sizes and the type of Fuse Taps vary depending on your vehicle, please check your Fuse Box to see what type of fuse tap your vehicle requires. There are 4 variations of the add-a-fuse that we carry: ACZ(micro2), ACS(mini), ACN(LP-mini) and ACU(ATO) as photos (2 Needed Per Vehicle).

4. It is NOT compatible with some Ford trucks and vehicles with the included fuse taps . If you have Ford F150 2021, Ford F150 Lariat 2011, Ford F350, Ford Edge 2011, Ford Explorer 2013, Ford Expedition 2013, Ford Ranger 2021 trucks/cars, this will not work for you.

AZDOME M550 dash cam is built in Super Capacitor. No power pack or batteries. It must be powered by connecting to your car in one of three ways direct connect to a fuse, cigarette light adapter or a OBD cable. So if you want to use parking mode you need to purchase hard-wiring kit with 3 wires, the output current need reach 5V/2.5A.

Steps:

Please connect the red wire to always powered, the yellow wire to ACC, and the black wire to ground.
If the AZDOME hardwire kit is connected correct, please find the "Park" menu in the dash cam menu, press OK to select connected, tick parking monitoring, and press the menu button to exit and save the settings.
Once the car turns on ACC, AZDOME M550 dash cam will automatically turn on, and once the car turns off, the camera will enterTime-Lapse Parking Mode / Motion Detection Parking Mod / Collision Detection Parking Mode automatically when hardwire the camera correct.

Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.1 out of 5 stars 4,936 4.3 out of 5 stars 615 4.5 out of 5 stars 1,796 4.0 out of 5 stars 222 4.1 out of 5 stars 197 4.3 out of 5 stars 466 Price $107.94$107.94 $129.99$129.99 $189.99$189.99 — no data $84.99$84.99 $107.94$107.94 Camera Type AZDOME M550-3CH 3.19" IPS Screen 3 Channel Dash Cam (Front + Rear + Cabin) AZDOME M550 Max 3.19" IPS Screen 3 Channel Dash Cam (Front + Rear + Cabin) AZDOME M660 3" IPS Screen 4 Channel Dash Cam (Front + Rear + Left + Right) AZDOME M01 Max 2.4" IPS Screen Dual Channel Dash Cam (Front + Rear) AZDOME GS63H Pro 2.4" IPS Screen Dual Channel Dash Cam (Front + Rear) AZDOME PG17 11.8" IPS Touch Screen Mirror Dash Cam(Front + Rear) Front Camera Resolution/Frame Rate 4K (3840x2160P @30FPS) 4K (3840x2160P @30FPS) 4K (3840x2160P @30FPS) 4K (3840x2160P @30FPS) 4K (3840x2160P @30FPS) 4K (3840x2160P @30FPS) Front + Rear Camera Resolution/Frame Rate 4K (3840x2160P @30FPS) + 2.5K (2560×1440P @30FPS) 4K (3840x2160P @30FPS) + 2.5K (2560×1440P @30FPS) 4K (3840x2160P @30FPS) + Full HD (1920×1080P @30FPS) 4K (3840x2160P @30FPS) + Full HD (1920×1080P @30FPS) 4K (3840x2160P @30FPS) + Full HD (1920×1080P @30FPS) 4K (3840x2160P @30FPS) + Full HD (1920×1080P @30FPS) Front + Rear + Cabin Camera Resolution/Frame Rate 2.5K (2560x1440P @30FPS) + 2.5K (2560x1440P @30FPS) + Full HD (1920×1080P @30FPS) 4K (3840x2160P @30FPS) + 2.5K (2560x1440P @30FPS) + Full HD (1920×1080P @30FPS) 4K (3840x2160P @30FPS) + Full HD (1920×1080P @30FPS) + Full HD (1920×1080P @30FPS) N/A N/A N/A Front + Rear + Left + Right Camera Resolution/Frame Rate N/A N/A 2.5K (2560×1440P @30FPS) + Full HD (1920×1080P @30FPS) + Full HD (1920×1080P @30FPS) + Full HD (1920×1080P @30FPS) N/A N/A N/A Wi-Fi(APP Control) 2.4GHz WiFi 2.4GHz WiFi 5.8GHz / 2.4GHz WiFi 2.4GHz WiFi WiFi 6 WiFi 6 GPS(Speed and Coordinates Display) ✓ ✓ ✓ N/A ✓ ✓ SD card included 64GB TF Card Included 64GB TF Card Included Built-in 128GB eMMC 64GB TF Card Included 64GB TF Card Included 64GB TF Card Included Max. External Storage Support 256GB, Class 10, U3 Speed 256GB, Class 10, U3 Speed N/A 256GB, Class 10, U3 Speed 256GB, Class 10, U3 Speed 256GB, Class 10, U3 Speed Battery Built in Super Capacitor (Only has 1 mAh Lithium Metal Battery used to memory time) Built in Super Capacitor (Only has 1 mAh Lithium Metal Battery used to memory time) Built in Super Capacitor (Only has 1 mAh Lithium Metal Battery used to memory time) Built in Super Capacitor (Only has 1 mAh Lithium Metal Battery used to memory time) Built in Super Capacitor (Only has 1 mAh Lithium Metal Battery used to memory time) Built in Super Capacitor (Only has 1 mAh Lithium Metal Battery used to memory time)

AZDOME 3-Lead ACC Type-C USB Port Hardwire Kit - This allows dash cam to be installed in your vehicle without the need to use the 12V/24V outlet (car cigarette socket). Converts 12V-24V to Output 5V/2.5A Max.
Automatically Enter Parking Mode - With the hardwire kit being installed, the dash cam will power on and start recording automatically when the vehicle is opened or starts. If you turn on the function of parking monitor on the dash cam, it will automatically enter the time-lapse recording mode or the continuous recording mode.
Low Voltage Protection - The inbuilt minimum voltage limiter will protect the vehicle's battery from going flat. If the voltage of your car battery drops to this default voltage 11.8V or 23.6V, it will cut off the power, which leaves you with enough power to start your car for the next time.
Complete Accessories - Contains all the components required to easily piggyback on the fuse box of any vehicle. Simply plug the required fuse tap cable into the vehicle’s fuse box to provide the camera with its own power supply.
Fuse sizes and the type of fuse taps vary depending on your vehicle, please check your car fuse box to see what type of fuse tap your vehicle requires. There are 4 variations of the add-a-fuse that we carry: ACZ(micro2), ACS(mini), ACN(LP-mini) and ACU(ATO) as photos (2 Needed Per Vehicle).
