High-Performance Thermal Pads for Optimal Heat Management

Enhance the efficiency of your electronic devices with our premium thermal pads, designed for superior heat transfer and stability. Discover the key features that make these thermal pads an essential addition to your electronics toolkit:

Premium Material

Our thermally conductive silicone compound boasts an impressive thermal conductivity of 2.0 W/(m.k), ensuring effective heat transfer between electronic components and heat sinks, allowing them to cool down in seconds.

Convenient Assortment

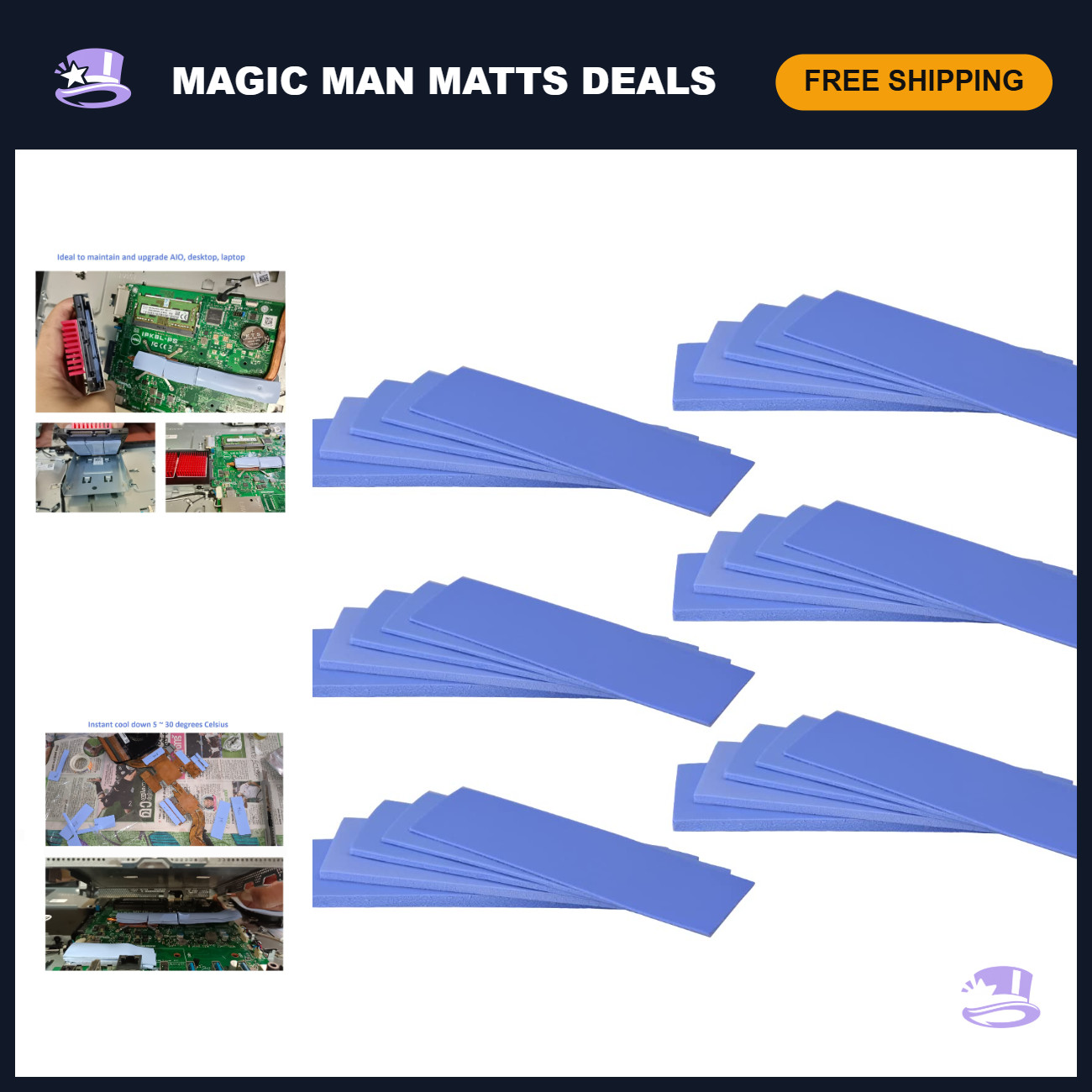

• Package includes 30 pieces of thermal pads measuring 67x20 mm.
• Variety of thicknesses: 0.5 mm, 1.0 mm, 1.5 mm, 2.0 mm, and 3.0 mm (6 pieces of each).
• Pads can be easily cut, reused, and overlapped for customized applications.

Safety & Stability

Engineered for reliability, our thermal pads are:

• RoHS & PAHs compliant.
• Capable of operating in temperatures ranging from -40 to 200 degrees Celsius.
• Hardness rating of 40 Shore and density of 2.4 g/cm³.
• Breakdown voltage of 5 KV/mm.
• Anti-static, flame retardant, odorless, non-corrosive, and non-irritating.
• Designed to stick without damaging your electronics.

Easy to Use

Follow these simple steps for a hassle-free application:

1. Clean the heating surface thoroughly.
2. Measure and cut the thermal pad to the desired size.
3. Remove the protective film from the bottom of the pad.
4. Stick it onto the surface and press lightly.
