CRD36

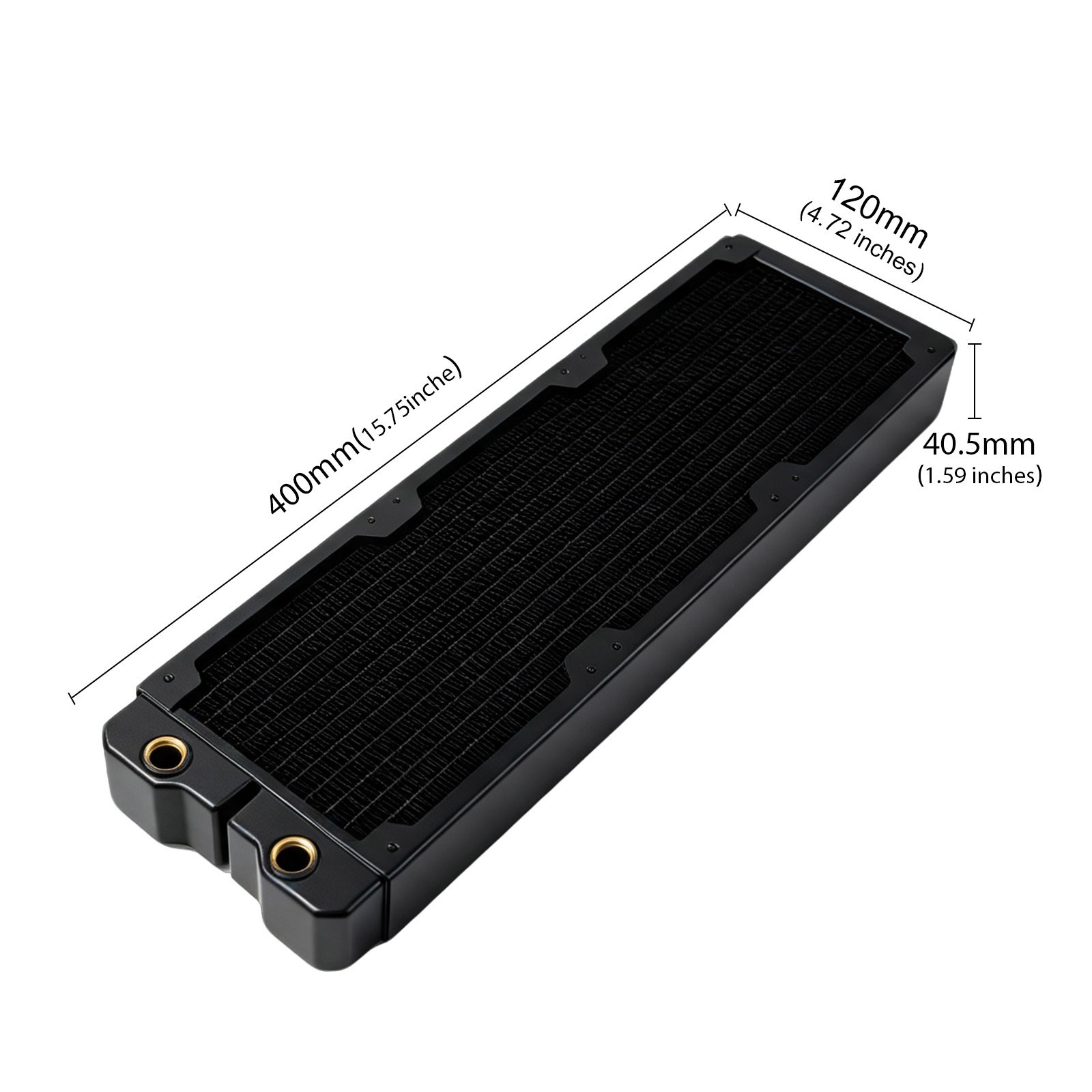

360mm Copper Water Cooling Radiator — 40.5mm Thick, 3x120mm Fan
120.95 dm² — Triple-Fan Copper Cooling for High-Performance in120.95 dm²
Cooling Area1,058g
2.33 lbs of Copper3x120mm
Push-Pull 6-Fan Max24 Screws
Full Kit IncludedKey Features📐120.95 dm² — Triple-Fan 360mm Performance
400mm of copper fin array with 40.5mm thickness delivers 120.95 dm² of cooling surface. Handles CPU+GPU loops, overclocked systems, and workstation builds with thermal headroom to spare.
🔩Copper + Brass Construction — Factory Leak Tested
Dense blackened copper fins + brass water chambers. High-temperature integrated welding. Every unit pressure-tested to 0.2 MPa before shipping — proven watertight.
🌬3x120mm Fans — Push-Pull 6-Fan Ready
Triple 120mm fan positions with 40.5mm fin stack — benefits significantly from push-pull. Run 6 fans at moderate RPM for maximum cooling with minimal noise.
🛠24-Piece Screw Kit — Push-Pull Ready
12x M3x30 long fan screws + 12x M3x6 short radiator mounting screws — enough for 6-fan push-pull + case mounting. No extra hardware needed.
Technical (LxWxH)400 x 120 x 40.5 mm (15.75 x 4.72 x 1.59 in)Weight~1,058 g (2.33 lbs)MaterialCopper fins + brass chambers + steel frameConnectorG1/4 thread x 2 portsWaterways12 channelsHeat Dissipation Area~120.95 dm²Fan Support3 x 120mm fans (push-pull compatible)Color / FinishBlack / baked paintScrew Kit — 24 Pieces TotalScrew TypeQtyUseM3 x 30mm (long, silver)12 pcsFan mounting (push-pull: 6 fans x 2 screws)M3 x 6mm (short, black)12 pcsRadiator mounting to casePlease Note:Fittings, fans, tubing, and coolant are NOT included.⚠ Important Installation Warnings
- Screw Length:Must NOT exceed5mmpast fan surface. Punctured tubes NOT covered by warranty.
- Case Compatibility:Requires case with native 360mm radiator support (3x120mm layout).
- Flush Before Use:Rinse with distilled water before first use.
Shipping and ReturnsDispatch TimeWithin 48 hours after paymentReturns30-day return. Buyer pays return shipping.
