2.4GHz 802.11b/g/n Signal Booster——HS2405X2

2.4G 5W​DescriptionThe 2.4 GHz WLAN signal booster is designed for IEEE 802.11b/g/n Wireless LAN applications. It adopts the direct sequence spread spectrum (DSSS) andorthogonal frequency division multiplexing (OFDM) technology of WAN communication. The product is compatible with time division duplexing (TDD) method of WLAN and using rapid microwave detection technology to provide high linearity amplification. The signal booster can work with most WLAN/Wi-Fi devices and increase the WLAN signal strength, therefore a larger WLAN coverage and more stable transmission rate.Key Features20X the power, Improving the link quality and coverage of certified WLAN devicesUltra-low noise, improve the receiving sensitivity, and extended receiving distanceWide 8V to 16V operating input rangeWorking with certified IEEE 802.11b/g/n Wireless LAN devicesSimply plug and play, no software is requiredAll metal covering, improve heat dissipationSpecificationsFrequency Range: 2.4~2.5GHzOperating Voltage: 12VReceiving Gain: 25dB±1Transmission Gain: 13dB±1Input Trigger Power: Min: 3dBm Max: 20dBmMaximum Output Power (P1dB): 37dBm (5W)EVM: 3%@29dBm 802.11g 54Mbps OFDM 64QAM BW 20MHzDC Supply Current: 575mA@Pout 29dBm 12VNoise Figure: ＜2.5dBTX/RX Switch Time Delay：＜1usLED Indicator: Transmitter: Green; Receiver: Red; Transducers: OrangeOperating Ambient Temperature: -20℃～+70℃Operating Humidity: ＜95%RHDimension: 103.5mm×96.5mm×30.5mmNet Weight: 0.3KgInstallation InstructionsStep 1: Disconnect power supply to AP/Router;Step 2: Detach the antenna from your certified wireless AP/RouterStep 3: Connect Rg316 cable to the booster and AP/RouterStep 4: Connect the antenna to the other end of the boosterStep 5: Connect the power supply to the booster first and subsequently the AP/Router

Note:The item need connect with router or access point which is NOT included
Packing List (bulk pack):

• 1 x Booster
• 1 x Power adapter
• 1 x SMA cable
• 1 x 6dBi Antenna


  Company Information

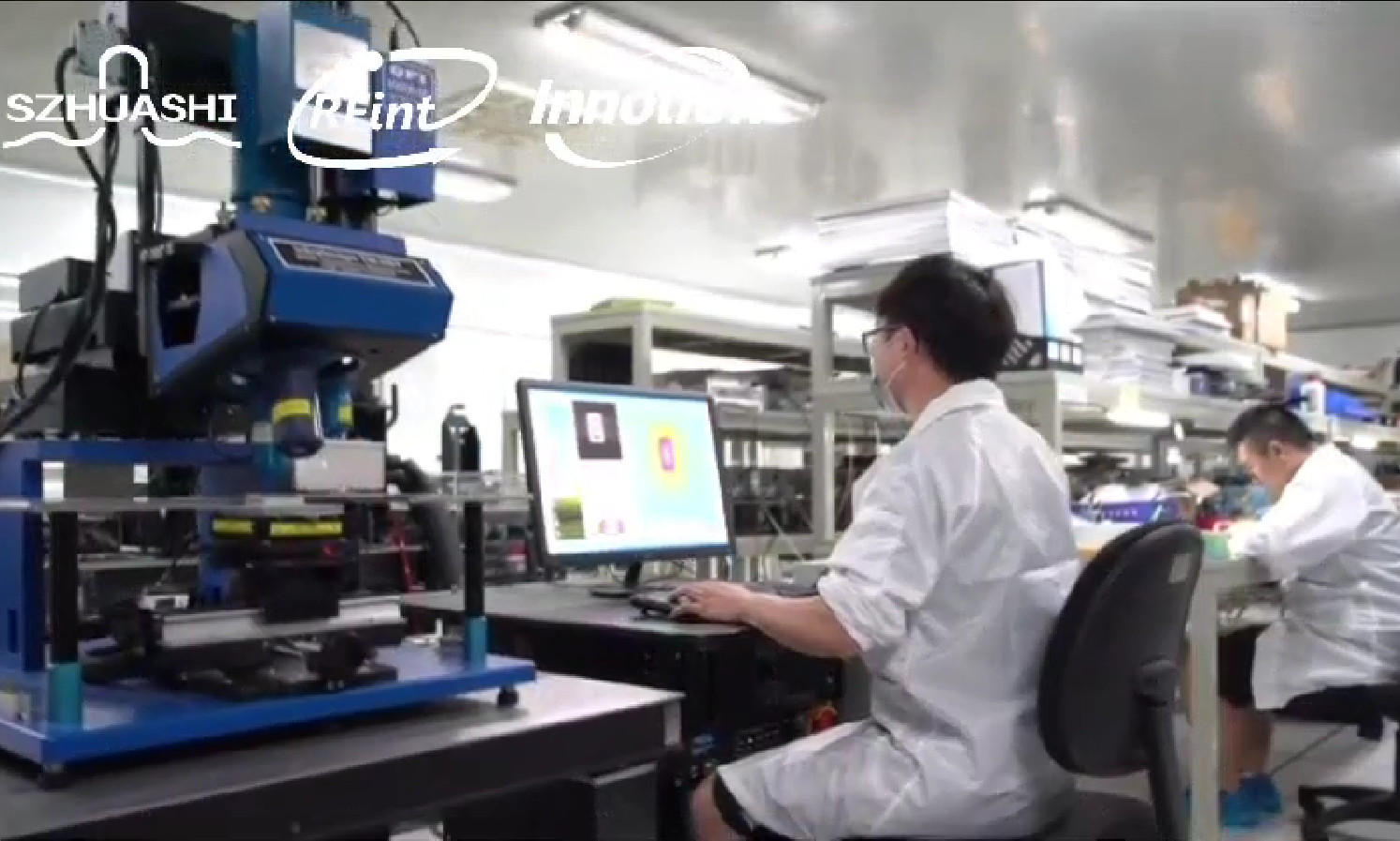

  SZHUASHI Wireless Technology Co., Ltd. is located in Suzhou Industrial Park. Founded in 2010. The only official shop on ! We sell our own products at the best price, such as WiFi amplifier, VCO, sweep signal source, wireless card group and other product lines;Professional people do professional things. We have mastered some core technologies in the product field and have a number of independent intellectual property rights. Our products have been sold to many domestic cities, but also very popular with many foreign customers, such as Russia, the United States, South Korea, Vietnam, Sweden and so on.
