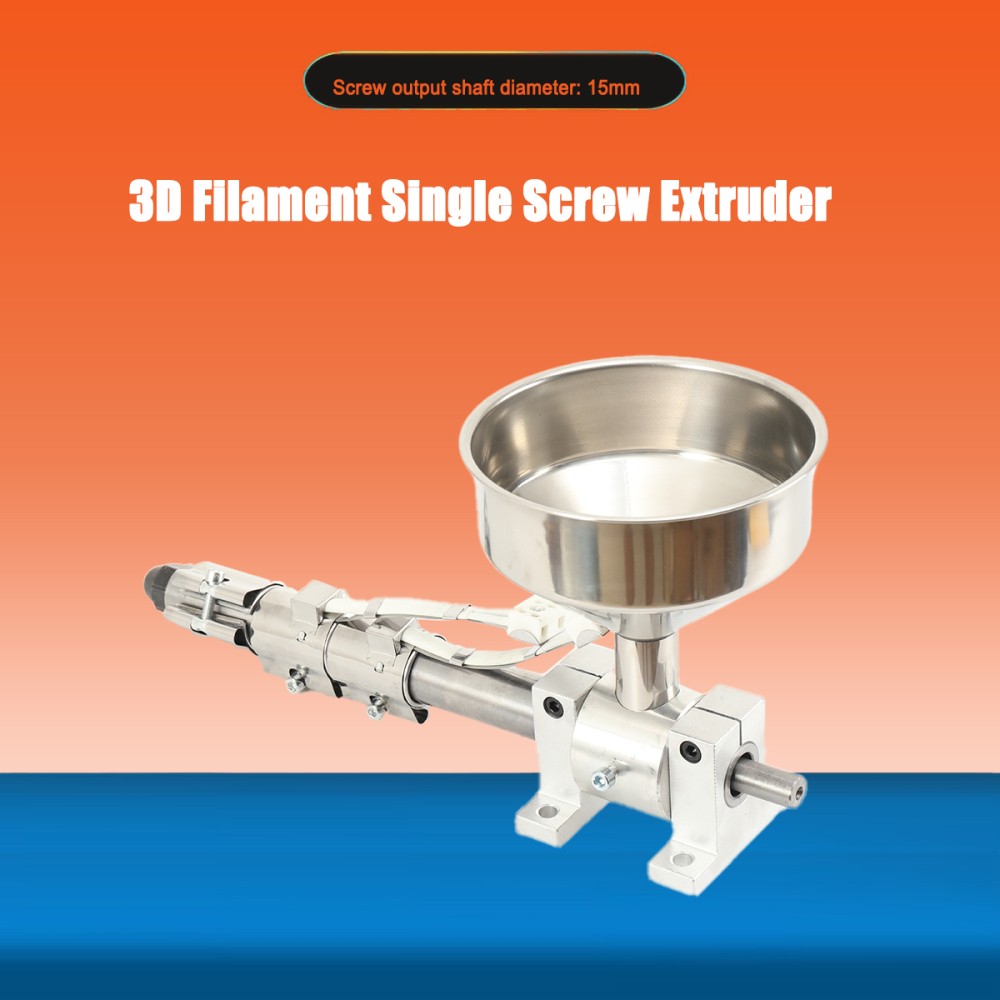

3D Filament Single Screw ExtruderDIY Plastic Extruder 110V 600W 300°C Description

Product Name:3D Filament Single Screw Extruder (Extruder Head Assembly)

• Voltage:110V

• Heating Power:200W × 3 coils = 600W total

• Heating Method:Ceramic heating coils

• Maximum Operating Temperature:300°C / 572°F (Do not exceed)

• Screw Sleeve Outer Diameter:30 mm

• Total Length:300 mm

• Inlet Diameter (Hopper Feed):28 mm

• Screw Output Shaft Diameter:15 mm

• Default Nozzle Aperture:2.5 mm

• Screw Diameter:20 mm

• Screw Length:330 mm

• Screw Material:45# steel – high temperature resistant

• Thermocouple Type:K-type (not included)

• Compatible Materials:PE, PP, PS, PVC, POM, PA, PC, ABS, and other thermoplastics

• Motor Requirements (Not Included):Speed > 50 RPM, Power > 200W, Torque > 15 Nm

Package includes Package Contents:

1 × 3D Filament Single Screw Extruder (Extruder Head Assembly)

1 × Hopper

(Motor, temperature controller, and thermocouple NOT included)

Important Safety Warnings:
⚠️ PLEASE READ CAREFULLY BEFORE USE:

Temperature Limit: This product has a maximum temperature resistance of 300°C / 572°F. Do not use without temperature control. Never operate at temperatures exceeding 300°C / 572°F – overheating will damage the unit and create a fire hazard.

Alignment Requirement: When installing the coupling, ensure the screw and motor shaft are properly aligned to prevent deviation, vibration, and potential screw damage.

Cold Start Prohibition: Never start the machine cold. Always ensure the sleeve temperature reaches the material melting point before starting the motor. Do not overfill the hopper during initial use to avoid excessive screw resistance and possible screw jamming.

Motor & Controller Not Included: This unit requires a separately purchased motor (speed > 50 RPM, power > 200W, torque > 15 Nm) and a K-type temperature controller for operation.

Professional Use Only: This equipment is intended for experienced users and professional/educational settings. Improper use may result in equipment damage, personal injury, or are manually measured – please allow a tolerance of 0–2 cm. This does not affect normal use or fit.

Slight colour variations may occur due to lighting and screen display. Please refer to the actual product received. Product Highlights Key Features:

Complete Extruder Head Assembly: Includes the single-shaft screw, 3× 110V ceramic heating coils (200W each), and a hopper – everything you need to build a filament extruder (motor and controller sold separately).

Powerful & Fast Heating: Three 200W ceramic heating coils provide rapid heating and easy wiring, allowing you to reach operating temperature quickly for efficient extrusion.

High-Temperature Resistant Screw: Made from 45# steel, the screw is heat-resistant and can be used safely up to 300°C / 572°F – compatible with a wide range of thermoplastics including PE, PP, PS, PVC, POM, PA, PC, and ABS.

DIY Friendly: This is the main accessory for a screw extruder. Simply prepare a K-type temperature controller and a motor (speed > 50 RPM, power > 200W, torque > 15 Nm) – you can easily assemble your own 3D filament extruder.

Compact & Versatile Design: The compact equipment is designed for experimental research, small-batch testing, and 3D consumables extrusion molding. Suitable for R&D labs, maker spaces, and small-scale production. Delivery Details Return Policy response Contact Us 1. We are not responsible for undeliverable address. We reserve the right to charge the shipping fee again for returned items due to wrong address.
