INCLUDING RACK EARS

EXCLUDING NETWORK CABLES

See photos for actual item!

Price is for 1 item.

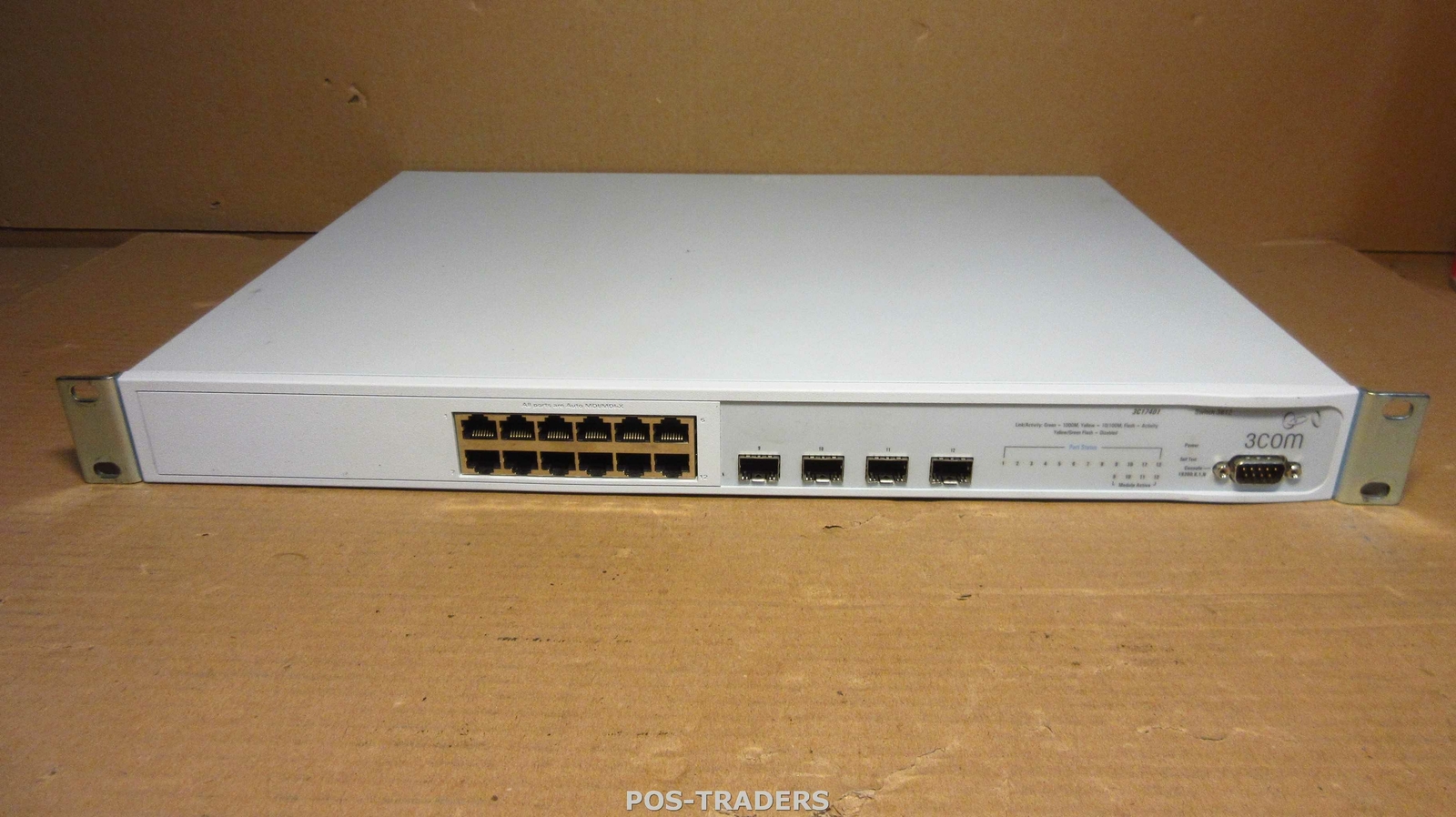

Model Brand 3com Model 3C17401Spec Standards IEEE 802.1D (STP)
IEEE 802.1p (CoS)
IEEE 802.1Q (VLANs)
IEEE 802.1w (RSTP)
IEEE 802.1X (Security)
IEEE 802.3ab (Copper Gigabit)
IEEE 802.3ad (Link Aggregation)
IEEE 802.3i (10BASE-T)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3x (Flow Control)
IEEE 802.3z (Fiber Gigabit) Jumbo Frames 9K packets Ports 12-port 10/100/1000 with four SFP ports (SFPs sold separately) Speed 10/100/1000Mbps MAC Address Table 16K MAC addresses
Secure MAC addresses (1,024 addresses) Buffer Memory 4MB Packet buffer memory Switching Method Store and Forward Security IEEE 802.1X user authentication:
RADIUS authentication
Secure mode (locks MAC address)

Packet Filtering:
Wirespeed packet filtering in hardware
Port-based Access Control Lists (ACLs)
Supports a maximum of 100 ACL rules per system (DSCP and TCP/UDP port-based CoS)
ACLs filter on source/destination IP address

Switch Management:
RADIUS management of switch passwords
Trusted IP management addresses
Telnet
SSH v1, v2 (56 bit DES)
SSL (HTTPS) VLAN Support 255 VLANs (IEEE 802.1Q) Power Input voltage 90-240 VAC autoranging
Operating frequency: 47-63 Hz
Maximum current: 1.2A
Maximum power: 148 W
Heat dissipation: 717 BTU Dimensions 17.3" x 12.7" x 1.7" Weight 8.2 lbs. Temperature 0ºC to 40ºC (32ºF to 104ºF) Humidity 10% - 90%, Non-condensing

Comes as shown on picture, if something is not on the picture it's not included unless stated otherwise
