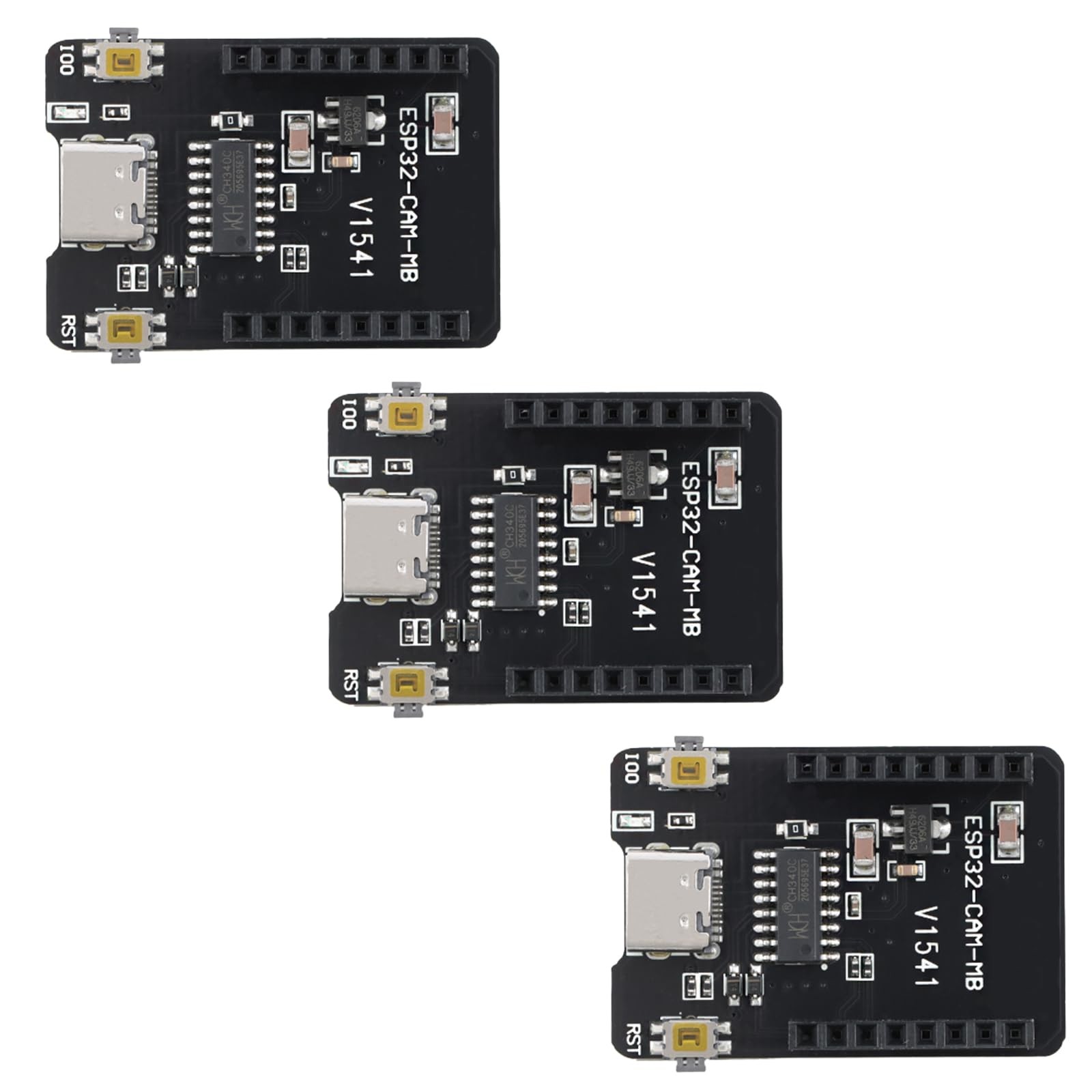

Product Parameters​​


​​Core Chip​​: ESP32-WROVER (240MHz dual-core) + CH340C (USB to TTL)


​​Input Voltage​​: DC 4.5V-36V (wide voltage, supports 12V/24V industrial power)


​​Logic Voltage​​: 3.3V ± 0.2V (LDO regulated, 500mA max current)


​​Communication Interface​​: USB Type-C (USB 2.0, 12Mbps full-speed) + UART (baud rate 9600-2Mbps)


​​Burn Control​​: One-key download circuit + physical BOOT/RESET buttons


​​Extension Interface​​: CAM header (OV2640/OV7670 compatible) + TF card slot (SPI mode, 32GB max)


​​Operating Temperature​​: -40°C ~ +85°C (Reliable)


​​Protection​​: Reverse connection protection + overcurrent protection (>600mA trigger)


​​Key Pin Functions​​


​​IN+​​: DC input positive (4.5V-36V, reverse connection protection)


​​GND​​: Power ground (must connect to external power common ground)


​​Type-C​​: USB communication (D+ to CH340 DP, D- to CH340 DM)


​​IO0​​: Download mode enable (low level = burn mode, high level = run mode)


​​RST​​: Reset control (low pulse triggers hard reset)


​​3V3​​: Regulated 3.3V output (500mA, do not external power!)


​​TXD​​: Serial data output (connect to ESP32-CAM RXD, TTL level)


​​RXD​​: Serial data input (connect to ESP32-CAM TXD)

​​FAQ​​

1.
​​Q: Burn failure (for Arduino IDE "Timed out")?​​

A: ① Check CH340 driver (COM port exists); ② Redo burn mode activation (hold BOOT >500ms); ③ Reduce baud rate to 115200bps.

2.
​​Q: Camera init failed (error 0x105/0x201)?​​

A: ① Short CAM_PWR jumper; ② Check cable direction (golden finger faces PCB front); ③ Set XCLK=20MHz in code.【High Compatibility and Wide Voltage Support】 ESP32-WROVER dual-core processor; 4.5V to 36V wide voltage input; Type-C USB interface; 3.3V regulated output; compatible with LabVIEW, MATLAB, and STM32
【Easy Firmware Programming and Debugging】 One-button burn mode activation; BOOT and RESET physical buttons; CH340C USB to serial chip; supports 9600-2Mbps baud rate; no need for external power supply
【Robust Industrial Grade Design】 -40°C to +85°C operating temperature; reverse polarity protection; overcurrent cutoff >600mA; M3 mounting holes for secure installation
【Integrated Camera and Storage Interface】 CAM socket supports OV2640/OV7670 cameras; 32GB TF card slot in SPI mode; dedicated CAM_PWR jumper for stable camera power; easy to set up real-time image transmission
【Clear Documentation and Reliable Performance】 Detailed setup guide included; no calibration drift issues; low power consumption in sleep mode; Suitable for IoT development, industrial monitoring, and embedded systems
