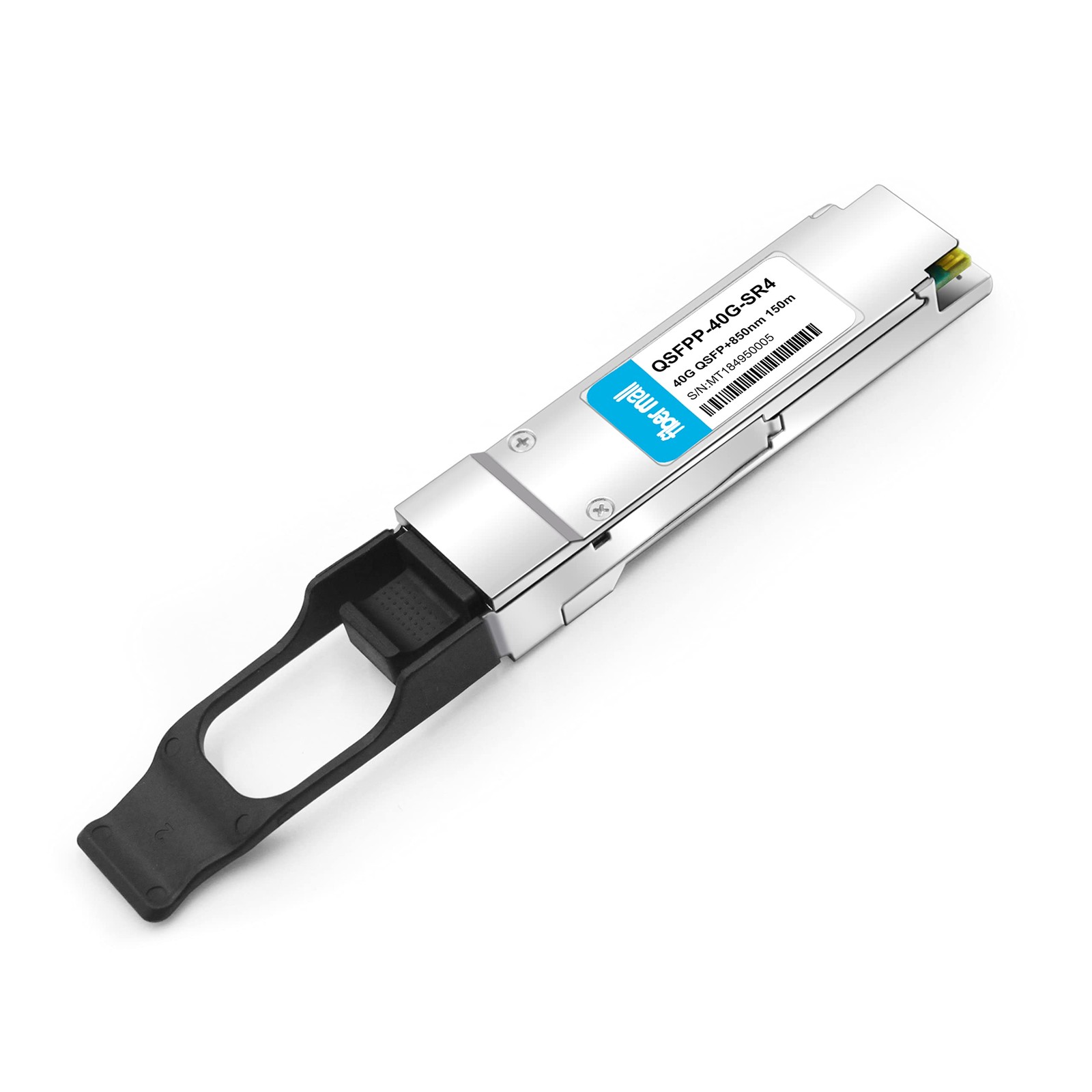

40G-QSFP-SR4-Ju is a 40Gb/sQSFP+ Optical transceiver module. It is used in 40gb Ethernet with links up to 150m over OM4 multimode fiber (MMF) at 850nm wavelength via a MTP/MPO connector. Besides, it is compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4 and breakout to 4x10GBASE-SR
Product Features
JuniperGenuine:QSFPP-40GBASE-SR4
Form Type: QSFP+
Max Data Rate: 40Gbps
4 independent full-duplex channels
Up to 11.2Gbps per channel bandwidth
Aggregate bandwidth of > 40Gbps
MTP/MPO optical connector
Digital diagnostic capabilities
Capable of over 100m transmission on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF
TX input and RX output CDR retiming
Built-in digital diagnostic functions
Temperature range: 0°C to 70°C
Applications
Rack to rack
Data centers
Metro networks
Switches and Routers
Infiniband 4x SDR, DDR, QDR
SR4 40G Ethernet
Breakout to 4 x 10GBASE-SR Ethernet
Juniper QSFPP-40GBASE-SR4is supported on a wide range of Juniper equipment.
QFX5200QFX10000
EX4300QFX3500
OCX1100Juniper Networks QFX5100-24Q-3AFI
Package
1*sfp dust cover
1 *pair 40GbpsSR4fiber transceiver module
1* package box
【QSFP+ 40G】Juniper 40Gigabit Ethernet, coding as Juniper transceiver module, 40Gbps, multi mode, 850nm, 150m, MTP/MPO connector, Four-channel full-duplex, Hot Pluggable, support DOM
【Protocols】 SATA/SAS3, IEEE 802.3ba, MSA Compliant
