CRD42

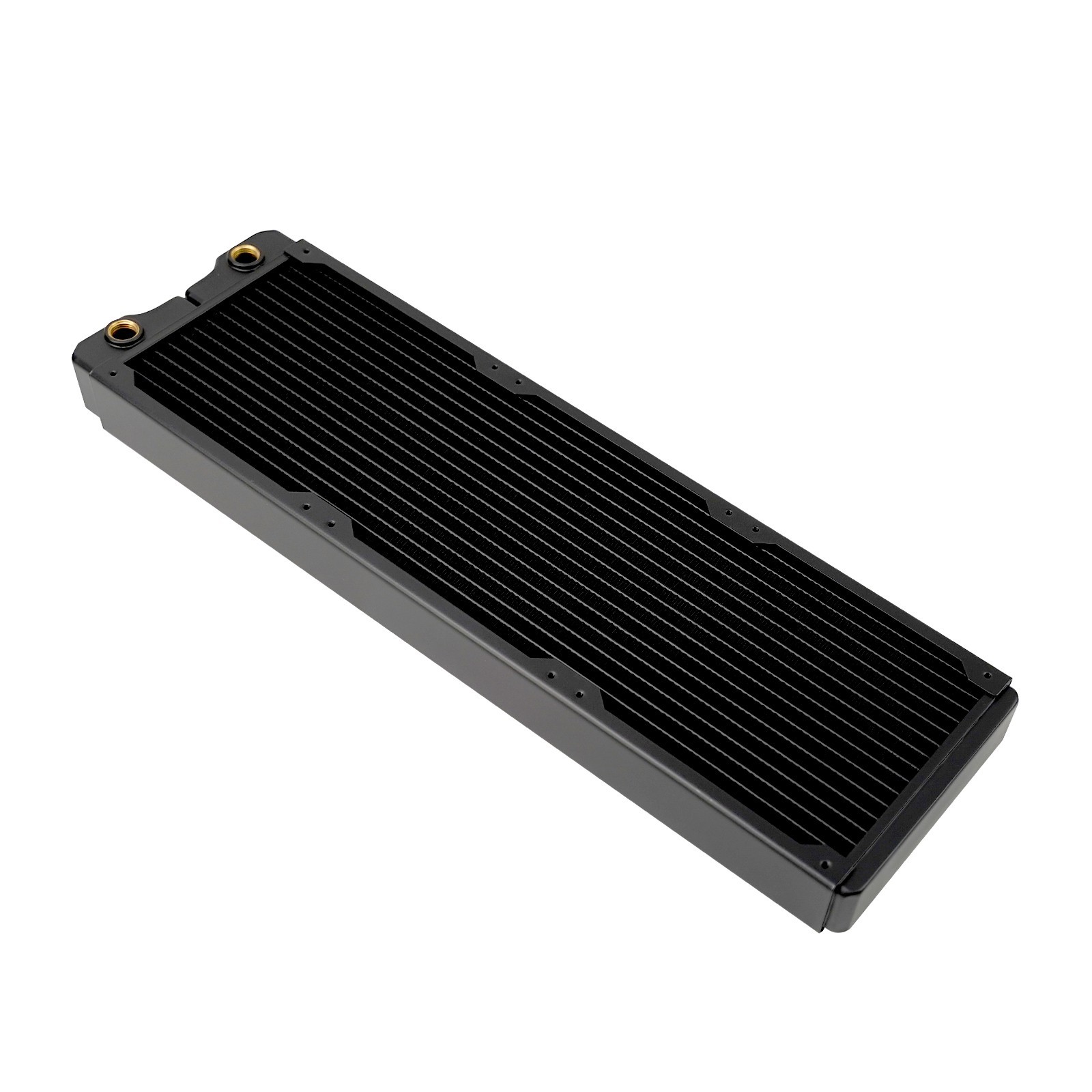

420mm Copper Water Cooling Radiator — 40mm Thick, 3x140mm Fan
205.34 dm² + 16 Waterways — Built for 140mm Fan in205.34 dm²
Cooling Area1,484g
3.27 lbs of Copper3x140mm
140mm Fan Support16 Waterways
vs 12 on 120mm SeriesKey Features📐205.34 dm² — 420mm of Pure Copper Cooling
Wider 140.5mm body + 420mm length = the largest cooling area in its class. Outperforms 360mm radiators by over 70%. Designed for triple 140mm fans — more airflow at lower RPM for quieter operation.
💧16 Waterways — Wider Body, More Channels
Unlike the 12-channel 120mm series, the 140mm-class CRD42 packs 16 precision water channels. The 140.5mm width allows for an extra 4 channels — translating to more even coolant distribution and lower flow resistance.
🌬140mm Fan Optimized — Quieter, More Airflow
Three 140mm fans move significantly more air than three 120mm fans at the same noise level. The wider 140.5mm radiator body fully captures the larger fan sweep — no wasted airflow, no dead zones at edges.
🔩40mm Steel Frame — Reinforced Structure
Thick 40mm steel frame provides rigidity for the wider 140.5mm body. Copper fins + brass water chambers with flow division. High-temperature integrated welding for a leak-proof single-piece structure.
🛠Complete Screw Kit Included
Unlike basic radiator kits, the CRD42 ships with 12x M3x30 fan screws AND 12x M3x6 radiator mounting screws — enough for push-pull configuration plus case mounting, right out of the box.
Technical (LxWxH)455 x 140.5 x 40 mm (17.91 x 5.53 x 1.57 in)Weight~1,483.8 g (3.27 lbs)MaterialCopper fins + brass chambers + steel frameConnectorG1/4 thread x 2 portsWaterways16 channelsHeat Dissipation Area~205.34 dm²Fan Support3 x 140mm fans (push-pull compatible)Color / FinishBlack / baked paintScrew Kit — What's IncludedScrew TypeQuantityUseM3 x 30mm (long, silver)12 pcsFan mounting (push-pull: 6 fans x 2 screws each)M3 x 6mm (short, black)12 pcsRadiator mounting to casePlease Note:Fittings, fans, tubing, and coolant are NOT included.⚠ Important Installation Warnings
- Screw Length:Must NOT exceed5mmpast fan surface. For push-pull 25mm fans, use the included M3 x 30mm screws. Punctured tubes NOT covered by warranty.
- Case Compatibility:Requires a case with native 420mm radiator support (3x140mm fan layout). Standard 360mm/120mm fan cases are NOT compatible. Measure your mounting area.
- Fan Compatibility:Designed for 140mm fans. 120mm fans will NOT align with mounting holes.
- Flush Before Use:Rinse with distilled water before first use to remove manufacturing residue.
140mm vs 120mm — Why Go Bigger?360mm (120mm Fans)420mm (140mm Fans)Fan Sweep Area~339 cm² per fan~462 cm² per fan (+36%)Airflow at 1000 RPM~50 CFM per fan~70 CFM per fan (+40%)Noise at Same CoolingBaseline3-5 dBA quieterBest ForStandard builds, most casesSilent builds, large cases, workstations
Dispatch TimeWithin 48 hours after payment clearedReturns30-day return. Buyer pays return shipping.
Building a silent high-performance rig with 140mm fans?
This is the radiator for you. Message us for bulk pricing!
est. 2003 | ISO 9001 | TUV Rheinland Verified | 30+ Patents | 50,000-unit Monthly Capacity
